Fix Your Suburban’s Electrical Headaches for Good
If you’re dealing with bizarre electrical issues in your 2007-2011 Chevrolet Suburban 1500, you’re not alone. A failing Body Control Module (BCM) is often the culprit behind everything from a dead instrument cluster to a car that won’t start. This isn’t just an annoyance; it’s a matter of safety and reliability. This OEM-quality replacement BCM, part number 20939138, is the definitive solution. We pre-program it to your vehicle’s specific VIN, so it arrives ready for a quick, hassle-free installation, getting you back on the road without an expensive trip to the dealership.
A Technician’s Notebook: The Grounding Gremlin
I once had a 2009 Suburban 1500 in my bay that was a diagnostic nightmare. The owner complained of flickering dash lights, the radio cutting out, and an intermittent no-start condition. He had already replaced the battery and alternator. After scanning, I found a dozen communication codes. The root cause? Not the BCM itself, but a corroded ground strap near the module’s location under the dash. After cleaning the ground and installing a new 2007-2011 Suburban BCM, all the gremlins vanished. It’s a 20-year lesson I share with every customer: when replacing a BCM, always inspect and clean your main body grounds. It can save you from a repeat failure.
Is Your Suburban Showing These Telltale Signs?
A faulty BCM can manifest in numerous ways. If you’re experiencing any of the following, it’s a strong indicator that your module needs replacement:
- ✔ Intermittent or non-functional power windows, door locks, or interior lights.
- ✔ The security system acts erratically, causing no-start or stalling issues.
- ✔ HVAC controls are unresponsive, or the blower motor works only sometimes.
- ✔ An airbag warning light is illuminated, often with a DTC like B1001 (Setup SDM Primary Key in BCM).
- ✔ Unpredictable warning messages on the driver information center (DIC).
- ✔ Communication loss codes (U-codes) stored in other modules.
A Straightforward Guide to BCM Installation
For most DIYers and professional techs, replacing the BCM is a simple job that takes just a few minutes. Here’s a quick guide to get it done right.
- Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- Locate the BCM: On your Suburban, the BCM is located under the driver’s side of the dashboard, typically to the left of the steering column.
- Remove the Old Module: Carefully unplug the electrical connectors. They have locking tabs, so be gentle. Once disconnected, unclip or unbolt the module from its bracket.
- Install the New BCM: Connect the electrical harnesses to your new, pre-programmed BCM. You’ll hear a click as they lock into place. Secure the module back onto its mounting bracket.
- Reconnect and Test: Reconnect the negative battery terminal. Start the vehicle and test all functions: lights, locks, windows, wipers, and HVAC to confirm the repair.
Verified Vehicle Compatibility

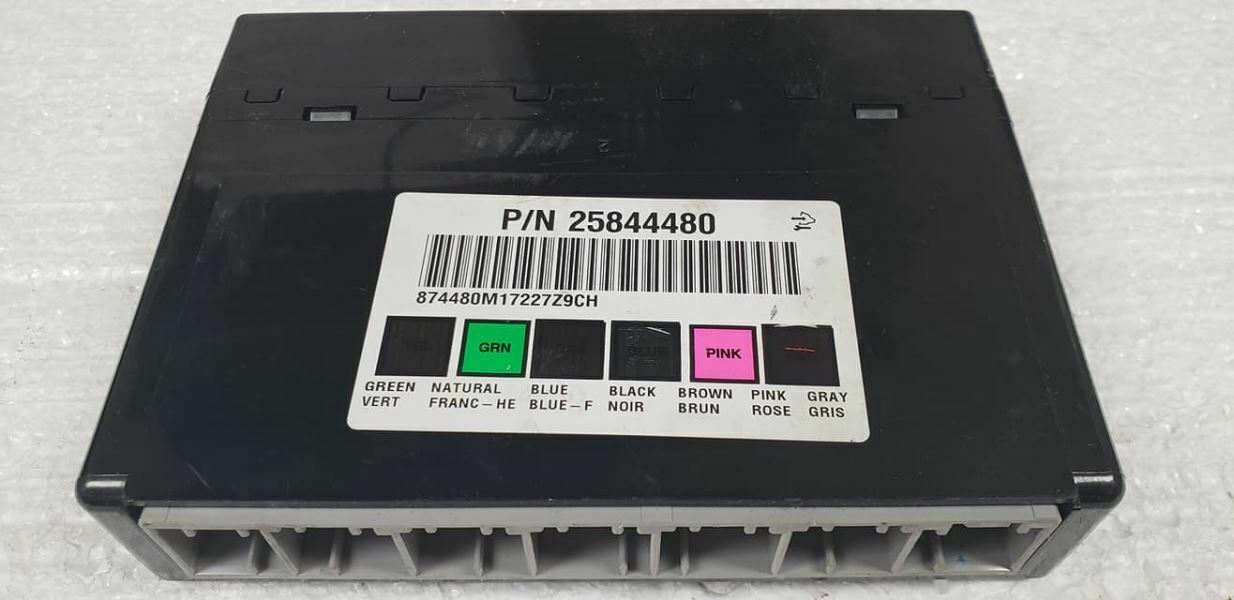

This module is a direct replacement for part number 20939138 and is interchangeable with several other part numbers, including 25844480, 25835966, 15943678, and 22860591. It provides guaranteed fitment for a wide range of GM trucks and SUVs, including:
CHEVROLET SILVERADO 1500/2500/3500 (2007-2013)
CHEVROLET SUBURBAN 1500/2500 (2007-2011)
CHEVROLET TAHOE (2007-2011)
GMC SIERRA 1500/2500/3500 & DENALI (2007-2013)
GMC YUKON & YUKON XL (2007-2011)
CADILLAC ESCALADE, ESV, EXT (2007-2011)
Always verify your part number or consult the detailed fitment list to ensure perfect compatibility.
Frequently Asked Questions
Do I need to have this BCM programmed by the dealer?
No. We pre-program the module to your vehicle’s VIN before shipping. It arrives ready for installation, saving you time and money.
What does ‘no core charge’ mean?
It means you don’t have to send your old, faulty BCM back to us. You can keep it or dispose of it yourself, simplifying the process.
My airbag light is on. Will this fix it?
This BCM will resolve faults originating from the module itself. However, if the airbag light remains on after installation (often with code B1001), you will need a professional scan tool to perform the ‘Setup SDM Primary Key in BCM’ procedure to sync the new BCM with the airbag system.
What tools are needed for the installation?
Typically, you’ll only need basic hand tools, like a socket wrench to disconnect the battery and possibly a trim removal tool for dash panels. The installation itself is plug-and-play.
Is a brake pedal position relearn necessary?
On some models, a brake pedal position sensor relearn may be required to ensure proper brake light and stability control function. This procedure can be performed with a compatible high-end scan tool.
