Fix Your Truck’s Electrical Gremlins for Good

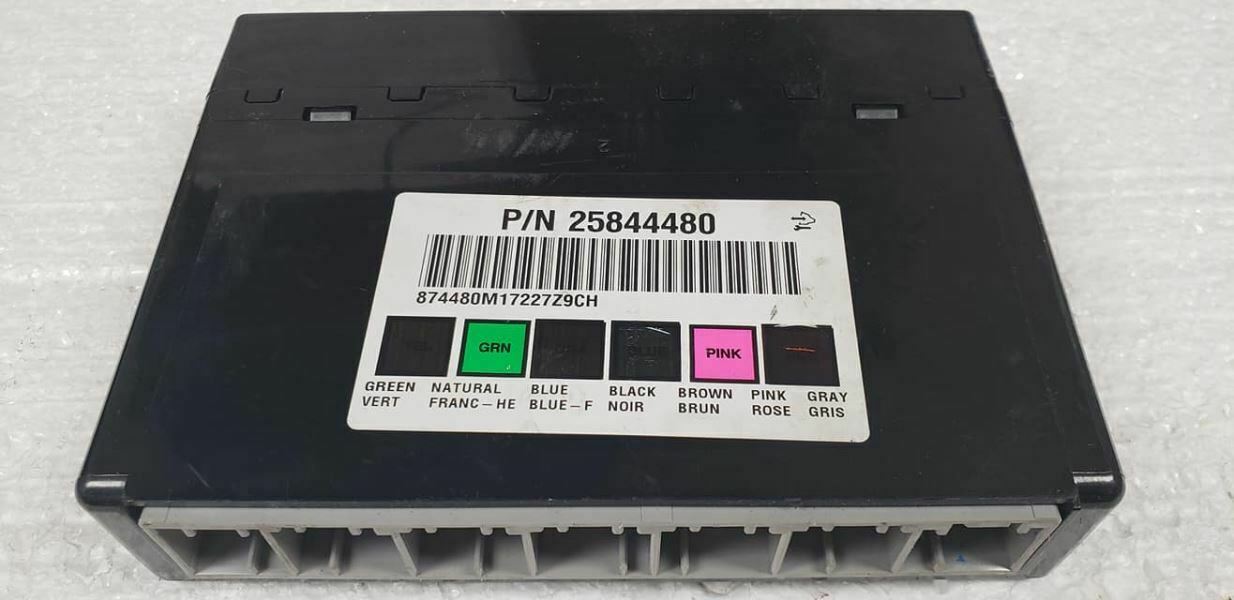

Are you chasing down bizarre electrical issues in your GM truck? One day the power windows don’t work, the next the A/C blower quits, and the security light is always on. As a technician with over two decades of experience, I’ve seen these frustrating symptoms hundreds of times. More often than not, the culprit is a failing Body Control Module (BCM). This module, part number 22860591 (interchangeable with 25844480 and others), is the central command for your truck’s body electronics. When it fails, it creates a cascade of problems that can seem unrelated and impossible to diagnose. This isn’t just a replacement part; it’s a permanent solution to restore your vehicle’s reliability and functionality.
We offer an expert Cloning Service that makes this repair straightforward. You simply send us your original BCM. We extract the unique data and transfer it directly to this replacement unit. This means the module arrives at your door fully programmed to your vehicle’s specific VIN and options. You get a true plug-and-play solution, eliminating the expensive and time-consuming trip to a dealership for programming. This is the most efficient way to get your 2007-2011 Silverado 1500 BCM replaced and your truck back to normal.
A Technician’s Notebook: The Misleading Ground Fault
I recall a 2009 Sierra that came into the bay with the owner convinced he had a major wiring short. The radio would cut out, the dome light would flicker, and the door locks were unresponsive. He had spent a weekend checking grounds with no luck. After a quick scan, I saw a handful of communication codes (U-codes) and a specific BCM internal fault, DTC B1001. The BCM was failing internally, creating voltage drops that mimicked a bad ground. We performed our cloning service on a replacement BCM, and the new module solved every single issue in under 10 minutes of installation time. It’s a classic case where the central component was the problem, not the miles of wiring.
Is Your GM Truck Showing These Symptoms?
- ✔ Erratic or non-functional power windows, door locks, or mirrors.
- ✔ Interior or exterior lights that won’t turn on or off.
- ✔ HVAC controls are unresponsive, or the blower motor works intermittently.
- ✔ The anti-theft or security system light is illuminated, sometimes causing a no-start condition.
- ✔ An airbag light is on, often with a diagnostic trouble code (DTC) like B1001.
- ✔ Wipers behaving strangely or not working at all.
A Straightforward Guide to Installation
Physically installing your cloned BCM is a simple job for any DIYer or professional. The entire process typically takes less than 15 minutes.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- Locate the BCM: On most GM trucks and SUVs of this era, the BCM is located under the driver’s side of the dashboard, near the steering column. It’s a black box with several large multi-pin connectors.
- Remove the Old Module: Carefully unplug the electrical connectors. They have locking tabs that need to be depressed. Once unplugged, the module can be unclipped or unbolted from its bracket.
- Install the New Module: Seat your newly cloned BCM into the mounting bracket and securely plug in all the electrical connectors. You should hear a ‘click’ as they lock into place.
- Reconnect and Test: Reconnect the negative battery terminal. Start the vehicle and test all body functions—lights, locks, windows, wipers, and HVAC—to confirm the repair was successful.
- Post-Install Checks: In some cases, a post-install procedure may be needed. If the airbag light remains on, a professional scan tool is required to perform the ‘Setup SDM Primary Key in BCM’ function. Some models may also require a ‘Brake Pedal Position Relearn’.
Will This Fit My Truck?
This BCM is a direct-fit replacement for a wide range of General Motors trucks and SUVs. While it is a perfect solution for a 2007-2011 Silverado 1500 BCM replacement, it also fits many other models. Please verify your part number or consult the list below. This module is interchangeable with part numbers 25835966, 15943678, 20939137, 22860591, and many more.
- Chevrolet: Avalanche 1500 (2007-2011), Silverado 1500/2500/3500 (2007-2013), Suburban 1500/2500 (2007-2011), Tahoe (2007-2011)
- GMC: Sierra 1500/2500/3500 (2007-2013), Sierra Denali (2007-2013), Yukon & Yukon XL (2007-2011)
- Cadillac: Escalade, Escalade ESV & EXT (2007-2011)
Note: Specific model years may have exceptions. Always match your part number for guaranteed compatibility.
Frequently Asked Questions
Frequently Asked Questions
How does the Cloning Service work?After you place your order, you will receive instructions to ship your original BCM to us. We use specialized equipment to read the VIN, mileage, and vehicle-specific option data from your module and write it directly onto the replacement unit. This makes it plug-and-play.
