Restore Control and End Electrical Frustration
Are you dealing with baffling electrical issues in your Cadillac Escalade EXT? One moment the power windows work, the next they don’t. The HVAC controls have a mind of their own, and a persistent airbag light is on your dash. These aren’t just annoyances; they’re classic signs of a failing Body Control Module (BCM). This module is the central command hub for your truck’s body electronics. When it falters, it can cause a cascade of problems. This replacement BCM, compatible with part number 15943678, is the definitive solution, arriving expertly programmed to your vehicle’s VIN for a seamless, plug-and-play fix.
Case Study: A Tricky Diagnosis
I remember a 2009 Escalade EXT that came into the shop with a laundry list of complaints from the owner. The radio would cut out, the driver’s side door lock was unresponsive, and the most concerning issue was an intermittent no-start condition. The owner had already replaced the battery and checked the alternator. After hooking up my scanner, I saw a network of communication codes and a specific DTC B1001 for the airbag system. In my 20+ years of experience, seeing unrelated systems fail simultaneously almost always points to one of two things: a major grounding problem or a failing BCM. After confirming the main grounds were solid, we pinpointed the BCM. A replacement, programmed module like this one had the truck running perfectly in under an hour, solving every single issue at once.
Is Your Escalade Showing These Symptoms?
A faulty BCM can manifest in numerous ways. If you’re experiencing any of the following, this module is likely the solution you need for your 2007-2011 Escalade EXT BCM.
- ✔ Power windows, door locks, or mirrors operating intermittently or not at all.
- ✔ Interior or exterior lights flickering, staying on, or failing to turn on.
- ✔ HVAC system issues, such as a blower motor that won’t run or unresponsive climate controls.
- ✔ An active airbag warning light, often accompanied by Diagnostic Trouble Code (DTC) B1001.
- ✔ Vehicle security system malfunctions, causing random alarm triggers or no-start conditions.
- ✔ Unexplained battery drain while the vehicle is parked.
- ✔ Erratic behavior from the windshield wipers.
A Straightforward Guide to Installation
One of the best features of this BCM is its simple installation. You don’t need to be a master mechanic to get this job done right in your own driveway. The entire process typically takes less than 15 minutes.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before working on any electronic components.

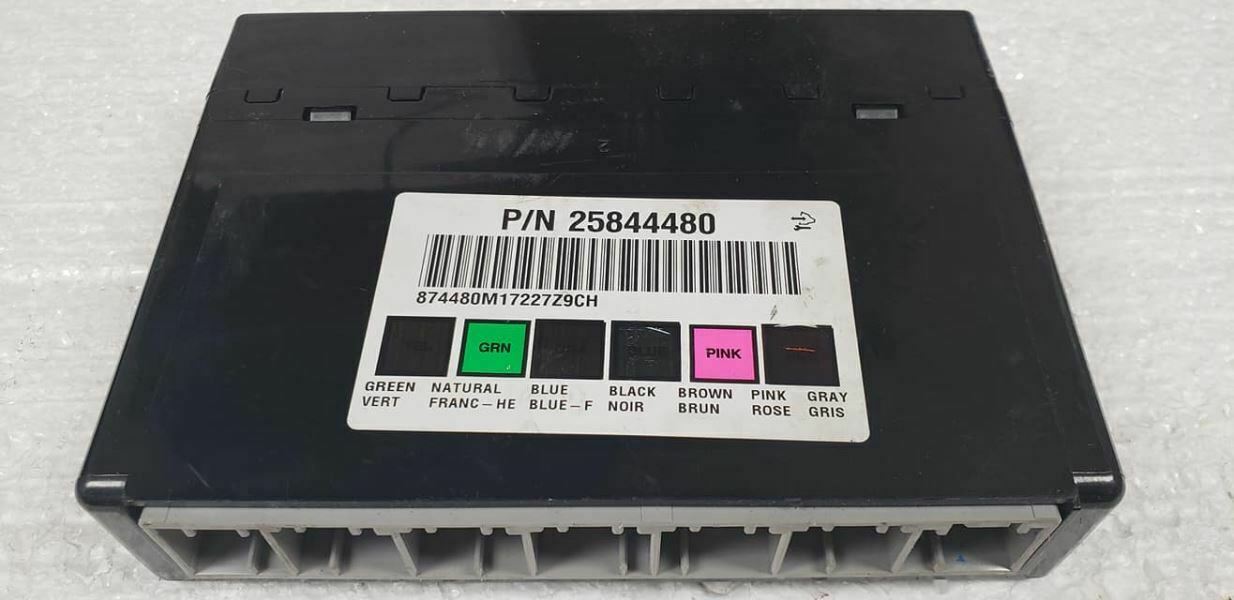

- Locate the BCM: On your Escalade EXT, the BCM is located under the driver’s side of the dashboard, near the steering column. It’s a black box with several large electrical connectors.
- Remove the Old Module: Carefully unplug the wiring harness connectors. They have release tabs that need to be pressed. Once unplugged, unclip or unbolt the old BCM from its mounting bracket.
- Install the New Module: Seat the new, VIN-programmed BCM into the mounting bracket and securely plug in all the wiring harnesses. You’ll hear a ‘click’ when they are properly seated.
- Reconnect and Test: Reconnect the negative battery terminal. Start the vehicle and test all functions: windows, locks, lights, wipers, and HVAC to confirm the repair.
Important Post-Installation Note: In some cases, particularly if you had an airbag light on, the system may need to be synced. This is done with a professional scan tool using the “Setup SDM Primary Key in BCM” function. A Brake Pedal Position relearn may also be required for full system harmony. And remember, there’s no core charge—you can keep your old part!
Verified Vehicle Compatibility
This module is a direct replacement for part number 15943678 and other interchangeable numbers. It is guaranteed to fit the following vehicles, among others in the GM family:
ESCALADE ESV 07-11 Body Control (BCM); (under steering column)
ESCALADE EXT 07-11 Body Control (BCM); (under steering column)
AVALANCHE 1500 07-11 Body Control (BCM); (under steering column)
SIERRA 1500 PICKUP 07-11 Body Control (BCM); (new style or standard)
SIERRA 2500 PICKUP 07-11 Body Control (BCM); (new style or standard)
SIERRA 3500 PICKUP 07-11 Body Control (BCM); (new style or standard)
SIERRA DENALI 07-11 Body Control (BCM); (new style or standard)
SILVERADO 1500 PICKUP 07-11 Body Control (BCM); (new style or standard)
SILVERADO 2500 PICKUP 07-11 Body Control (BCM); (new style or standard)
SILVERADO 3500 PICKUP 07-11 Body Control (BCM); (new style or standard)
SUBURBAN 1500 07-11 Body Control (BCM); (under steering column)
SUBURBAN 2500 07-11 Body Control (BCM); (under steering column)
TAHOE 07-11 Body Control (BCM); (under steering column)
YUKON 07-11 Body Control (BCM); (under steering column)
YUKON XL 1500 07-11 Body Control (BCM); (under steering column)
YUKON XL 2500 07-11 Body Control (BCM); (under steering column)
Frequently Asked Questions
What exactly does the Body Control Module do?
The BCM is like the body’s brain for your vehicle. It controls non-engine related functions, such as your power windows, interior and exterior lighting, door locks, security system, climate controls, and wipers. When it fails, these systems can become unreliable.
Is this part really plug-and-play?
Yes. We program the module to your vehicle’s specific VIN before shipping. This ensures it communicates correctly with your truck’s other electronic systems right out of the box, eliminating the need for expensive dealership programming.
What if my airbag light is still on after I install this BCM?
If the airbag light remains on, it means the new BCM needs to be electronically ‘introduced’ to the airbag system’s computer (SDM). This requires a professional scan tool to perform the ‘Setup SDM Primary Key in BCM’ procedure. This is a quick process for any qualified repair shop.
Will this fix a parasitic battery drain?
In many cases, yes. A faulty BCM can fail to ‘go to sleep’ when the vehicle is off, causing a slow but steady drain on the battery. Replacing a defective 2007-2011 Escalade EXT BCM is a common fix for this issue.
Do I need to send my old BCM back?
No. We do not require a core return for this part. There is no core charge, so you can simply discard or keep your old module, saving you time and hassle.
