Restore Control and End Electrical Frustration
If you’re battling bizarre electrical problems in your Cadillac, Chevrolet, or GMC truck or SUV, you’re not alone. From flickering lights and a dead HVAC system to power windows that have a mind of their own, these issues often point directly to a failing Body Control Module (BCM). As the central command for your vehicle’s body electronics, a faulty BCM can turn a reliable vehicle into a source of constant headaches. This replacement BCM, part number 20939138, is the definitive solution, arriving pre-programmed to your vehicle’s VIN for a true plug-and-play repair that gets you back on the road without a mandatory trip to the dealership.
Is Your GM Truck or SUV Showing These Signs?
Over my 20 years in diagnostics, I’ve seen how a single failing module can mimic a dozen different problems. Before you start chasing wires, check if your vehicle is experiencing these classic BCM failure symptoms:
- ✔ The air conditioning or heater blower works intermittently or not at all.
- ✔ Your power windows, door locks, or interior/exterior lights are behaving erratically.
- ✔ An airbag warning light is illuminated on the dash, often with a diagnostic trouble code (DTC) like B1001.
- ✔ The security system is malfunctioning, potentially causing no-start or stalling conditions.
- ✔ You’re getting a host of seemingly unrelated communication codes (U-codes) or body codes (B-codes).
- ✔ Wipers won’t turn on, or won’t turn off.
A Technician’s Notebook: The Grounding Gremlin
I remember a 2009 Silverado 2500 that came into the bay with a textbook case of BCM failure—the radio would cut out, the dome light would flicker, and the door locks were sporadic. The customer had already bought a module elsewhere, but the problems persisted. After a quick check, I found the issue wasn’t the module itself, but the main BCM ground point on the A-pillar. It was corroded from a minor windshield leak. We cleaned the contact point, secured the ground, and all the problems vanished. This is why I always tell my customers: when you replace your BCM, take an extra 60 seconds to inspect and clean the main ground connection. It’s the best preventive measure you can take to ensure your new module performs flawlessly for years to come.
Your 5-Minute Path to a Perfect Fix
Replacing the 2007-2011 Escalade ESV BCM is a straightforward job that most DIYers can handle in their own driveway. Because we pre-program the module to your specific VIN, you get to skip the expensive and time-consuming programming session at a service center.
- Step 1: Safety First. Always disconnect the negative terminal from your vehicle’s battery before working on any electronic components.
- Step 2: Locate the BCM. On most compatible GM models, you’ll find the BCM located under the driver’s side of the dashboard, near the steering column. It’s often mounted to a metal bracket.
- Step 3: Disconnect and Remove. Carefully unplug the electrical connectors from the old module. They have locking tabs that need to be depressed. Once disconnected, unbolt or unclip the old BCM and remove it.
- Step 4: Install the New Module. Mount your new, pre-programmed BCM in the same location and securely reconnect all electrical connectors. You should hear a ‘click’ as they lock into place.
- Step 5: Reconnect and Test. Reconnect the negative battery terminal. Start the vehicle and test all functions—lights, windows, locks, HVAC, and wipers—to confirm the repair was successful.
Important Post-Installation Note: In some cases, particularly if you had an airbag light on, a final sync procedure may be needed. If the airbag warning light remains on, a professional scan tool is required to perform the “Setup SDM Primary Key in BCM” function. Similarly, a Brake Pedal Position relearn might be necessary on certain models to ensure perfect brake light and stability control operation. And remember, there is absolutely no core charge—you can keep or discard your old part.
Verified Fitment for Your General Motors Vehicle

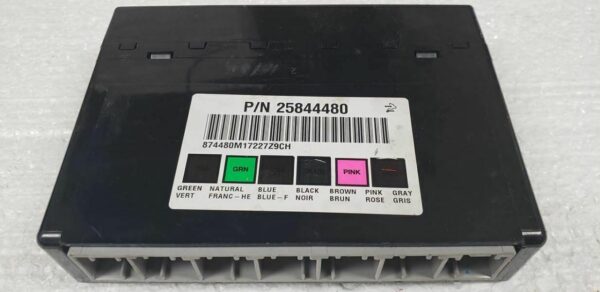

This module is a direct replacement for part number 20939138 and interchanges with several other part numbers including 25844480, 25835966, 15943678, and 22860591. It is confirmed to fit the following vehicles:
ESCALADE ESV 07-11
ESCALADE EXT 07-11
AVALANCHE 1500 07-11
SILVERADO 1500 PICKUP 07-11
SILVERADO 2500 PICKUP 07-11, 13
SILVERADO 3500 PICKUP 07-11, 13
SUBURBAN 1500 07-11
SUBURBAN 2500 07-11
TAHOE 07-11
SIERRA 1500 PICKUP 07-11
SIERRA 2500 PICKUP 07-11, 13
SIERRA 3500 PICKUP 07-11, 13
SIERRA DENALI 07-10
SIERRA DENALI 1500 11
SIERRA DENALI 2500 11, 13
SIERRA DENALI 3500 11, 13
YUKON 07-11
YUKON XL 1500 07-11
YUKON XL 2500 07-11
Frequently Asked Questions
Frequently Asked Questions
What does ‘VIN Programmed’ actually mean for me?
It means we load your vehicle’s specific Vehicle Identification Number (VIN) and all associated factory software onto the module before we ship it. This ensures it communicates perfectly with your vehicle’s other computers right out of the box, eliminating the need for dealership programming.
Do I need any special tools for installation?
For the physical installation, you’ll likely only need basic hand tools like a socket set to access the module under the dash. However, as noted, if the airbag light persists after installation, a high-level diagnostic scan tool is needed to perform the SDM key sync procedure.
Will this fix my ‘Service Airbag’ message and B1001 code?
Yes, a faulty BCM is a very common cause of a false airbag warning and the B1001 code. Replacing the BCM and performing the SDM key sync procedure (if necessary) is the correct repair for this condition.
Is there a core charge for this part?
No. We do not require you to send your old BCM back. There is no core charge, making the transaction simple and hassle-free.
How do I know if this is the right part for my truck?
The best way is to match the part number from your original module. This module replaces part number 20939138 and many others listed in the description. You can also use our vehicle selector tool or contact our expert support team with your VIN to guarantee a perfect match.
