Is Your Jeep Patriot Experiencing Mysterious Electrical Problems?
If you’re dealing with a 2007-2010 Jeep Patriot that’s running rough, stalling unexpectedly, or throwing a frustrating array of unrelated dashboard lights, the root cause is often the very brain of your vehicle: the Engine Control Module (ECM). As a technician with over two decades of experience under the hood, I’ve seen firsthand how a failing ECM can mimic a dozen other problems, leading to wasted time and money on incorrect repairs. This isn’t just an inconvenience; it’s a reliability issue that can leave you stranded. You need a dependable solution that gets your Patriot, Compass, or Caliber back to factory performance without the dealership hassle.

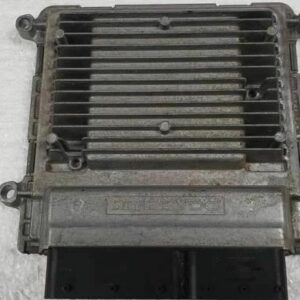

This is a direct-fit replacement 2007-2010 Patriot Engine Computer, engineered to solve those complex issues. The best part? We handle the complicated part for you. Before this module ships, it is professionally programmed to your vehicle’s specific VIN and mileage. This means it arrives at your door ready for a true Plug & Play installation. No need for expensive scan tools or a trip to the dealer for programming. You’re getting a straightforward, reliable fix that restores communication between your engine, transmission, and other critical systems.
From the Diagnostic Bay: The Case of the Confusing Caliber
A few months back, a 2009 Dodge Caliber (which shares this exact ECM with the Patriot) came into my shop on a tow truck. The owner was frustrated. He’d already replaced the alternator and battery, but the car would randomly stall, the throttle body light would flicker, and he had codes for everything from the transmission to the O2 sensors. My initial scan showed a mess of communication errors (U-codes) and a persistent P0601: Internal Control Module Memory Check Sum Error. That P0601 code is the smoking gun for a failing processor inside the ECM itself. The module’s internal memory was corrupted, causing it to send garbage data across the vehicle’s network. We installed one of these pre-programmed units, and it was like flipping a switch. All the phantom codes vanished, the engine idled perfectly, and the customer drove away with a car that felt new again. This is a classic failure I’ve diagnosed hundreds of times on this platform.
Common Signs of a Failing Engine Computer
- âś” Check Engine Light is on with codes like P0601, P0606, or other communication faults (U-codes).
- âś” The engine cranks but refuses to start.
- âś” Poor or erratic automatic transmission shifting.
- âś” A noticeable drop in fuel economy for no apparent reason.
- âś” Stalling, stumbling, or rough idling issues.
- âś” Multiple, unrelated warning lights appearing on the instrument cluster.
- âś” The cooling fans run constantly or not at all.
A Straightforward Guide to Installation
- âś” Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait 10-15 minutes for the system capacitors to discharge.
- âś” Locate the ECM: On the Jeep Patriot and Compass, the ECM is typically located in the engine bay, mounted to the firewall or inner fender. On the Dodge Caliber, it’s often found behind the driver’s side front wheel well liner.
- âś” Disconnect the Connectors: Carefully release the locking tabs on the wiring harness connectors and pull them straight out from the module. Avoid pulling on the wires themselves.
- âś” Remove the Module: Unbolt the old ECM from its mounting bracket. It’s usually held in place by a few 8mm or 10mm bolts.
- âś” Install the New ECM: Mount your new, pre-programmed ECM in the same location and secure the bolts.
- âś” Reconnect Everything: Plug the wiring harnesses back into the new module until they click securely into place. Reconnect your negative battery terminal.
- âś” Final Step: Start the engine and let it idle for a few minutes. Your vehicle is now ready to drive!
Verified Vehicle Compatibility
This module is a guaranteed fit for the following vehicles. It replaces a wide range of original part numbers, including 05150471AA, 68043260AD, 68028201AC, and many more, ensuring you get the right part the first time. Please match your vehicle from the list below.
- 2007-2010 JEEP PATRIOT (Electronic Control Module)
- 2007-2010 JEEP COMPASS (Electronic Control Module)
- 2007-2008 DODGE CALIBER (Electronic Control Module)
- 2009 DODGE CALIBER (Electronic Control Module; 1.8L)
- 2009 DODGE CALIBER (Electronic Control Module; 2.0L, gasoline)
- 2009 DODGE CALIBER (Electronic Control Module; 2.4L, engine opt ED3)
- 2010 DODGE CALIBER (Electronic Control Module; 2.0L)
- 2010 DODGE CALIBER (Electronic Control Module; 2.4L)
Frequently Asked Questions
Do I need to do any programming after I install this?
No. This engine computer comes fully programmed to your vehicle’s VIN and mileage. It is a 100% Plug & Play solution, ready for installation right out of the box.
What information do you need from me?
We will need your vehicle’s 17-digit Vehicle Identification Number (VIN) and the current mileage to program the module correctly. You can typically find the VIN on your dashboard (visible through the windshield) or on your vehicle’s registration.
Will this fix my check engine light?
If the check engine light is caused by an internal failure of the ECM (common codes include P0601, P0606), then yes, this part is the correct fix. It is crucial to properly diagnose the vehicle first to ensure the ECM is the faulty component.
Is this a difficult part to install myself?
For most DIY enthusiasts with basic hand tools, this is a very manageable job. The most important steps are disconnecting the battery and carefully handling the wiring connectors. Since no programming is required, it’s one of the easier electronic components to replace.
How do I know if my part number is compatible?
This unit, 68044228AA, is a direct replacement for a long list of factory part numbers. If your vehicle is listed in our compatibility chart, this module will work for you, even if the number on your original part is different.
