Is Your Cadillac SRX Shifting Erratically?
If you’re experiencing harsh shifting, delayed gear engagement, or seeing a ‘Service Transmission’ light on your dash, a failing Transmission Control Module (TCM) is the most likely culprit. This vital component is the brain of your automatic transmission, responsible for controlling shift points, line pressure, and torque converter lockup. When it begins to fail, it can leave your 2007, 2008, or 2009 Cadillac SRX feeling unpredictable and unsafe to drive. Don’t let a faulty module sideline your luxury SUV. This direct-fit replacement TCM, part number 24239785, is the definitive solution to restore your vehicle’s performance and peace of mind.
We had a 2008 SRX come into the shop with a classic complaint: intermittent harsh 1-2 upshifts and a P0700 transmission control system malfunction code. The customer had already replaced the fluid and filter, with no improvement. Initial diagnostics pointed towards a possible internal transmission issue, but experience told us to look closer at the electronics. We checked the wiring harness to the TCM, located in the right-front of the engine compartment, and found no visible damage. After connecting our scan tool, we noticed erratic data readings from the TCM itself, even when the vehicle was stationary. We swapped in a known-good, VIN-programmed module, and the problem vanished instantly. The original module had developed an internal fault due to years of heat cycles and vibration. It’s a textbook example of why you should always suspect the module before condemning the entire transmission, which can save you thousands of dollars in unnecessary repairs.
Symptoms of a Failing 2007-2009 SRX Transmission Module
A failing TCM can manifest in various ways, often starting as intermittent issues before becoming a constant problem. If you notice any of the following symptoms, it’s time to inspect your transmission module. Ignoring these signs can lead to further damage to your transmission’s mechanical components.
- ✔ Unpredictable or harsh shifting between gears
- ✔ Getting stuck in one gear (limp mode)
- ✔ Delayed engagement when shifting from Park to Drive or Reverse
- ✔ Check Engine Light or Transmission Warning Light illumination
- ✔ Diagnostic Trouble Codes (DTCs) such as P0700, U0101, or other transmission-related codes
- ✔ Poor fuel economy due to inefficient shifting
- ✔ Inaccurate gear indicator on the dashboard
Plug-and-Play Solution, No Dealer Visit Required
The biggest hurdle when replacing a modern vehicle module is the need for expensive, dealer-specific programming. We eliminate that step entirely. This 2007-2009 SRX Transmission Module arrives at your door fully programmed to your vehicle’s specific Vehicle Identification Number (VIN). We flash it with the latest GM-certified software updates, ensuring optimal performance and compatibility. This means no extra trips to the dealership, no towing fees, and no costly programming appointments. The process is simple:
- Place your order for part number 24239785.
- Provide us with your vehicle’s 17-digit VIN during checkout or via email.
- Our technicians will program the module specifically for your SRX.
- We ship the ready-to-install module directly to you.

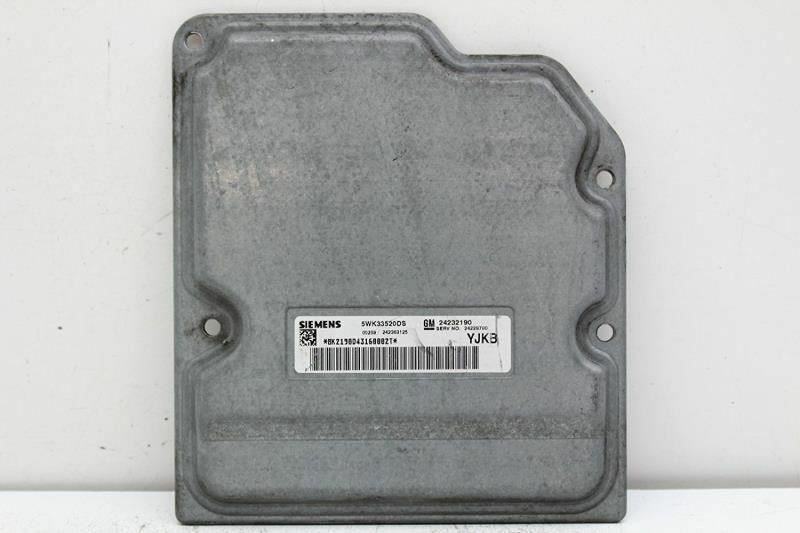

This unit is a direct replacement for part numbers 24235224, 24239785, and YLMU, ensuring a perfect fit and function for your Cadillac SRX, as well as other compatible GM vehicles like the STS, CTS, Solstice, and Sky. Installation is straightforward for a qualified mechanic; the module is located in the right-front of the engine compartment. Simply disconnect the battery, unplug the old module, install the new one, and reconnect the battery. Your vehicle’s transmission will be back to operating as the factory intended.
Frequently Asked Questions
What exactly does a Transmission Control Module (TCM) do?
The TCM is a computer that processes data from various sensors on your engine and transmission. It uses this information to control exactly when the transmission shifts gears, ensuring a smooth and efficient ride. It’s essential for both performance and fuel economy.
Is this part difficult to install?
The physical installation is relatively simple for someone with mechanical experience. It involves disconnecting the battery, locating the module in the engine bay, and swapping the electrical connectors. However, since it’s a critical electronic component, we always recommend installation by a professional technician if you are not comfortable with automotive electrical work.
Do I really need to provide my VIN?
Yes, absolutely. Providing your VIN is critical. Every vehicle has slight variations in its software based on options and build date. We use your VIN to load the exact correct software and calibration files onto the module, making it a true plug-and-play part for your specific car. Without the VIN, the module will not communicate correctly with your vehicle’s other computers.
Will this fix my ‘limp mode’ issue?
If the ‘limp mode’ (being stuck in one gear) is caused by a faulty TCM, then yes, this part is the correct solution. Limp mode is a protective measure the vehicle takes when it detects a serious transmission control fault. This programmed replacement module will restore proper communication and control, resolving the issue.
What if I have a different part number?
This module, 24239785, is also a direct replacement for part numbers 24235224 and YLMU. If your original module has one of these numbers, this part is compatible and will work correctly once programmed to your VIN.
