Restore Safe Towing with a Reliable, Programmed TBCM
Is the dreaded “SERVICE TRAILER BRAKE SYSTEM” message illuminated on your dash? Are you experiencing intermittent or non-existent trailer brake operation? These are more than just annoyances; they are serious safety concerns. When you’re hauling a heavy load, you depend on your trailer’s brakes to work in perfect sync with your truck. A faulty Trailer Brake Control Module (TBCM) compromises that safety, putting you, your cargo, and others at risk. Over my 20+ years in automotive diagnostics, I’ve seen countless TBCMs fail, often due to their exposed location on the frame rail where they are vulnerable to water, salt, and corrosion. This leads to internal short circuits and communication failures with the rest of the vehicle’s network.
This isn’t just a replacement part; it’s a complete, ready-to-install solution. We take the guesswork and extra cost out of the repair by pre-programming this genuine GM-spec 2007-2009 Sierra 2500 TBCM to your truck’s specific Vehicle Identification Number (VIN). This means no expensive trip to the dealership for programming. Once it arrives, you can install it directly, clear any related trouble codes, and have your integrated trailer brake system functioning correctly again. It’s the most efficient way to restore the factory towing performance and safety your GM truck was designed to deliver.
A Technician’s Notebook
I remember a customer with a 2008 Silverado 2500 who was at his wit’s end. His trailer brakes would work one day and not the next. He’d already replaced the 7-pin connector at the bumper, thinking it was a simple wiring issue. When he brought it to my shop, the scan tool showed intermittent communication loss with the TBCM (a U0146 code). Instead of just throwing a part at it, we put it on the lift. The module, located on the driver-side frame rail, looked fine externally. However, after removing it and shaking it, you could hear a faint sloshing sound. Water had found its way past the seals over the years, corroding the circuit board from the inside out. Installing a VIN-programmed module like this one had him safely back to the job site in under an hour, without the hassle of a dealership visit.
Common Signs of a Failing TBCM
- ✔ “SERVICE TRAILER BRAKE SYSTEM” message on the Driver Information Center (DIC).
- ✔ No power output to the trailer’s electric brakes.
- ✔ Trailer brakes apply too aggressively or not at all.
- ✔ The manual override lever/switch on the dash has no effect.
- ✔ Diagnostic Trouble Codes (DTCs) such as C0561, U0146, or other communication-related faults.
- ✔ Intermittent connection and disconnection alerts when a trailer is hooked up.
A Straightforward Guide to Installation
- ✔ Safety First: Disconnect the negative terminal from your truck’s battery to prevent any electrical shorts.
- ✔ Locate the Module: Find the TBCM mounted on the outside of the driver-side frame rail, typically located towards the rear of the truck, near the spare tire.
- ✔ Disconnect Connectors: Carefully press the release tabs and unplug the electrical connectors from the old module. Inspect the connectors for any corrosion or damage and clean if necessary.
- ✔ Remove the Old Module: Unbolt the module from the frame. It’s usually held on by two or three bolts. Keep the hardware as you will reuse it.
- ✔ Install the New Module: Mount your new, pre-programmed TBCM onto the frame using the original hardware.
- ✔ Reconnect Everything: Securely plug the electrical connectors into the new module. You should hear a click. Reconnect the negative battery terminal.
- ✔ Final Check: Start the truck. The “Service Trailer Brake System” message should be gone. If possible, connect a trailer to verify that the brakes are operating correctly.
Verified Vehicle Compatibility

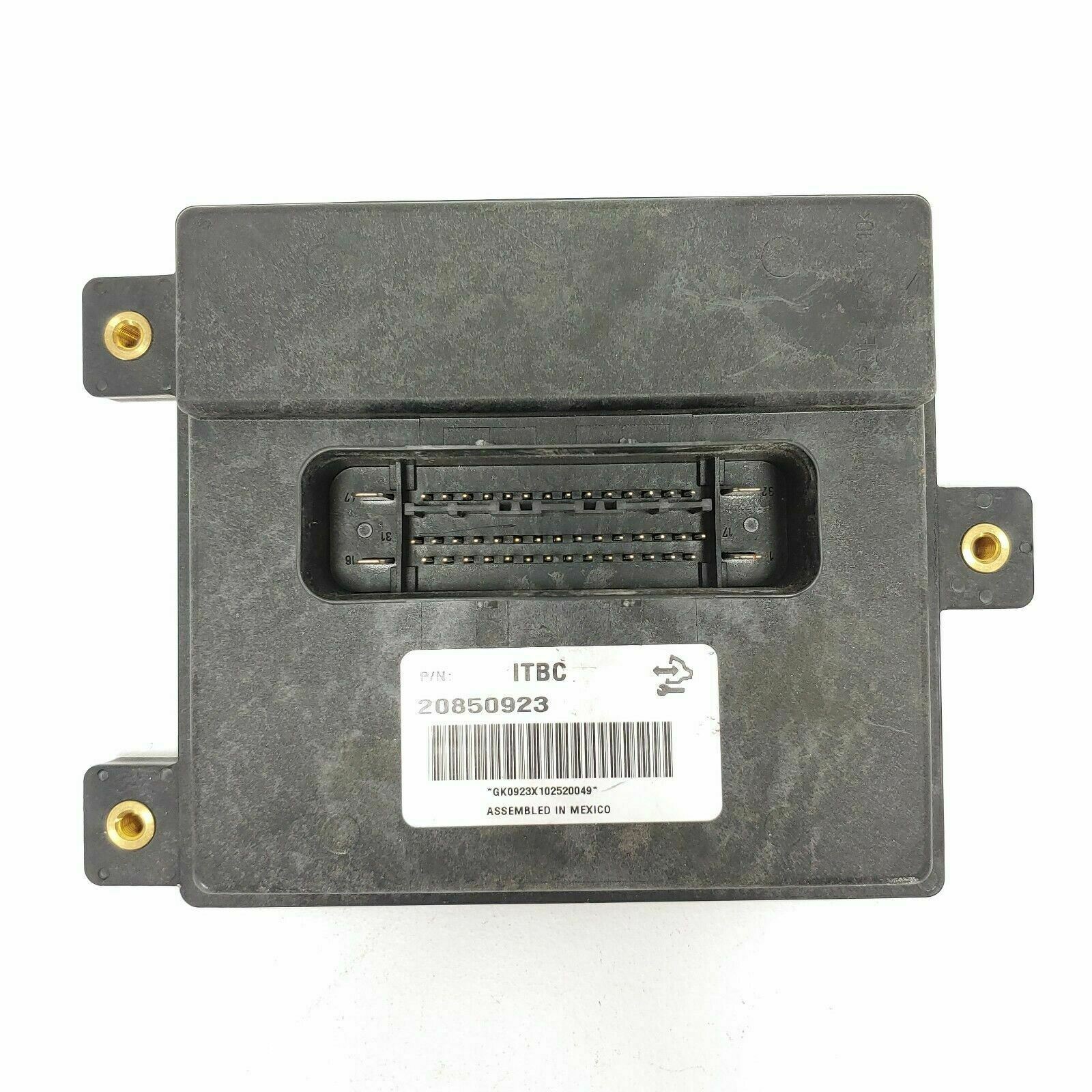

This module is a direct-fit replacement for the following vehicles equipped with the factory integrated trailer brake controller. It is compatible with part numbers 20850923, 25854535, 25788981, and 25907533.
- 2007-2009 Chevrolet Silverado 2500 HD / 3500 HD
- 2007-2009 GMC Sierra 2500 HD / 3500 HD
- 2008-2009 Chevrolet Silverado 1500
- 2008-2009 GMC Sierra 1500
- 2008-2009 GMC Sierra Denali
Why do you need my VIN?
Your Vehicle Identification Number (VIN) is required so we can program the module with the correct GM software and calibrations for your truck’s specific options. This ensures it communicates perfectly with your vehicle’s other computers, making the installation plug-and-play.
Is this a difficult part to install myself?
For most DIYers with basic tools, this is a straightforward repair. The module is located on the frame rail and is typically easy to access. Since we program it beforehand, no special electronic tools are needed, which saves you a trip to the dealer.
What does the Trailer Brake Control Module do?
The TBCM is the ‘brain’ of your factory integrated trailer brake system. It takes input from your truck’s brake pedal, anti-lock brake system, and the gain setting on your dash to send a proportional amount of power to your trailer’s electric brakes for smooth, synchronized stopping.
Will this fix the “Service Trailer Brake System” message?
Yes, a faulty TBCM is the most common cause of this warning message. Replacing a failed module with this pre-programmed unit will resolve the warning and restore full function to the system, provided the module was the source of the fault.
Are other part numbers compatible?
Yes, this module is a direct replacement for several part numbers, including 20850923, 25854535, 25788981, and 25907533. If your original module has one of these numbers, this part will fit and function correctly.
