Restore Peak Performance to Your Vehicle’s Engine

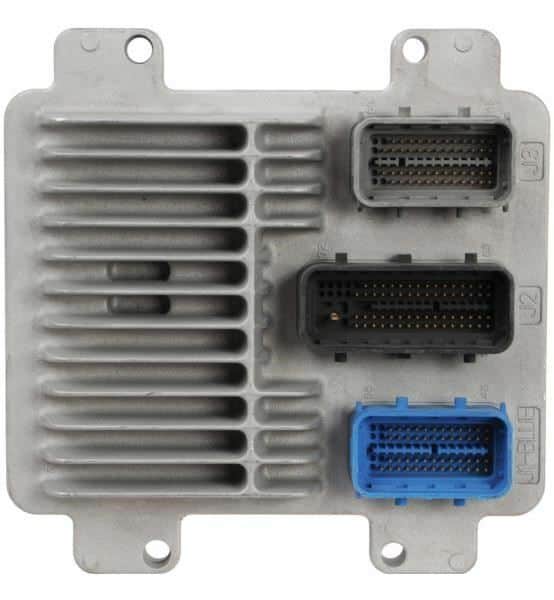

Is your Buick LaCrosse, Lucerne, or Pontiac Grand Prix suffering from frustrating and unpredictable engine problems? A failing Powertrain Control Module (PCM) is often the hidden culprit behind issues that seem impossible to diagnose. As the central computer for your engine and transmission, a faulty PCM can cause everything from a simple check engine light to a no-start condition that leaves you stranded. This replacement PCM, part number 12616866, is the reliable, straightforward solution to get your vehicle running smoothly again.
With over 20 years of hands-on diagnostic experience, I’ve seen firsthand how a failing module can disrupt a perfectly good engine. This isn’t just a part; it’s the brain of your vehicle’s operation. That’s why we take the critical step of programming this module specifically to your car’s Vehicle Identification Number (VIN) before it ever leaves our facility. This ensures it has the latest GM software updates and communicates perfectly with your vehicle’s other systems, right out of the box.
Common Signs of a Failing Powertrain Control Module
If you’re experiencing any of the following symptoms, a faulty PCM could be the root cause. Replacing it can often solve multiple issues at once.
- ✔ Check Engine Light is illuminated with codes like P0601, P0602, P0606, or other communication-related faults.
- ✔ The engine cranks but refuses to start.
- ✔ Rough or erratic idling and stalling.
- ✔ A noticeable decrease in fuel economy.
- ✔ Harsh or incorrect shifting from the automatic transmission.
- ✔ Failure to pass an emissions or smog test.
- ✔ Intermittent electrical problems that seem to have no other cause.
Case Study: A Tricky Diagnosis
A few months back, a 2007 Pontiac Grand Prix with the 3.8L engine came into my shop. The owner was frustrated because he’d replaced multiple sensors trying to fix an intermittent stalling issue and a check engine light. The codes were all over the place—O2 sensor faults one day, random misfires the next. After checking the wiring and confirming the sensors were good, my attention turned to the PCM. On these GM vehicles, the PCM is located in the air cleaner housing, where it’s subjected to constant vibration and heat cycles. We connected our diagnostic scanner and found the PCM was intermittently dropping communication. We installed a VIN-programmed module, and the car ran perfectly. All the ghost codes vanished. It’s a classic example of how a single failing computer can mimic a dozen other problems.
A Straightforward Guide to Installation
Installing your pre-programmed 2006-2009 LaCrosse PCM is a manageable job for a DIY enthusiast. The key is to perform the security relearn procedure after installation, which pairs the new module to your vehicle’s anti-theft system.
- Safety First: Disconnect the negative terminal from your vehicle’s battery and secure it away from the post.
- Locate the PCM: On these 3.8L models, the PCM is housed within the lower portion of the engine’s air cleaner box. You will need to remove the top of the air filter housing to access it.
- Disconnect Harnesses: Carefully unclip and disconnect the large electrical connectors from the old PCM. Take note of their orientation.
- Swap the Modules: Remove the fasteners holding the old PCM in place and swap it with your new, pre-programmed module. Secure it with the original fasteners.
- Reconnect Everything: Firmly plug the electrical harnesses back into the new PCM. Reassemble the air cleaner housing and reconnect the negative battery terminal.
- Perform Security Relearn: This step is crucial. Turn the key to the ‘ON’ position (don’t start the engine). Attempt to start the engine; it will likely crank and stall. Leave the key in the ‘ON’ position for 10-12 minutes, or until the ‘Security’ light on the dash stops flashing and turns off. Turn the key off for 10 seconds. Repeat this cycle two more times for a total of three 10-minute cycles. The vehicle should now start and run normally.
Verified Vehicle Compatibility
This module is a direct-fit replacement for the following vehicles equipped with the 3.8L V6 engine. It interchanges with part numbers 12600930, 12619810, and 12509307.
- 2006-2009 Buick LaCrosse (3.8L)
- 2006-2009 Buick Allure (3.8L)
- 2006-2008 Buick Lucerne (3.8L)
- 2006-2008 Pontiac Grand Prix (3.8L)
How does the VIN programming work?
After you complete your purchase, simply send us your 17-digit VIN. We use this number to load the latest, most stable GM-approved software directly onto your module. This ensures it’s a perfect match for your vehicle’s specific configuration.
Is this a simple plug-and-play installation?
Yes, because the module arrives pre-programmed, you will not need any special scan tools or a trip to the dealership for software flashing. However, you MUST perform the vehicle’s security relearn procedure after installation, which can be done at home with just the ignition key (see installation guide).
Will this fix my transmission shifting problems?
In many cases, yes. The PCM also controls the transmission’s electronic functions. If your shifting issues are caused by faulty computer logic or failing internal drivers within the PCM, this new module will resolve them.
Do I need to send my old PCM back?
No core charge is required for this part. You can keep or recycle your old module at your convenience.
What if my part number is slightly different?
This module, 12616866, is the direct replacement for several part numbers, including 12600930, 12619810, and 12509307. As long as your vehicle is on the compatibility list, this part will work correctly once programmed to your VIN.
