Restore Peak Transmission Performance in Your 2005 Buick Rainier

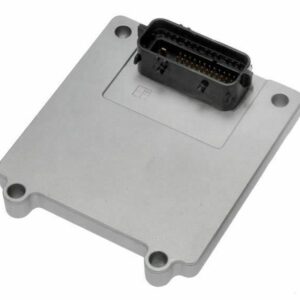

Are you tired of dealing with the frustrating and unpredictable behavior of your vehicle’s transmission? Issues like harsh, delayed shifting, getting stuck in one gear, or a persistent check engine light can make driving a stressful experience. The problem often points to a failing Transmission Control Module (TCM), the electronic brain of your automatic transmission. This replacement 2005 Rainier TCM is the definitive solution, arriving at your door pre-programmed with the latest GM software specifically for your vehicle’s VIN.
From the Diagnostic Bay: A Common GM Transmission Fix
I can’t count how many times a customer has brought in a mid-2000s GM vehicle, like a Rainier or an Envoy, with the complaint that it’s ‘stuck in gear’ and the check engine light is on. Nine times out of ten, a quick scan reveals a U0101 (Lost Communication with TCM) or a P0700 (Transmission Control System Malfunction) code. While these can seem generic, my experience points directly to the TCM itself. Internal circuit board failures from heat and vibration are incredibly common. Instead of a costly diagnostic rabbit hole, replacing the module with a properly programmed unit like this one solves the problem immediately, restoring communication and smooth shifting. This isn’t just a part swap; it’s a precise, reliable repair.
Common Signs of a Failing Transmission Control Module
If your vehicle is exhibiting any of the following symptoms, a faulty TCM is the most likely culprit. Replacing it can restore your vehicle’s drivability and safety.
- ✔ Harsh or erratic shifting between gears
- ✔ The transmission getting stuck in a single gear (often called “limp mode”)
- ✔ Delayed engagement when shifting from Park to Drive or Reverse
- ✔ Check Engine Light illumination with transmission-related codes (e.g., P0700, P0753, P0758, U0101)
- ✔ Poor fuel economy due to inefficient shifting
- ✔ Inaccurate gear display on the instrument cluster
A Straightforward Guide to Installation
Installing your new 2005 Rainier TCM is a manageable job for a DIY enthusiast. Since we program it to your VIN before shipping, no additional dealership visits are needed.
- Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- Locate the TCM: On the 2005 Buick Rainier, the TCM is typically located near the transmission itself or under the hood, often near the air cleaner housing. Consult a vehicle-specific repair manual if you are unsure.
- Disconnect and Remove: Carefully unplug the electrical connectors from the old module. Press the release tabs firmly to avoid breaking them. Then, unbolt the module from its mounting bracket.
- Install the New Module: Mount the new TCM onto the bracket and securely tighten the bolts. Reconnect the electrical connectors, ensuring they click into place.
- Final Step: Reconnect the negative battery terminal. Start the vehicle and allow it to idle for a few minutes. Take it for a test drive to confirm that shifting has returned to normal.
Will This Fit My Vehicle?
This module is a direct replacement for a wide range of 2004-2005 GM vehicles and is guaranteed to function correctly if your vehicle is listed below. It is compatible with part numbers 24223112, 24226863, 24233595, 24234189, 24239427, YBWW, YDFC, YDFD, YDLT, YJHY, YKTB, and YKTF.
COBALT 05 (Transmission; LH strut tower)
CORVETTE 05 (Transmission; LH frame rail)
ENVOY 05 (Transmission; LH engine compartment, 8 cylinder)
ENVOY XL 05 (Transmission; LH engine compartment, 8 cylinder)
ENVOY XUV 05 (Transmission; LH engine compartment, 8 cylinder)
GRAND PRIX 05 (Transmission; lower air cleaner housing)
GTO 05 (Transmission)
ION 05 (Transmission; behind LH strut tower)
LACROSSE 05 (Transmission; 3.6L, lower air cleaner housing)
PURSUIT 05 (Transmission; LH strut tower)
RAINIER 05 (Transmission)
RENDEZVOUS 04-05 (Transmission; 3.6L, air cleaner box)
TRAILBLAZER EXT 05 (Transmission; LH engine compartment, 8 cylinder)
By providing a reliable replacement for your failing electronics, this module is the key to getting your vehicle back on the road and driving smoothly. Order your pre-programmed 2005 Rainier TCM today and put an end to your transmission frustrations.
Why do you need my VIN?
Your Vehicle Identification Number (VIN) allows us to program the TCM with the exact software and calibrations specific to your Buick Rainier’s factory configuration. This ensures perfect compatibility and function right out of the box, eliminating the need for expensive dealer programming.
Is this part difficult to install?
For someone with basic mechanical skills, this is a straightforward installation. It’s a plug-and-play process of locating the old module, disconnecting it, and connecting the new one. No special tools are required.
Will this fix my check engine light?
If the check engine light is on due to codes related to the TCM (like P0700 or U0101), then yes, this replacement module is designed to resolve those specific electronic faults and should allow the light to be cleared.
What happens if I install it without programming?
An unprogrammed TCM will not communicate correctly with your vehicle’s other computers, like the Engine Control Module (ECM). This will result in a no-start condition or severe drivability problems. Our pre-programming service prevents this entirely.
Is this a brand new part?
This is a high-quality, inspected, and tested used OEM part that has been reset and programmed with the latest GM software for your vehicle. It provides original equipment function and reliability.
