Tired of Chasing Electrical Gremlins in Your Trailblazer?
As a technician with over two decades of experience, I’ve seen it all when it comes to the GMT360 platform (Trailblazer, Envoy, etc.). One of the most common and frustrating issues I diagnose is a failing Body Control Module, or BCM. It’s the electronic nerve center for your vehicle’s accessories. When it starts to go, you’ll experience a host of bizarre problems that seem to have no rhyme or reason. Your power windows might work one day and not the next, the radio could be completely dead, or you might see warning lights flicker without cause. This isn’t just an annoyance; it’s a sign that your vehicle’s core electronic system needs attention.
This isn’t just a replacement part; it’s a complete solution. We offer a professional cloning service that makes this repair job incredibly straightforward. You simply send us your original, failing BCM. We then extract the vehicle-specific data—the information that makes your truck unique—and transfer it directly onto this fully tested replacement module. We then ship both your original module and the ready-to-install replacement back to you. This process eliminates the need for expensive dealership programming and specialized scan tools, saving you significant time and money.
Real-World Repair Story
Real-World Repair Story
I remember a 2007 Envoy that came into my bay with a laundry list of complaints from the owner. The dome lights wouldn’t turn off, the driver’s side power seat was inoperative, and the security light was flashing intermittently, causing a no-start condition. The owner had already replaced the battery and checked all the fuses. After connecting my scan tool, I found multiple communication loss codes (U-codes) pointing to the BCM. These modules, located under the rear seat, are unfortunately prone to failure from voltage spikes and internal component breakdown over time. By providing a cloned 2005-2009 Trailblazer BCM, we had him back on the road the same afternoon with all systems functioning perfectly—no dealership visit required.
Is Your Vehicle Showing These Symptoms?
- ✔ Power windows, door locks, or mirrors operating erratically or not at all.
- ✔ Interior or exterior lights failing to work correctly (e.g., dome lights stay on, headlights won’t turn off).
- ✔ The radio or infotainment system is completely dead or works intermittently.
- ✔ Unexplained warning lights on the dashboard, such as the airbag or security light.
- ✔ The vehicle fails to start, and the security light is flashing.
- ✔ Diagnostic trouble codes (DTCs) related to communication loss, such as U0140, U0155, or U0164.
Your Straightforward BCM Installation Guide
- ✔ Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- ✔ Locate the BCM: On most of these GM SUVs, the Body Control Module is part of the rear fuse block assembly, located under the driver’s side rear seat cushion. Lift the cushion to access it.
- ✔ Disconnect and Remove: Carefully unplug all the electrical connectors from the BCM. They have locking tabs that need to be depressed. Once disconnected, unbolt or unclip the module from its mounting bracket.
- ✔ Install the New Module: Seat the replacement BCM into the mounting bracket and securely plug in all the electrical connectors. You should hear a ‘click’ as they lock into place.
- ✔ Reconnect Power: Reattach the negative battery terminal and tighten it securely.
- ✔ Test and Verify: Start the vehicle and test all body functions—windows, locks, lights, radio, etc. Please see the post-installation notes below, as some simple relearn procedures may be necessary.
Important Post-Installation Information
While our cloning service makes this a near plug-and-play repair, some vehicle systems may require a handshake with the new BCM. This is normal. Key procedures that might be needed include:
- Airbag System Sync: If your airbag warning light is on after installation, a simple ‘Setup SDM Primary Key in BCM’ procedure is needed. This requires a professional-grade scan tool to sync the modules and clear the light.
- Brake Pedal Position Relearn: To ensure your brake lights and traction control work as intended, a brake pedal position sensor relearn may be required on certain models.
Disclaimer: Always refer to a factory service manual or consult with a qualified automotive technician if you are unsure about any step of the process.
Will This Fit My SUV?

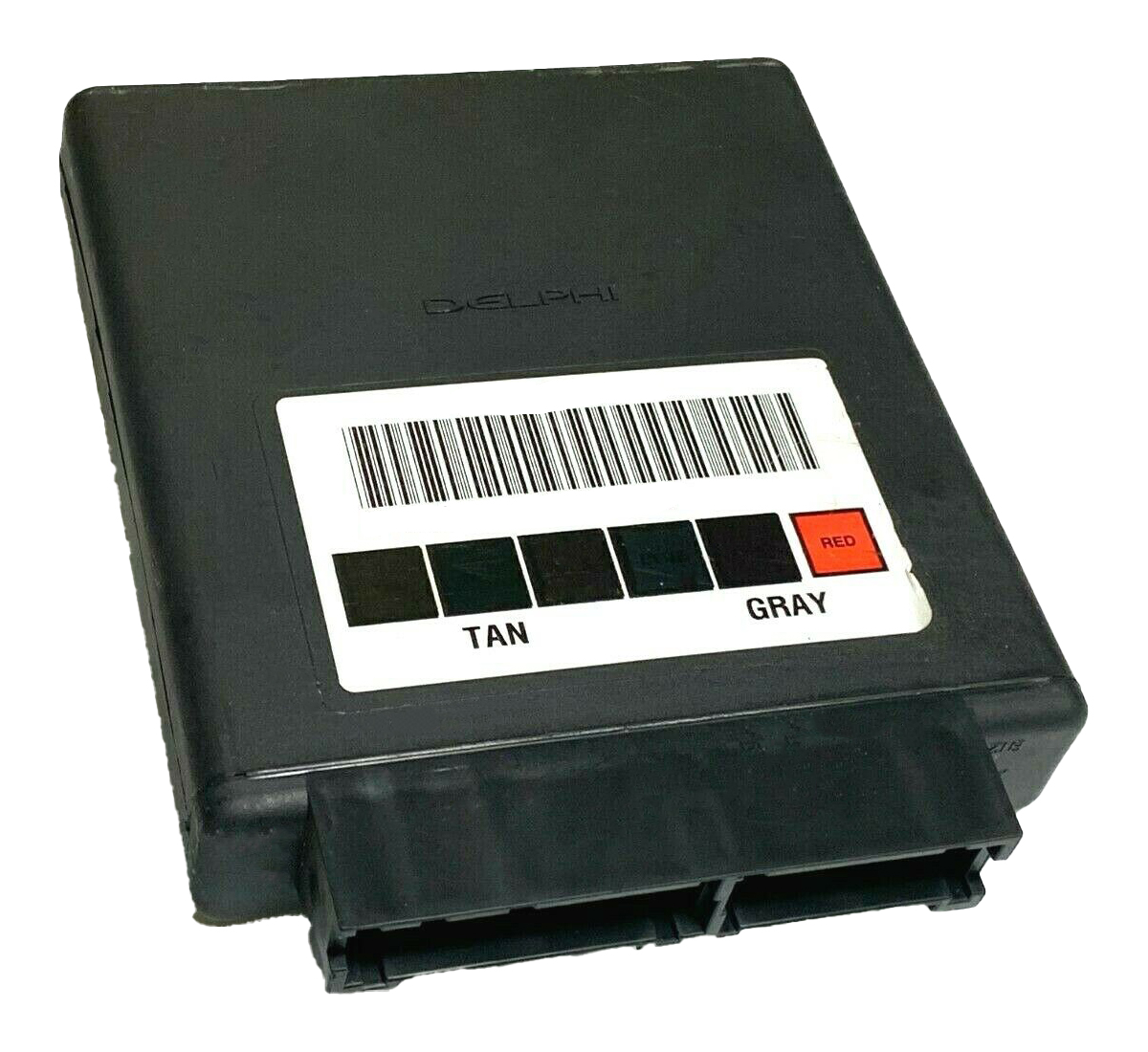

This 2005-2009 Trailblazer BCM is a direct-fit replacement for the following vehicles and part numbers. Please verify your part number or vehicle model to ensure compatibility.
Replaces Part Numbers: 25802312, 8258023120, 15135466, 15787809
Compatible Models:
- 2005-2009 Chevrolet Trailblazer (w/o security system)
- 2005-2006 Chevrolet Trailblazer EXT (w/o security system)
- 2005-2009 GMC Envoy (w/o security system)
- 2005-2006 GMC Envoy XL (w/o security system)
- 2005-2007 Buick Rainier (w/o security system)
- 2005-2008 Isuzu Ascender
- 2006-2009 Saab 9-7X
- What exactly is a cloning service?
- Cloning is a process where we transfer the essential, vehicle-specific software and security data from your original BCM to the replacement unit. This makes the new module plug-and-play, as it already has your vehicle’s identity and settings, eliminating the need for dealership programming.
- Do I need to program this module after I receive it?
- No. The cloning service handles all the necessary programming before we ship the module to you. In some cases, a minor relearn procedure (like for the brake pedal position sensor) may be needed after installation, which can often be done with a high-quality scan tool.
- Where is the BCM located on my 2006 Trailblazer?
- The Body Control Module (BCM) on the 2005-2009 Trailblazer and its sister vehicles (Envoy, Rainier) is integrated into the rear fuse block, which is located under the rear seat on the driver’s side.
- What happens to my original BCM?
- We always return your original module along with the programmed replacement unit. We do not keep your old part.
- What do I do if the airbag light comes on after installation?
- If the airbag light illuminates, it simply means the new BCM needs to be electronically introduced to the airbag system’s computer (SDM). A technician with a professional scan tool can perform the ‘Setup SDM Primary Key in BCM’ procedure to sync the modules and turn off the light.
