Restore Your Jeep’s Performance and Reliability
If you’re dealing with a 2005-2006 Jeep Grand Cherokee that’s stalling, running rough, or simply won’t start, a failing Engine Control Module (ECM) is a very common culprit. I’ve spent over two decades diagnosing these kinds of frustrating, intermittent issues, and I know how a faulty computer can turn a reliable vehicle into a source of constant worry. This isn’t just a replacement part; it’s a direct, dependable solution designed to get your Jeep back on the road without the exorbitant costs and delays of a dealership visit.

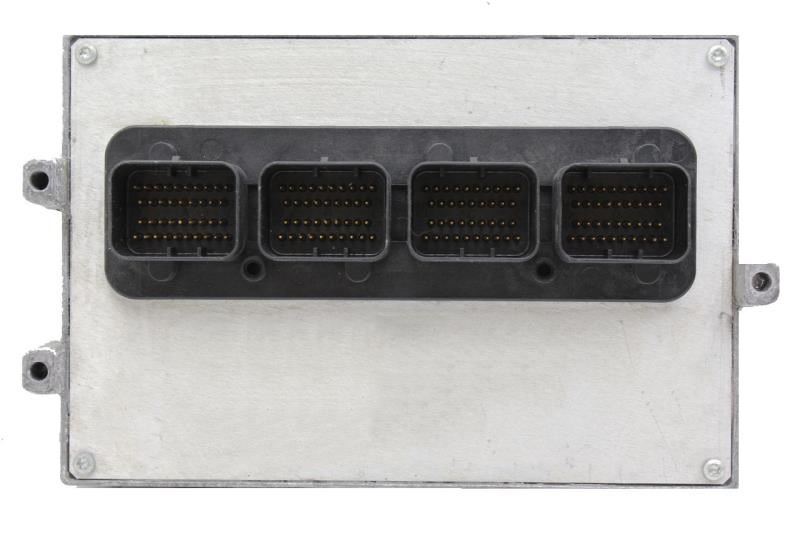

This ECM arrives at your door fully programmed to your vehicle’s specific VIN and mileage. This critical step, which we handle for you, means you can skip the expensive programming procedures required by the dealer. It is a true plug-and-play component. By solving the core electronic issues, this 2005-2006 Grand Cherokee ECM restores proper engine timing, fuel delivery, and transmission communication, bringing back the smooth operation you expect from your vehicle.
From the Diagnostic Bay: The Ghost in the Machine
I remember a 2005 Grand Cherokee 3.7L that came into my shop on a tow truck. The owner had already replaced the fuel pump and crankshaft sensor, chasing an intermittent no-start condition that left him stranded twice. The codes were all over the place—communication errors, sensor circuit faults—but nothing consistent. After hooking up my scope, I saw the 5-volt reference signal from the ECM was dropping out randomly. The computer was failing internally, but only when it warmed up. We installed one of our pre-programmed ECMs, and the Jeep fired up instantly and ran perfectly. It’s a classic case where throwing parts at a problem costs more than a proper diagnosis and the right, quality component.
Is Your Grand Cherokee Showing These Signs of a Failing ECM?
A failing engine computer can manifest in numerous ways. If you’re experiencing any of the following, a faulty ECM is a likely cause. Look out for these common indicators:
- ✔ Check Engine Light is on with no clear cause.
- ✔ Common Diagnostic Trouble Codes (DTCs) like P0601 (Internal Control Module Memory Check Sum Error) or P0606 (ECM/PCM Processor Fault).
- ✔ Vehicle randomly stalls or shuts off while driving.
- ✔ Engine cranks but refuses to start (no-start condition).
- ✔ Noticeable decrease in fuel economy.
- ✔ Rough idling or poor engine performance.
- ✔ Communication errors with diagnostic scan tools (e.g., U0100 – Lost Communication With ECM/PCM).
- ✔ Automatic transmission shifting erratically or harshly.
DIY Installation: Get Your Jeep Running in Under an Hour
Replacing the ECM on your Grand Cherokee is a straightforward job that most DIYers can complete with basic hand tools. Our pre-programmed module eliminates the most difficult step. Follow this simple guide for a successful installation:
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait at least 10 minutes for the system capacitors to discharge.
- Locate the ECM: On the 2005-2006 Grand Cherokee, the ECM is located in the engine compartment on the right-hand (passenger) side, near the firewall.
- Disconnect the Connectors: Carefully release the locking tabs on the three main wiring harness connectors and pull them straight out from the module. Avoid pulling on the wires themselves.
- Remove the Old Module: Unbolt the mounting hardware that secures the old ECM to its bracket. It’s typically held by a few small bolts.
- Install the New ECM: Mount your new, pre-programmed ECM in the same location and secure it with the original hardware.
- Reconnect Everything: Firmly plug the wiring harness connectors back into the new module until they click into place. Reconnect the negative battery terminal.
- Final Check: Turn the key to the ‘On’ position (without starting) for 10 seconds to allow the systems to initialize, then start the engine. Your Jeep should now run smoothly with the Check Engine Light off.
Guaranteed Compatibility for Your Jeep
This Engine Control Module is a direct-fit replacement for the specific models listed below. It is also compatible with a wide range of original part numbers, ensuring you get the correct component for your repair. Please verify that your vehicle matches the following specifications:
- Make: Jeep
- Model: Grand Cherokee
- Years: 2005, 2006
- Engine: 3.7L V6
- Drivetrain: 4×4
- Location: RH rear engine compartment
This unit replaces the following part numbers: 05094895AB, 05094898AA, 05094898AB, 05094898AC, 05094898AD, 05094898AE, 05094898ZB, 56044742AC, 56044742AD, 05094898AF
Frequently Asked Questions
Do I need to do any programming or flashing myself?
No. This 2005-2006 Grand Cherokee ECM is delivered fully programmed to your vehicle’s VIN and mileage. It is 100% plug-and-play, requiring no additional work from you or a mechanic.
Where do I provide my VIN and mileage?
You will be prompted to enter your vehicle’s VIN and current mileage during the checkout process. This information is essential for us to program the module correctly.
Is this a guaranteed fix for my vehicle’s problems?
While this ECM resolves all issues related to a faulty computer, it’s important to ensure your vehicle has been properly diagnosed. This part will not fix problems caused by other faulty components like sensors or wiring.
What if I order the wrong part?
We strongly encourage you to verify your vehicle’s year, model, and engine before ordering. Our compatibility list is precise. If you have any doubts, please contact our support team with your VIN, and we’ll help you confirm the correct part.
How difficult is the installation?
For someone with basic mechanical skills, the installation is simple and typically takes less than an hour. You only need common hand tools to unbolt the old unit and install the new one.
Will my keys need to be reprogrammed?
No. The programming we perform includes syncing the module to your vehicle’s existing security system (SKIM), so your original keys will work without any additional steps.
