Restore Peak Performance to Your GM Truck or SUV

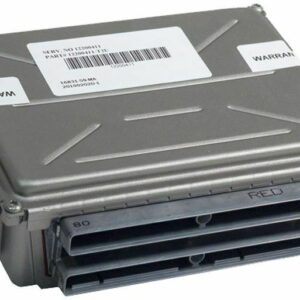

If you’re dealing with frustrating engine problems like stalling, poor fuel mileage, or a persistent Check Engine light, a failing Powertrain Control Module (PCM) is often the culprit. As the central computer for your engine, its proper function is critical. This replacement PCM is the definitive solution for your 2003 Trailblazer EXT and a wide range of other GM vehicles. It’s not just a part; it’s a direct fix that restores the communication and performance your vehicle had when it left the factory.
I’ve spent two decades under the hoods of these trucks, and I can tell you that chasing intermittent electronic gremlins is one of the biggest headaches for both DIYers and professional techs. This module eliminates the guesswork. We handle the most complex part for you: the programming. By flashing this PCM with the latest GM software updates specific to your vehicle’s VIN, we ensure it arrives ready for installation. This saves you a trip to the dealership and the high cost of their programming services, getting you back on the road faster and with more confidence in your repair.
From the Diagnostic Bay: The Ghost in the Machine
A customer brought in his 2006 Sierra 1500 with a problem that was driving him crazy: an intermittent no-start condition, but only when the engine was hot. It would run perfectly fine for a week, then leave him stranded after a quick stop at the store. There were no active trouble codes. We checked fuel pressure, spark, and crank sensor signals—all were perfect during testing. After letting the truck idle in the bay for 45 minutes to build up heat, it finally stalled and wouldn’t restart. That’s when the scanner finally caught the code: P0601 – Internal Control Module Memory Check Sum Error. The PCM’s internal processor was failing under heat. Instead of a costly diagnostic rabbit hole, the solution was simple: a reliable, VIN-programmed PCM like this one. We had him back on the road the same day with a permanent fix.
Is Your GM Truck or SUV Showing These Signs?
A faulty engine computer can manifest in numerous ways. If you’re experiencing any of the following, this module is your likely solution:
- ✔ Unexplained Check Engine Light (CEL) illumination
- ✔ Diagnostic Trouble Codes (DTCs) such as P0601, P0602, P0606, or U0100
- ✔ Engine stalling, stumbling, or rough idling
- ✔ Intermittent no-start or hard-starting conditions
- ✔ Poor acceleration and loss of power
- ✔ Decreased fuel economy
- ✔ Harsh or incorrect transmission shifting
- ✔ Failure to pass an emissions inspection
Your Straightforward PCM Installation Guide
Replacing the PCM on these GM models is a manageable job for a confident DIYer. Follow these steps carefully for a successful installation.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait at least 10 minutes for the system capacitors to discharge.
- Locate the PCM: On most compatible models, you’ll find the PCM in the engine bay, either on the driver’s side next to the air filter box or under the battery tray.
- Disconnect the Harnesses: The PCM has several large electrical connectors. Each has a locking lever or tab. Carefully lift or slide these locks to release the harnesses. Never force them.
- Remove the Old Module: Unbolt the PCM from its mounting bracket. It’s typically held in by two or three bolts.
- Install the New PCM: Mount your new, pre-programmed PCM onto the bracket and secure the bolts.
- Reconnect Everything: Firmly plug the electrical harnesses back into the new module until the locking levers click securely into place. Reconnect the negative battery terminal.
- Perform Security Relearn (CRITICAL): Your vehicle’s anti-theft system needs to sync with the new PCM. This is simple: Turn the key to the ‘ON’ position (without starting the engine) for 10-15 minutes. The ‘Security’ light on the dash should turn off. Turn the key off for 10 seconds, and then the vehicle should start and run normally.
Verified Compatibility for Your GM Truck or SUV
This module is a direct-fit replacement for a wide array of vehicles. Please match your vehicle, year, and engine specifications below. It is compatible with service numbers 89017750, 12582605, 12589463, 12602802, 89017734, and 28042802.
Fits Models Including:
- Chevrolet Avalanche 1500/2500: 2003-2006
- Chevrolet Silverado 1500/2500/3500: 2003-2007 (Classic Style)
- Chevrolet Suburban 1500/2500: 2003-2006
- Chevrolet Tahoe: 2003-2006
- Chevrolet SSR: 2003
- GMC Envoy XL: 2003 (5.3L)
- GMC Sierra 1500/2500/3500 & Denali: 2003-2007 (Classic Style)
- GMC Yukon & Yukon XL 1500/2500: 2003-2006
- Cadillac Escalade, ESV, EXT: 2003-2006
- Hummer H2: 2003-2007
- Isuzu Ascender: 2003 (5.3L)
Note: For 2004 models and some others, please verify your original module has ID 12602802 for guaranteed compatibility. For specific engine options (e.g., 6.0L gasoline), please refer to the detailed fitment list if unsure.
Frequently Asked Questions
How does the VIN programming process work?
After you complete your purchase, you will need to provide us with your vehicle’s 17-digit VIN. Our technicians use this number to access the latest official GM software for your exact model, year, and options. We then flash this software onto the PCM, so it arrives ready to be installed and synced with your vehicle.
Do I need any special tools for the installation?
No special tools are required. Basic hand tools like a socket set and ratchet are all you should need to physically swap the module. The only other procedure is the security relearn, which just involves turning the key.
Will this fix my transmission shifting problems?
In many cases, yes. The PCM also controls transmission functions, including shift points and line pressure. If the PCM is faulty, it can cause erratic shifting, delayed engagement, or other transmission issues. Replacing a bad PCM often resolves these related symptoms.
Is this a plug-and-play part?
Yes, this is as close to plug-and-play as it gets. Because we program it to your VIN before shipping, you do not need to take it to a dealer for flashing. You will only need to perform the simple, tool-free security relearn procedure detailed in the installation guide.
How do I find the part number on my current PCM?
The service number is printed on a sticker on the case of your existing PCM. You will need to locate and likely remove the module to see it clearly. This part is a direct replacement for several service numbers, including 28042802 and 12602802.
