Restore Your SUV’s Performance and Reliability
As a technician with over two decades of experience under the hood, I’ve seen firsthand how a failing Powertrain Control Module (PCM) can turn a reliable vehicle into a source of constant frustration. If your 2003 GMC Envoy XL is experiencing baffling issues like random stalling, erratic shifting, a persistent check engine light, or even a complete no-start condition, the PCM is a primary suspect. This isn’t just an inconvenience; it’s a critical component failure that affects fuel economy, emissions, and overall drivability. You need a solution that’s not just a replacement part, but a genuine fix.

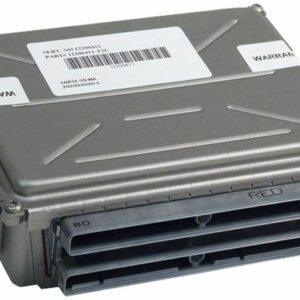

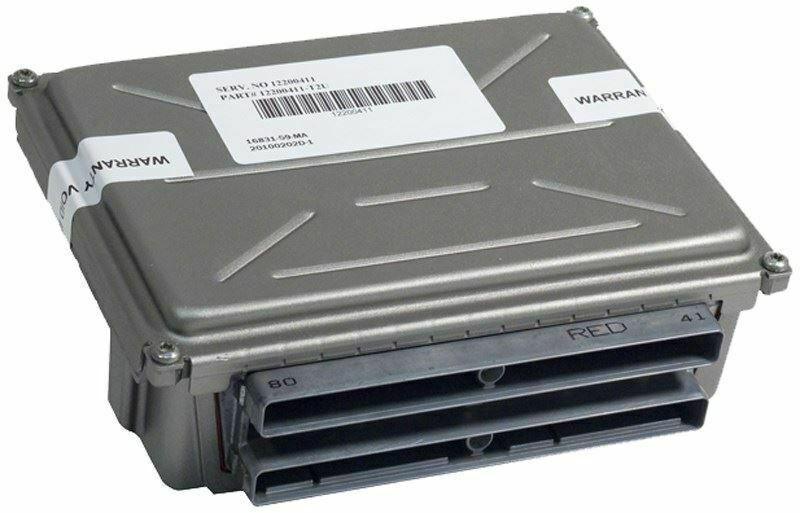

This isn’t just another part off a shelf. This is a fully programmed Engine Control Module, part number 12602802, that serves as the brain for your vehicle’s engine and transmission. We take the guesswork and expensive dealership trips out of the equation. Upon purchase, you simply provide us with your vehicle’s VIN. We then flash the module with the latest, most stable software updates directly from GM. This ensures that when it arrives, it’s ready to communicate perfectly with your specific vehicle, restoring the performance and efficiency you depend on.
Case Study: The Intermittent Stall
A customer brought in their ’03 Envoy XL 5.3L with a problem that was driving them crazy. It would run perfectly for days, then suddenly stall at a stoplight. No codes, no warning. They’d already replaced the fuel pump and cleaned the throttle body. After checking all the usual suspects, I hooked up my scope to the PCM’s power and ground circuits while monitoring sensor data. During a long test drive, I finally saw it: a momentary drop in the 5-volt reference signal, just before a stall. The PCM was internally faulting under specific thermal conditions. We installed one of these VIN-programmed modules, performed the security relearn, and the problem was gone for good. It’s a classic example of how a failing 2003 Envoy XL PCM can present as a ghost in the machine.
Is Your GM Vehicle Showing These Symptoms?
A faulty PCM can manifest in numerous ways. If you’re experiencing any of the following, it’s a strong indicator that your module needs attention. Often, you’ll see specific Diagnostic Trouble Codes (DTCs) stored in the system.
- ✔ Check Engine Light is on with codes like P0601, P0602, or P0606 (Internal Module Failure).
- ✔ Vehicle refuses to start or has difficulty starting.
- ✔ Unexplained drop in fuel efficiency.
- ✔ Harsh or erratic automatic transmission shifting.
- ✔ Engine stalling, sputtering, or misfiring for no apparent reason.
- ✔ Communication errors with scan tools (e.g., U0100 – Lost Communication with ECM/PCM).
A Straightforward Guide to Installation
Installing your new 2003 Envoy XL PCM is a manageable job for a confident DIYer. For the Envoy XL, it’s conveniently located next to the air filter box. Always follow proper safety procedures.
- Safety First: Disconnect the negative terminal from your vehicle’s battery and secure it away from the post to prevent accidental contact.
- Locate the PCM: On your Envoy XL, open the hood and find the PCM mounted in a bracket right next to the engine air filter housing.
- Disconnect the Harnesses: The PCM has several large electrical connectors. Carefully lift the locking levers or tabs on each connector and gently pull them straight out from the module. Never force them.
- Remove the Old Module: Unbolt or unclip the PCM from its mounting bracket and remove it from the vehicle.
- Install the New Module: Place your new, pre-programmed PCM into the bracket and secure it. Reconnect the electrical harnesses, ensuring they click securely into place and the locking levers are fully engaged.
- Reconnect Battery: Reattach the negative battery terminal.
- Perform Security Relearn: You will need to perform a security relearn procedure (often called a Passlock or Passkey relearn) to allow the vehicle to start. This typically involves turning the key to the ‘ON’ position for 10-15 minutes, then ‘OFF’, and repeating two more times. Your vehicle’s specific procedure is readily available online.
Verified Vehicle Compatibility
This module is a direct replacement for service number 12602802 and is also compatible with 89017750, 12582605, 12589463, 89017734, and 28042802. It fits a wide range of GM trucks and SUVs. Please verify your model and options below.
TRAILBLAZER EXT 03 (5.3L, next to air box)
ISUZU ASCENDER 03 (5.3L, LH engine)
SSR 03 (next to air box)
AVALANCHE 1500 03-06
CADILLAC ESCALADE, ESV, EXT 03-06
HUMMER H2 03-07
CHEVROLET SILVERADO 1500/2500/3500 03-07 (Classic Style)
CHEVROLET SUBURBAN 1500/2500 03-06
CHEVROLET TAHOE 03-06
GMC SIERRA 1500/2500/3500 03-07 (Classic Style)
GMC SIERRA DENALI 03-07 (Classic Style)
GMC YUKON & YUKON XL 1500/2500 03-06
Note: For some 2004+ models, please verify your original module ID is 12602802.
Frequently Asked Questions
Do I need to do anything after I buy this 2003 Envoy XL PCM?
Yes. After your purchase, you must send us your 17-digit Vehicle Identification Number (VIN). We cannot program and ship your module without it. This ensures it’s a perfect match for your vehicle’s systems.
Is any additional programming required once I install it?
The module arrives fully programmed for your engine and transmission. However, you will need to perform a simple ‘Security Relearn’ procedure, which syncs the new PCM to your vehicle’s anti-theft system. This procedure does not require special tools and can be done in your driveway.
What is a ‘CASE Learn’ and do I need to do it?
A Crankshaft Variation Relearn (CASE Learn) synchronizes the PCM with the crankshaft position sensor. While the vehicle will often run without it, we highly recommend having it performed with a capable scan tool to prevent a potential P1336 trouble code and ensure optimal engine timing and misfire detection.
How do I find my original part number to confirm a match?
The part number is printed on a sticker on the case of your current PCM. You can cross-reference it with the compatible service numbers listed: 89017750, 12582605, 12589463, 12602802, 89017734, or 28042802.
Will this fix my transmission shifting problems?
In many cases, yes. The PCM also controls transmission functions, including shift points and line pressure. If your shifting issues are caused by a faulty module, this part is the correct solution. It will not fix internal mechanical failures in the transmission itself.
