Tired of Bizarre Electrical Problems in Your GM Truck?
If you own a 2003-2007 Silverado 3500, you know it’s a workhorse. But when the electronics start acting up, it can be incredibly frustrating. One minute your power windows work, the next they don’t. The HVAC blower motor has a mind of its own, and a mysterious airbag light stays on. These aren’t random glitches; they’re classic signs of a failing Body Control Module (BCM). The BCM is the electronic brain for your truck’s body and cabin functions, and when it goes, it can cause a cascade of confusing issues.
As a technician with over two decades of experience, I’ve seen how a faulty BCM can make a perfectly good truck feel unreliable. The original modules often suffer from solder joint fatigue due to years of heat cycles and vibration. This leads to intermittent connections that cause the very problems you’re likely experiencing. This replacement BCM, part number 15136877, is the definitive solution. We pre-program it to your truck’s specific VIN, so it arrives ready for a true plug-and-play installation. No expensive trips to the dealership for programming are required.
Case Study: A Tricky Diagnosis
A customer’s 2006 Silverado 3500 came in last week with a baffling array of symptoms: the radio would cut out, the security light was flashing, and sometimes the truck wouldn’t start at all. He had already replaced the battery and checked the alternator. After hooking up my scanner, I saw a handful of communication loss DTCs, including a B1001. Instead of chasing individual components, I went straight for the BCM. A quick check of the main ground confirmed my suspicion—the BCM’s internal ground path was failing. We swapped in one of our VIN-programmed modules, and within minutes, every single issue was resolved. It’s a common failure point that can save you hours of diagnostic headaches.
Is Your Truck’s Electrical System Acting Possessed?
A failing BCM doesn’t always mean a total shutdown. It often starts with small, annoying problems. Here are the most common signs I see in the shop that point directly to a bad 2003-2007 Silverado 3500 BCM:
- ✔ The HVAC system or blower fan works intermittently or not at all.
- ✔ Your airbag warning light is illuminated, often with a DTC like B1001.
- ✔ Power windows, door locks, or interior/exterior lights fail without warning.
- ✔ The factory security system malfunctions, causing a no-start condition or the alarm to go off randomly.
- ✔ Unpredictable instrument cluster behavior or multiple warning lights.
- ✔ Diagnostic trouble codes (DTCs) related to body systems that won’t clear.
A Straightforward Guide to Installation
One of the best parts about this module is its simplicity. You don’t need to be a master mechanic to get your truck running right again. The entire process typically takes less than 10 minutes.
- Safety First: Always disconnect the negative terminal from your truck’s battery before starting any electrical work.
- Locate the BCM: On most Silverado and Sierra trucks, the BCM is located under the driver’s side of the dashboard, near the steering column. It’s a black box with several large multi-pin connectors.
- Swap the Module: Carefully unplug the electrical connectors from the old BCM. They have locking tabs, so be gentle. Unbolt or unclip the old module and set it aside. Mount the new module in its place.
- Reconnect and Test: Securely plug the connectors into your new, pre-programmed BCM. Reconnect the battery terminal. Start the truck and test all functions: lights, windows, locks, wipers, and HVAC.
- Post-Installation Steps: In some cases, you may need to perform a ‘Setup SDM Primary Key in BCM’ procedure with a compatible scan tool to clear the airbag light. Some vehicles may also benefit from a brake pedal position sensor recalibration for optimal performance.
Verified Fitment for Your GM Truck or SUV

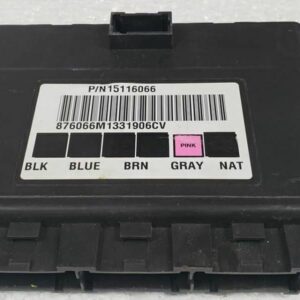

This BCM is a direct replacement for part number 15136877 and is interchangeable with several other part numbers, including 15116066, 15136225, and 15198116. It is engineered to fit a wide range of GM vehicles. While this page focuses on the 2003-2007 Silverado 3500 BCM, it is also compatible with the following models:
SILVERADO & SIERRA 1500/2500/3500 (2003-2007 Classic)
SUBURBAN & YUKON XL 1500/2500 (2003-2006)
TAHOE & YUKON (2003-2006)
CADILLAC ESCALADE / ESV / EXT (2003-2006)
HUMMER H2 (2003-2007)
EXPRESS & SAVANA VANS (2004-2007, w/ opt PRP)
Please verify your specific model and options before ordering.
Frequently Asked Questions
Do I need to program this BCM?
No. We pre-program the module to your vehicle’s VIN before shipping. It arrives ready for installation, saving you a trip to the dealer and additional programming fees.
What tools are required for installation?
In most cases, you will only need a basic socket set or nut driver to remove the mounting hardware for the module. The electrical connectors can be removed by hand.
Will this fix my airbag light?
This module often resolves the root cause of an airbag light, especially with DTC B1001. However, after installation, you must perform the ‘Setup SDM Primary Key in BCM’ procedure with a bidirectional scan tool to turn the light off.
Is there a core charge for my old part?
No, there is no core charge. You can keep your old module or dispose of it without the hassle of returning it.
What is the warranty on this part?
This Body Control Module comes with a one-year warranty, giving you peace of mind and confidence in your repair.
