Restore Your GM Truck’s Performance and Reliability

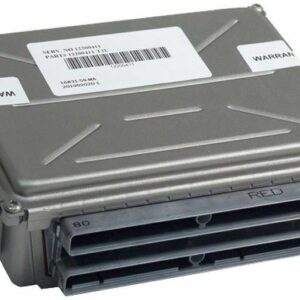

Is your 2003-2007 Sierra 3500, or another compatible GM truck, acting up? Unexplained stalling, a persistent Check Engine Light, or erratic engine behavior can be incredibly frustrating. Often, the root cause isn’t a mechanical failure but a problem with the vehicle’s brain: the Powertrain Control Module (PCM). As an experienced technician, I’ve seen firsthand how a failing PCM can mimic a dozen other issues, leading to wasted time and money on incorrect repairs. This replacement PCM, part number 12602802, is the direct solution to restore your truck’s factory operation and get you back on the road with confidence.
We make this repair process as simple as possible. Each module is professionally programmed to your vehicle’s specific Vehicle Identification Number (VIN) before it ships. This ensures it has the latest GM software updates and is ready for installation right out of the box. You’re not just buying a part; you’re getting a reliable, VIN-matched solution that takes the guesswork out of the equation.
A Technician’s Notebook: The Intermittent Stall
I remember a 2005 Silverado 2500 with the 6.0L that came into my bay on a tow truck. The owner said it would die randomly while driving and then refuse to restart for an hour. He’d already replaced the fuel pump and crank sensor. When I connected my scan tool, I got a U0100 ‘Lost Communication with ECM/PCM’ code. Instead of just throwing parts at it, I went straight to the PCM, located under the battery. After checking the power and ground pins at the connector—which were solid—I gently tapped on the module with a screwdriver handle. The engine immediately stumbled. That confirmed it: an internal failure in the PCM, a common issue on these trucks due to years of heat cycles and vibration. A new, properly programmed module fixed it for good. This is a classic symptom that this 2003-2007 Sierra 3500 PCM is designed to solve.
Is Your Truck Showing These Symptoms?
A failing PCM can cause a wide range of problems. If you’re experiencing any of the following, this module is likely the fix you need. Look out for:
- ✔ Unexplained engine stalling or shutting off while driving.
- ✔ Harsh or erratic automatic transmission shifting.
- ✔ Illumination of the Check Engine Light with codes like P0601, P0606, or communication errors (U-codes).
- ✔ Complete no-start condition where the engine cranks but won’t fire up.
- ✔ Reduced fuel economy and poor engine performance.
- ✔ Inconsistent or non-functional gauges on the instrument cluster.
- ✔ Failure to pass an emissions test.
A Straightforward Guide to Installation
Installing your new 2003-2007 Sierra 3500 PCM is a job most DIYers can handle in their own driveway. Follow these steps for a successful replacement.
- Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- Locate the PCM: On most of these GM trucks and SUVs, the PCM is located in the engine bay on the driver’s side, often under or near the battery and airbox.
- Disconnect Connectors: Carefully unlatch and remove the electrical wiring harness connectors from the old PCM. These usually have a lever or tab that needs to be released.
- Remove the Old Module: Unbolt the old PCM from its mounting bracket. Keep the hardware as you may need it for the new module.
- Install the New PCM: Mount your new, pre-programmed PCM into the bracket and securely reconnect the wiring harnesses. Ensure they click into place.
- Reconnect Battery: Re-attach the negative battery terminal.
- Perform Security Relearn (CRITICAL): You MUST perform the GM Security Relearn Procedure. Turn the key to the ‘ON’ position (don’t start) for 10-15 minutes, or until the security light stops flashing. Turn the key ‘OFF’ for 10 seconds. Repeat this cycle two more times (for a total of three cycles). The vehicle should now start and run normally.
Verified Vehicle Compatibility
This module, service number 12602802, is a direct replacement for a wide range of General Motors trucks and SUVs. It is also compatible with service numbers 89017750, 12582605, 12589463, 89017734, and 28042802. Please verify your part number or consult the list below. This part fits many models including, but not limited to:
Frequently Asked Questions
Do I need to do anything after installing this PCM?
Yes. While we program the module to your VIN, you MUST perform the security relearn procedure. This simple, 30-minute key-cycle process links the new PCM to your vehicle’s anti-theft system. We include instructions for this vital step.
What information do you need from me?
After you place your order, we require your 17-digit Vehicle Identification Number (VIN). This is essential for us to program the module with the correct GM software and calibrations for your specific truck.
Is this a guaranteed fix for my truck’s problems?
This PCM is a direct solution for issues caused by a faulty module, such as internal circuit errors (P0601) or communication loss. While it solves a very common problem, we always recommend proper diagnostics to confirm the PCM is the point of failure before ordering.
Will this fix my transmission shifting problems?
In many cases, yes. The PCM controls both engine and transmission functions. Erratic shifting, getting stuck in one gear, or harsh engagement are classic symptoms of a failing PCM. This module restores proper communication and control over the transmission.
Where is the PCM located on my 2004 Sierra?
On most 2003-2007 GM full-size trucks and SUVs, including the Sierra, the PCM is found in the engine compartment on the driver’s side, typically mounted to a bracket underneath the battery tray or next to the air filter housing.
How is this different from a generic part from a big box store?
Unlike a generic, un-programmed module, this unit arrives flashed with the latest GM-approved software specifically for your vehicle’s VIN. This eliminates the need for expensive dealership programming, saving you time and hundreds of dollars.
