Solve Your Escalade’s Electrical Headaches for Good

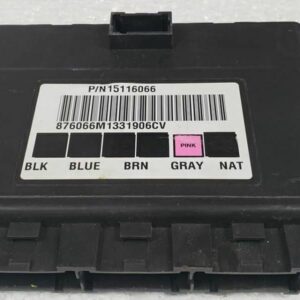

If you’re dealing with baffling electrical issues in your 2003-2006 Cadillac Escalade—like flickering lights, a dead climate control panel, or power windows with a mind of their own—you’ve likely met the culprit: a failing Body Control Module (BCM). As a technician with over 20 years of experience, I’ve seen how a faulty BCM can turn a luxury SUV into a source of constant frustration. This module is the central command for your vehicle’s body electronics, and when it fails, it can cause a cascade of problems. Our replacement BCM, a direct-fit for part number 15136225, is the definitive solution, arriving pre-programmed to your vehicle’s VIN for a true plug-and-play repair.
A Technician’s Notebook
“A customer’s 2005 Escalade ESV came into the bay last month with a laundry list of complaints: the radio would cut out, the driver’s side power seat was dead, and the airbag light was on with a B1001 code. They had already replaced the battery and checked fuses with no luck. After a quick scan, I suspected the BCM. These modules on the GMT800 platform are notorious for internal solder joint failures over time, leading to exactly these kinds of sporadic, unrelated electrical gremlins. We swapped in a VIN-programmed BCM, and within 10 minutes, every single issue was resolved. It’s a common repair, and this part saves you from chasing phantom electrical shorts for hours.”
Is Your Escalade Showing These Electrical Gremlins?
A failing BCM doesn’t always trigger a check engine light, often leaving owners and even some mechanics guessing. Here are the most common signs I’ve diagnosed that point directly to a bad 2003-2006 Escalade BCM:
- ✔ Intermittent or non-functional power windows, door locks, or interior lights.
- ✔ The security system acts erratically, preventing the vehicle from starting (Passlock issues).
- ✔ HVAC controls are unresponsive, or the blower motor works only on high or not at all.
- ✔ The airbag warning light is illuminated, often with a DTC like B1001 (Option Configuration Error).
- ✔ Wipers turn on by themselves or won’t shut off.
- ✔ Communication errors with other modules on the vehicle’s data network.
DIY Installation Guide: Get it Done in Minutes
One of the biggest advantages of our VIN-programmed modules is the simple installation. You don’t need to be a master mechanic to get your Escalade back to normal. The BCM is typically located under the driver’s side dashboard, near the steering column.
- Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts and to help reset the system.
- Locate the BCM: Find the module under the driver’s side dash. It will have several large multi-pin connectors attached to it.
- Swap the Module: Carefully release the locking tabs on each electrical connector and unplug them. Remove any mounting screws or clips holding the old BCM in place and take it out.
- Install the New BCM: Put the new module in position, secure it, and firmly reconnect all electrical connectors. You’ll hear a ‘click’ when they are properly seated.
- Final Steps: Reconnect the negative battery terminal. Start the vehicle to confirm that the issues are resolved.
Important Post-Installation Steps
To ensure full functionality, a couple of procedures may be necessary after installation. While our VIN programming handles the heavy lifting, these final steps ensure safety systems are correctly initialized:
- Airbag System Reset: If your airbag light was on, you must perform the ‘Setup SDM Primary Key in BCM’ procedure with a bi-directional scan tool. This re-establishes communication between the BCM and the airbag module.
- Brake Sensor Calibration: Some vehicles require a Brake Pedal Position Sensor recalibration to ensure accurate brake light operation and stability control function. This also requires a capable scan tool.
Verified Vehicle Compatibility List
This Body Control Module is a direct replacement for a wide range of General Motors trucks and SUVs, ensuring OEM-level function. It is compatible with part numbers 10383536, 15116066, 15136225, 15136877, 15137393, and more. Please verify your vehicle is on the list below for guaranteed fitment.
ESCALADE, ESCALADE ESV, ESCALADE EXT (2003-2006)
Chevrolet:
AVALANCHE 1500/2500 (2003-2006)
SILVERADO 1500/2500/3500 PICKUP (2003-2007 Classic)
SUBURBAN 1500/2500 (2003-2006)
TAHOE (2003-2006)
EXPRESS 1500/2500/3500 VAN (2004-2007 with commercial tradesman package)
GMC:
SIERRA 1500/2500/3500 PICKUP (2003-2007 Classic)
SIERRA DENALI (2003-2007 Classic)
YUKON & YUKON XL 1500/2500 (2003-2006)
SAVANA 1500/2500/3500 VAN (2004-2007 with commercial tradesman package)
Hummer:
H2 (2003-2007)
Frequently Asked Questions
How do I provide my VIN for programming?
Simply enter your 17-digit Vehicle Identification Number (VIN) in the designated box on the product page before adding it to your cart. We cannot process the order without it.
Will this fix my airbag light permanently?
This BCM will resolve airbag light issues caused by a faulty module (like DTC B1001). However, after installation, you must perform the ‘Setup SDM Primary Key’ procedure with a proper scan tool to clear the light, as it’s a required safety handshake.
Do I need any special tools for the installation?
For the physical swap, you’ll typically only need basic hand tools like a socket wrench or a screwdriver to access the module. However, for post-installation procedures like the airbag reset or brake sensor calibration, a bi-directional diagnostic scanner is required.
Is there a core charge for my old part?
No, there is no core charge. You can keep your old module, so you don’t have to worry about the cost or hassle of shipping it back.
What happens if I install it and still have problems?
Our modules are rigorously tested and backed by a one-year warranty. If you encounter issues, first ensure all post-installation procedures have been completed. If problems persist, contact our expert support team for diagnostic assistance or to initiate a warranty claim.
