Tired of Electrical Gremlins in Your GM Truck or Van?
If you’re dealing with flickering lights, power windows with a mind of their own, or a security light that won’t turn off, you’re not alone. As a technician with over two decades of experience, I’ve seen these exact issues countless times in vehicles like the Silverado, Sierra, and Express vans. The culprit is almost always a failing Body Control Module (BCM). This isn’t just an annoyance; a faulty BCM can affect vehicle security and the proper function of safety systems. This GM Body Control Module is the definitive, reliable solution to restore your vehicle’s electronic stability and peace of mind.
The biggest headache with BCM replacement has always been the programming. Historically, you’d have to install the part and then pay for a tow to the dealership for expensive flashing. We’ve eliminated that step. Simply provide us with your vehicle’s VIN during checkout, and our experts will program this module with the latest GM software specifically for your truck or van. It arrives at your door ready for installation, saving you time, money, and frustration.
Case Study: A Tricky Diagnosis
A customer’s 2005 Silverado 2500 came into the shop last month with a bizarre list of symptoms. The radio would randomly turn off, the driver’s side power lock was inoperative, and the dome light would stay on, draining the battery overnight. The owner had already replaced the battery and checked all the fuses. After connecting my diagnostic tool, I saw multiple communication error codes pointing toward the BCM. A failing BCM can create these ghost-like problems that seem unrelated. We installed one of our pre-programmed modules, and within an hour, every single issue was resolved. It’s a testament to how critical this single component is to the vehicle’s overall function.
Is Your GM Truck or Van Showing These Symptoms?
A failing BCM can manifest in numerous ways. If you’re experiencing any of the following, it’s a strong indicator that your module needs replacement:
- ✔ Erratic or non-functional power windows, door locks, or mirrors.
- ✔ Interior or exterior lights that stay on, flicker, or don’t work at all.
- ✔ The security or anti-theft system light is illuminated or flashing.
- ✔ Intermittent no-start conditions where the engine cranks but won’t fire up.
- ✔ Horn honking unexpectedly or not working when pressed.
- ✔ Inaccurate or dead gauges on the instrument cluster.
- ✔ Diagnostic trouble codes (DTCs) related to U-codes (communication) or B-codes (body).
A Straightforward Guide to BCM Installation
Replacing the BCM is a manageable job for a DIYer with basic tools. While the location varies slightly between trucks and vans, the process is similar. This guide is for the common under-dash location in Silverado/Sierra pickups.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait a few minutes before starting work.
- Locate the BCM: On most 2003-2007 GM trucks, the BCM is located under the driver’s side of the dashboard, often attached to a metal bracket near the steering column. You may need to remove a lower dash panel for access.
- Disconnect the Connectors: Carefully unplug the electrical connectors from the old BCM. They have release tabs that need to be pressed. Do not pull on the wires themselves.
- Remove the Old Module: Unbolt or unclip the old BCM from its mounting bracket. Note its orientation.
- Install the New BCM: Mount your new, pre-programmed BCM in the same position as the old one. Reconnect all electrical connectors firmly until they click into place.
- Final Steps & Re-sync: Re-install any trim panels you removed and reconnect the battery terminal. Follow the vital post-installation procedures outlined below.
Critical Post-Installation Procedures
After installing your new GM Body Control Module, a few final steps are required to ensure all vehicle systems communicate correctly. This is not optional and is crucial for safety.
- Airbag System Reset: The airbag warning light will likely be on. You must perform the ‘Setup SDM Primary Key in BCM’ procedure using a bi-directional diagnostic tool. This re-establishes the link between the BCM and the airbag system. Many independent shops can perform this if you don’t have the tool.
- Brake Pedal Position Sensor (BPPS) Relearn: Some vehicles may require a recalibration of the brake pedal position sensor. If your brake lights are not functioning correctly or you have related warning lights, this procedure is necessary.
Verified Vehicle Compatibility List

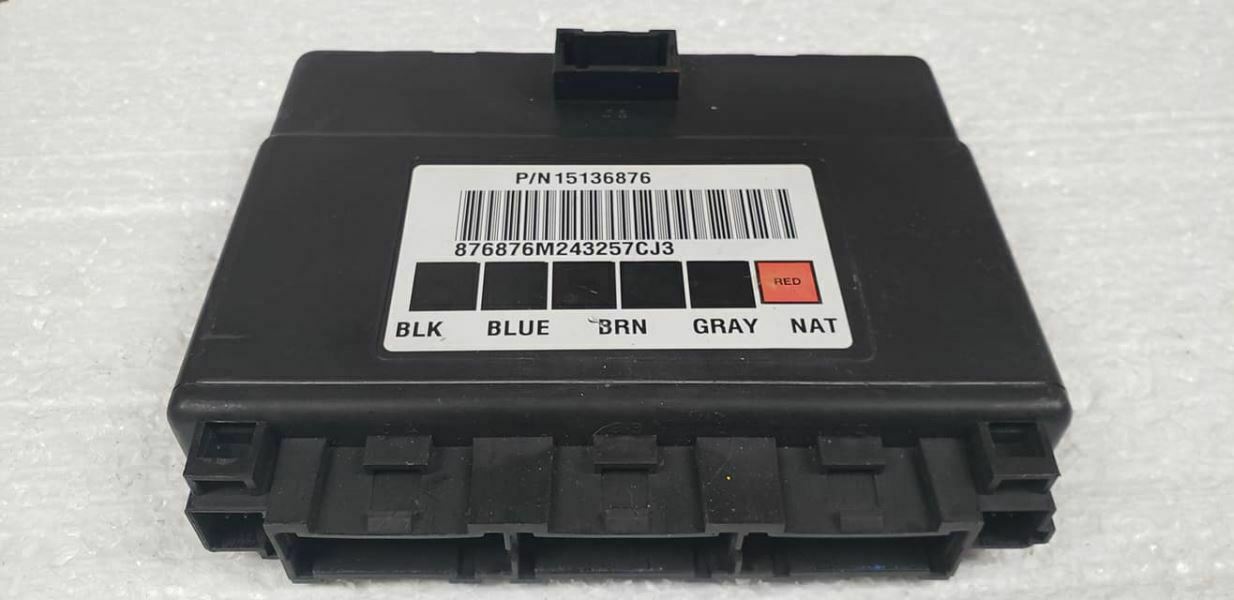

This module, part number 15136224, is a direct replacement for several original part numbers, ensuring wide compatibility. Please verify your vehicle is on this list. This unit is a direct fit for the following part numbers: 15167329, 15194169, 15747545, 15116065, 15198115, 15136876, 10367689.
- Fits 1500, 2500, and 3500 models.
- Located in the center dash area.
- Note: For 2004-2007 models, this fits vehicles without the commercial tradesman package.
Chevrolet Silverado & GMC Sierra Pickups (2003-2007):
- Fits 1500, 2500, and 3500 models.
- Located under the steering column.
- Note: Primarily fits models excluding Crew Cab configurations.
- For 2007 models, this fits the ‘Classic’ body style (identified by a creased door skin).
Chevrolet SSR (2003-2006):
- Direct fit for all SSR models within this year range.
Frequently Asked Questions
Do I need to program this GM Body Control Module?
No. We handle the programming for you before shipment. Just provide your vehicle’s 17-digit VIN when you order, and it will arrive ready to be installed.
Where is the BCM located on my 2004 Silverado?
On most 2003-2007 Silverado and Sierra pickups, the BCM is found under the driver’s side dashboard, typically mounted to a bracket near the steering column. On Express and Savana vans, it’s usually behind the center dash panel.
What tools are needed for the installation?
You’ll typically need basic hand tools like a socket set, a screwdriver, and possibly a trim panel removal tool to avoid scratching your dashboard. A bi-directional scan tool is required for the post-installation airbag system reset.
Will this fix the ‘Service Security System’ message on my dash?
Yes, in a vast majority of cases. The BCM is the heart of the Passlock and Passkey anti-theft systems. A failing module is the most common cause of this warning message and related starting issues.
What happens if I don’t do the airbag system reset?
The airbag warning light will remain on, and more importantly, the Supplemental Restraint System (SRS) may not function correctly in the event of a collision. This is a critical safety step that must be performed.
