Restore Your Truck’s Core Electrical Functions
Are you battling bizarre electrical gremlins in your 2002 GM truck or SUV? Flickering lights, power windows with a mind of their own, or a security system that won’t cooperate are classic signs of a failing Body Control Module (BCM). The BCM is the central command center for your vehicle’s body electronics, and when it starts to fail, it can cause a cascade of frustrating and unpredictable issues. Instead of chasing down endless wiring problems or paying steep dealership prices for diagnostics and programming, get the definitive solution right here.
This isn’t just a replacement part; it’s a complete, ready-to-install solution. We take a high-quality BCM and pre-program it with the very latest GM software updates, flashed specifically to your vehicle’s unique VIN. This critical step, which we handle for you, ensures proper communication between all your vehicle’s systems and saves you a mandatory, costly trip to the dealership. Get your truck back to operating the way it was meant to.
From the Diagnostic Bay
A customer’s 2002 Suburban came into my shop last month with a laundry list of complaints: the dome lights would stay on, the driver’s power window worked intermittently, and the radio would sometimes shut off on its own. They had already replaced the battery and checked all the fuses. After connecting my scan tool, I noticed several communication error codes pointing to the BCM. These early 2000s GM trucks are notorious for BCM failures due to heat cycles and aging internal components. Installing a pre-programmed 2002 Tahoe BCM like this one resolved all the issues in under an hour. It’s the most common and reliable fix for these exact symptoms.
Is Your Truck Showing These Symptoms?
- ✔ Erratic or non-functional power windows and door locks.
- ✔ Interior or exterior lights that flicker, stay on, or don’t turn on at all.
- ✔ The security system acting up or preventing the vehicle from starting.
- ✔ The radio or instrument cluster randomly shutting off and on.
- ✔ Inconsistent HVAC (heater and A/C) blower fan operation.
- ✔ Diagnostic trouble codes (DTCs) related to communication or body circuits.
A Straightforward Guide to BCM Installation
Replacing the BCM is a manageable job for a DIYer with basic tools. The module is typically located under the driver’s side of the dashboard, near the steering column.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before working on any electrical components.
- Locate the BCM: On your 2002 GM truck, you’ll find it mounted to a bracket under the steering column. You may need to remove a lower dash panel for access.
- Disconnect and Remove: Carefully unplug the electrical connectors. They have locking tabs that need to be depressed. Once disconnected, unbolt the module from its mounting bracket.
- Install the New Module: Bolt the new, pre-programmed BCM into place and securely reconnect all the electrical harnesses. Ensure they click into place.
- Reconnect Battery: Re-attach the negative battery terminal.
- CRITICAL Final Steps: After installation, two procedures are required. You will need a capable bi-directional scan tool to perform the ‘Setup SDM Primary Key in BCM’ procedure. This syncs the BCM with the airbag system and will clear the airbag warning light. Some vehicles may also require a Brake Pedal Position Sensor recalibration to ensure proper brake light function and vehicle stability control.
Verified Vehicle Compatibility

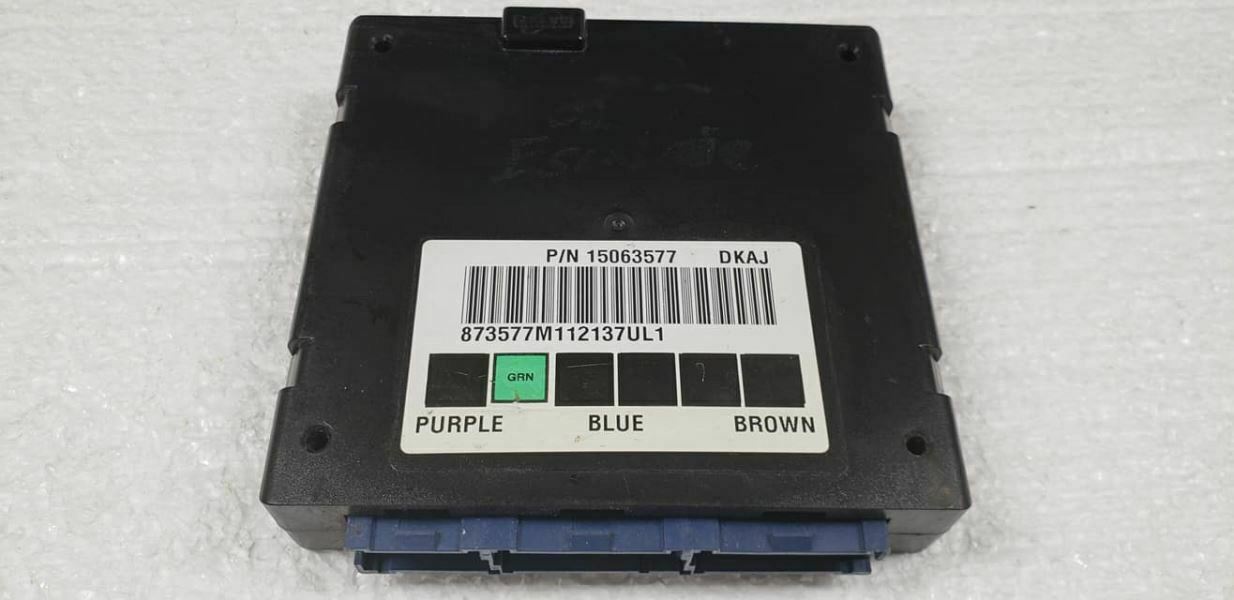

This module is a direct-fit replacement for the following vehicles, provided they have the specified options. It is compatible with service numbers 15063577, 15081857, 19208544, 15095335, DKAJ, and DPNW.
- 2002 Cadillac Escalade: Body Control (BCM); (under steering column), 4×4
- 2002 Cadillac Escalade EXT: Body Control (BCM); (under steering column)
- 2002 Chevrolet Avalanche 1500: Body Control (BCM); (under steering column), 4×4
- 2002 Chevrolet Suburban 1500: Body Control (BCM); (under steering column), 4×4
- 2002 Chevrolet Tahoe: Body Control (BCM); (under steering column), 4×4
- 2002 GMC Yukon: Body Control (BCM); (under steering column), 4×4
- 2002 GMC Yukon XL 1500: Body Control (BCM); (under steering column), 4×4
Frequently Asked Questions
Do I need to send you my old BCM?
No, there is no core charge or need to send us your original part. This is a direct replacement unit.
What happens if I don’t provide my VIN?
Providing your VIN is mandatory for this purchase. We cannot program the 2002 Tahoe BCM without it, which would prevent it from functioning correctly in your vehicle. We will contact you after your purchase to get this information.
Will this fix my ‘Service 4WD’ light?
While a BCM can be involved in 4WD system communication, that light is more often caused by the Transfer Case Control Module (TCCM) or the encoder motor. You should diagnose that issue separately before ordering a BCM to fix it.
What tools are needed for the post-installation procedures?
You will need a professional-grade, bi-directional scan tool (like a Snap-on, Autel, or GM Tech 2) to perform the ‘Setup SDM Primary Key’ and brake pedal recalibration. Basic code readers cannot perform these functions.
Is this part difficult to install?
The physical installation is straightforward for most DIYers, involving basic hand tools. However, the final programming steps require a specific diagnostic tool, so please be prepared for that step or have a local mechanic assist you.
How do I know if my BCM is the problem?
The most definitive way is with a proper diagnosis using a scan tool. However, if you are experiencing multiple, unrelated electrical issues from the symptoms list (e.g., power locks, interior lights, and radio all acting up), the BCM is the most likely culprit.
