Tired of Your Tahoe’s Electrical Gremlins?
Is your 2002 Tahoe acting possessed? One minute the power locks don’t work, the next the security light is flashing, or the interior lights have a mind of their own. These frustrating and unpredictable issues often point to one culprit: a failing Body Control Module (BCM). As the central nervous system for your truck’s body electronics, a faulty BCM can cause a cascade of problems that are difficult to diagnose. From my 20+ years in the bay, I’ve seen how a bad BCM can make a perfectly good truck feel unreliable.
This isn’t just a replacement part; it’s a direct solution. We take a genuine GM-spec BCM and flash it with the very latest official software updates using the VIN you provide. This means the module arrives at your door ready to be installed, eliminating the need for an expensive trip to the dealership for programming. You get a reliable fix that restores factory functionality, tailored specifically to your vehicle’s options.
From the Diagnostic Bay: The Case of the Erratic Escalade
A customer brought in his 2002 Escalade last month with a laundry list of bizarre electrical complaints: the radio would shut off randomly, the driver’s side window worked intermittently, and the alarm would go off in his driveway for no reason. He’d already replaced the battery and checked the main grounds. After hooking up my scan tool, I noticed communication errors with multiple systems, all pointing back to the BCM. These GMT800 platform trucks are notorious for BCM failures due to heat cycles and age. We swapped in a pre-programmed module just like this one, and within an hour, every single one of his issues was gone. It’s a textbook fix for these symptoms.
Is Your Truck Showing These Symptoms?
- ✔ Power windows, locks, or mirrors not working or acting erratically.
- ✔ The security or anti-theft light stays on, preventing the engine from starting.
- ✔ Interior or exterior lights flickering, staying on, or not turning on at all.
- ✔ The radio or climate control system randomly shuts off or behaves strangely.
- ✔ False warning messages appearing on the driver information center.
- ✔ Inconsistent 4×4 engagement or service messages.
A Straightforward Guide to Your BCM Installation
Installing your new 2002 Tahoe Body Control Module is a manageable job for a confident DIYer. The BCM is typically located under the driver’s side of the dashboard, near the steering column.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before starting any electrical work. Wait a few minutes for the system capacitors to discharge.
- Locate the BCM: On your 2002 Tahoe, it’s found under the driver’s side dash. You may need to remove a lower dash panel for access.
- Disconnect and Remove: Carefully unplug the electrical connectors. They have locking tabs that need to be depressed. Once disconnected, unbolt or unclip the old module from its mounting bracket.
- Install the New Module: Mount your new, pre-programmed BCM in the same location. Securely plug in all the electrical connectors, ensuring they click into place.
- Reconnect Power: Re-attach the negative battery terminal.
- Perform Relearn Procedures: Turn the key to the ‘ON’ position. Follow the critical post-installation steps outlined below to ensure all systems, especially safety features, are working correctly.
Critical Post-Installation Steps
After installing your new BCM, a couple of final procedures are necessary to ensure full functionality and safety. These steps synchronize the new module with your vehicle’s other systems.
- Airbag System Sync: The airbag warning light will likely be on. You must perform the ‘Setup SDM Primary Key in BCM’ procedure using a bi-directional scan tool. This is a critical safety step to ensure the airbag system is operational.
- Brake Pedal Position Sensor Relearn: Some vehicles require the Brake Pedal Position Sensor to be recalibrated after BCM replacement. This ensures the brake lights and stability control systems function correctly.
Note: If you are not equipped with a professional-grade scan tool or are unsure about these procedures, we strongly recommend seeking assistance from a qualified mechanic.
Will This Fit My GM Truck or SUV?

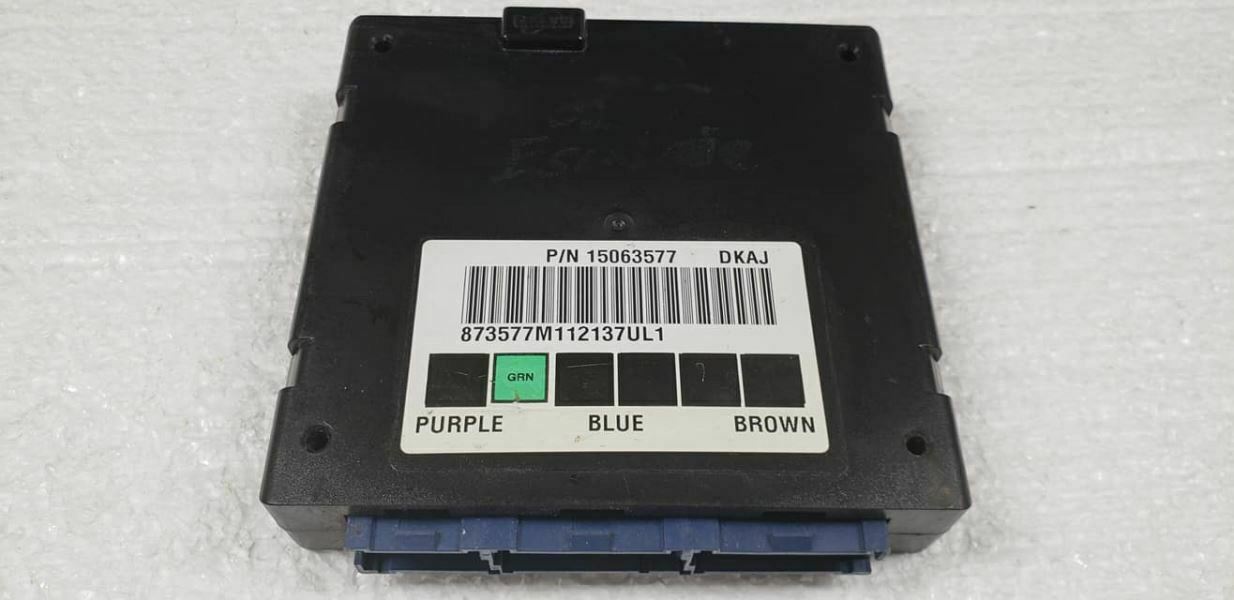

This 2002 Tahoe Body Control Module is guaranteed to be a direct fit for the following vehicles, provided the service number on your original part matches one of the numbers listed below. It is compatible with service numbers: 15063577, 15081857, 19208544, 15095335, DKAJ, and DPNW.
- 2002 Cadillac Escalade (4×4)
- 2002 Cadillac Escalade EXT
- 2002 Chevrolet Avalanche 1500 (4×4)
- 2002 Chevrolet Suburban 1500 (4×4)
- 2002 Chevrolet Tahoe (4×4)
- 2002 GMC Yukon (4×4)
- 2002 GMC Yukon XL 1500 (4×4)
Frequently Asked Questions
Why do you need my VIN number?
Your Vehicle Identification Number (VIN) allows us to program the BCM with the exact software and settings for your truck’s specific features, like the drivetrain (4×4), security system, and power accessories. This ensures it works correctly right out of the box.
Is this a simple plug-and-play part?
Yes, the hardware installation is plug-and-play. Because we program it to your VIN, you can avoid the complex and expensive programming at a dealership. However, you will need to perform the post-install relearn procedures mentioned above for the airbag and brake systems.
Will this fix my ‘Service 4WD’ light?
A failing BCM is a common cause for false ‘Service 4WD’ messages on these models. While it can often be the solution, you should always perform a proper diagnosis, as other components like the transfer case encoder motor or dash switch can also cause this light.
What tools are needed for the post-installation procedures?
To perform the ‘Setup SDM Primary Key’ and brake pedal relearn, you will need a professional-grade, bi-directional scan tool. Basic code readers cannot perform these specific functions. Many local repair shops can perform these procedures for you if you don’t have the tool.
What happens if I don’t provide a VIN?
We cannot ship the module without a VIN. The programming is essential for the part to function in your vehicle. After your purchase, please send us your 17-digit VIN so we can process your order promptly.
