Tired of Electrical Gremlins in Your GM Truck?
Are you dealing with flickering lights, power windows with a mind of their own, or a security light that prevents your 2002 Escalade or Yukon from starting? These aren’t just annoyances; they’re classic signs of a failing Body Control Module (BCM). As the central command for your vehicle’s comfort and convenience features, a faulty BCM can make your daily drive a frustrating ordeal. In my 20+ years as a technician, I’ve seen these modules cause some of the most confusing electrical issues, leaving owners chasing symptoms instead of the root cause.
This isn’t just a replacement part; it’s a direct solution. We take a genuine OEM-spec BCM and program it with the latest GM software specifically for your vehicle. All we need is your Vehicle Identification Number (VIN) after your purchase. This critical step means you can skip the expensive trip to the dealership for programming. You’ll receive a module that’s ready to be installed, saving you time, money, and the headache of dealing with complex diagnostic tools.
From the Diagnostic Bay: A 2002 Tahoe’s Ghost
A customer brought in his ’02 Tahoe last month, completely frustrated. The instrument cluster would randomly go dark, the radio would shut off, and sometimes the truck wouldn’t start, flashing the security light. He’d already replaced the battery and checked the alternator. After connecting my scan tool, I noticed communication errors between several modules, all pointing back to a single source. The BCM was failing intermittently, causing a network-wide disruption. We swapped in a VIN-programmed BCM, performed the necessary key relearn and airbag reset, and the truck’s electrical ‘ghost’ was gone. This 2002 Escalade BCM is the exact fix for those same baffling problems.
Common Signs of a Failing BCM
- ✔ Intermittent or non-functional power windows, door locks, or interior lights.
- ✔ The security system light stays on, causing a no-start condition.
- ✔ Horn honking unexpectedly or not working at all.
- ✔ Inaccurate or erratic instrument panel gauge readings.
- ✔ Communication error codes with other vehicle modules (DTCs).
- ✔ Wipers or radio turning on and off by themselves.
Your Straightforward Installation Guide
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before beginning any electrical work.
- Locate the BCM: On these GM trucks and SUVs, the BCM is typically located under the driver’s side of the dashboard, near the steering column. You may need to remove a lower dash panel for access.
- Disconnect and Remove: Carefully unplug the electrical connectors from the old BCM. They have locking tabs that need to be depressed. Once disconnected, unbolt or unclip the module from its mounting bracket.
- Install the New Module: Mount your new, pre-programmed BCM in the same location. Securely plug in all the electrical connectors, ensuring they click into place.
- Reconnect Power: Re-attach the negative battery terminal.
- Perform Final Procedures: Follow the critical post-installation steps outlined below to ensure all systems, including safety features, are working correctly.
Critical Post-Installation Requirements
After installing your new 2002 Escalade BCM, a couple of final steps are essential for safety and full functionality. These procedures sync the new module with your vehicle’s other systems.
- Airbag System Reset: The airbag warning light will likely be on. You must perform the ‘Setup SDM Primary Key in BCM’ procedure with a capable bi-directional scan tool. This is a non-negotiable safety step to ensure the airbag system is operational.
- Brake Pedal Position Sensor (BPPS) Recalibration: Some models may require the brake pedal position sensor to be recalibrated. This ensures the brake lights and stability control systems function as intended.
If you are not comfortable performing these steps, we strongly recommend seeking assistance from a professional mechanic with the proper diagnostic equipment.
Will This Fit My GM Truck?
This module is a direct-fit replacement for the following 2002 models, provided the original part number matches. It is compatible with service numbers: 15063577, 15081857, 19208544, 15095335, DKAJ, and DPNW.
- 2002 Cadillac Escalade (4×4)
- 2002 Cadillac Escalade EXT
- 2002 Chevrolet Avalanche 1500 (4×4)
- 2002 Chevrolet Suburban 1500 (4×4)
- 2002 Chevrolet Tahoe (4×4)
- 2002 GMC Yukon (4×4)
- 2002 GMC Yukon XL 1500 (4×4)
Frequently Asked Questions
Why do I need to provide my VIN?
Your VIN is essential because it allows us to program the BCM with the specific software and options package for your exact vehicle. This ensures a seamless installation without the need for dealer programming.
What does a Body Control Module actually do?
The BCM acts as the central computer for your vehicle’s body electronics. It controls non-engine related functions like power windows, locks, lights, wipers, the security system, and the instrument cluster.
Is this a difficult part to replace for a DIYer?
The physical replacement is straightforward for most DIYers with basic tools. It’s typically located under the dash and involves unplugging connectors and removing a few bolts. The most critical part is performing the post-installation procedures, which require a capable scan tool.
Will this fix my ‘Security’ light no-start problem?
A failing BCM is a very common cause of the ‘Security’ light issue on these GM models. While other issues can cause it, replacing a faulty BCM with this pre-programmed unit is a primary and effective solution.
What happens if I don’t reset the airbag light?
If the ‘Setup SDM Primary Key in BCM’ procedure is not performed, the airbag warning light will remain on, and more importantly, the airbag system (SRS) will be disabled and will not deploy in an accident. This is a critical safety step.

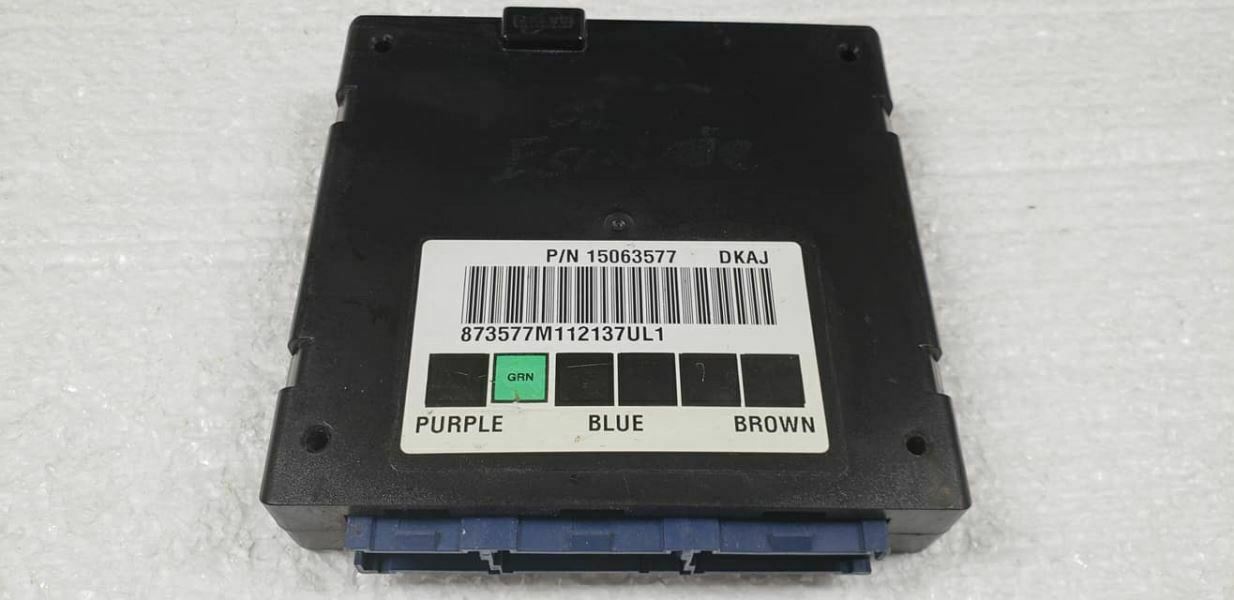

How do I find my original BCM part number?
The part number is printed on a sticker on the case of your existing BCM. You will need to access the module under the steering column to read it.
