Restore Control and Reliability to Your GM SUV

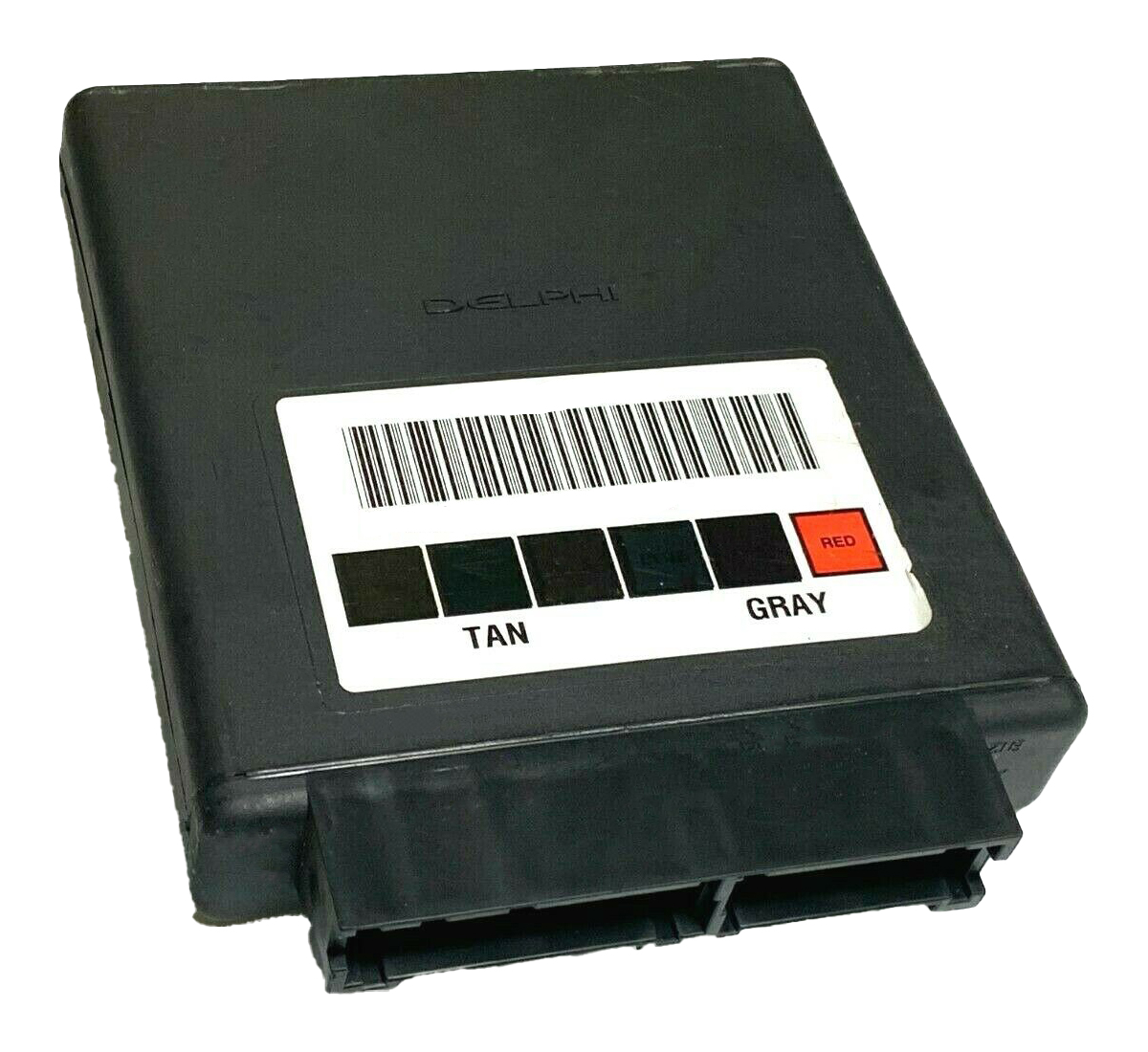

Are you chasing down electrical gremlins in your Trailblazer, Envoy, or Rainier? Intermittent power windows, flickering lights, or a dashboard that has a mind of its own are classic signs of a failing Body Control Module (BCM). As the central hub for your vehicle’s body electronics, a faulty BCM can cause a cascade of frustrating and unpredictable issues. This isn’t just an inconvenience; it can affect the safety and daily operation of your truck. This replacement 2002-2005 GM BCM is the definitive solution, arriving pre-programmed to your vehicle’s specific VIN for a straightforward installation.
From the Diagnostic Bay: The Case of the Haunted Trailblazer
I’ll never forget a 2004 Trailblazer that came into my shop. The owner was at his wit’s end. The radio would turn on and off, the power locks would cycle while driving, and sometimes the truck just wouldn’t start. He had already replaced the battery and alternator. After hooking up my scan tool, I saw a flurry of communication error codes (U-codes) pointing to a network problem. The BCM is the gateway for these systems. We found evidence of water intrusion on the original module—a common issue on these platforms as they are often located under the rear seat. Installing a pre-programmed BCM like this one not only fixed every single symptom but saved the customer hundreds in dealership programming fees and diagnostic time. It’s a fix I’ve performed countless times.
Is Your GM SUV Showing These Signs of BCM Failure?
A failing BCM can manifest in numerous ways. If you’re experiencing any of the following, it’s highly likely your Body Control Module is the culprit:
- ✔ Erratic or non-functional power windows, door locks, and mirrors.
- ✔ Interior or exterior lights that stay on, flicker, or don’t work at all.
- ✔ The security or anti-theft light stays illuminated, causing a no-start condition.
- ✔ Inconsistent or dead gauges on the instrument cluster.
- ✔ Communication Diagnostic Trouble Codes (DTCs), particularly U-codes, stored in the system.
- ✔ Horn honking unexpectedly or not working when needed.
Your Straightforward BCM Installation Guide
One of the biggest benefits of this module is that it arrives ready to install, with no need for a trip to the dealer for programming. While the exact location can vary slightly, this guide covers the typical process for a Trailblazer or Envoy.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before working on any electronic components.
- Locate the BCM: On most of these GM SUVs, the BCM is part of the rear fuse block assembly, located under the driver’s side of the rear seat. You may need to lift the seat cushion to access it.
- Remove the Cover: Unclip and remove the cover for the rear fuse block to expose the module and its connections.
- Disconnect and Remove: Carefully unplug all the electrical connectors from the BCM. Take a photo beforehand if it helps you remember their positions. Then, unlatch the BCM from the fuse block assembly and remove it.
- Install the New BCM: Seat the new, pre-programmed BCM into the fuse block, ensuring it clicks securely into place. Reconnect all electrical connectors firmly.
- Final Steps: Reinstall the fuse block cover, lower the rear seat, and reconnect the negative battery terminal. Turn the key to the ‘ON’ position for 10-15 seconds before starting the engine to allow the systems to initialize.
Important Post-Installation Information
After installing your new 2002-2005 GM BCM, your vehicle should function correctly. However, in some cases, additional steps known as ‘relearn’ procedures may be necessary to sync all vehicle systems. Please be aware of the following:
- Airbag System Sync: If the airbag (SRS) warning light is on after installation, a professional scan tool is required to perform the ‘Setup SDM Primary Key in BCM’ procedure. This syncs the new BCM with the airbag module.
- Brake Pedal Position Relearn: To ensure proper brake light and traction control operation, a brake pedal position sensor recalibration might be needed. This also typically requires a bi-directional scan tool.
Disclaimer: Vehicle systems vary. We always recommend consulting a factory service manual or a qualified technician if you are unsure about any step.
Verified Fitment for Your GM SUV
This module is a direct replacement for several part numbers and is guaranteed to fit the following vehicles and options. Please verify your model and options before ordering. Providing your VIN at checkout is required to ensure we send you a perfectly matched and programmed unit.
Compatible Part Numbers: 15122670, 15065293, 15114669, 15191621, 9352135
Fits Models Including:
- 2002-2005 Chevrolet Trailblazer & Trailblazer EXT
- 2002-2005 GMC Envoy, Envoy XL, & Envoy XUV
- 2002-2004 Oldsmobile Bravada
- 2004-2005 Buick Rainier
- 2003-2005 Isuzu Ascender
- 2005 Saab 9-7X
Note: This BCM is for vehicles without the factory security system option for most specified years. Please check the original description for exact fitment details.
Frequently Asked Questions About This 2002-2005 GM BCM
Frequently Asked Questions
Do I need to program this BCM?
No. We program the module to your vehicle’s VIN before shipping it to you. It arrives ready for installation, saving you a costly trip to the dealership.
What does a Body Control Module (BCM) do?
The BCM is a computer that acts as the central command for your vehicle’s body electronics. It controls functions like power windows, locks, interior/exterior lighting, wipers, and the instrument cluster.
Where is the BCM located on my 2003 Trailblazer?
On most GMT360 platform vehicles (Trailblazer, Envoy, etc.), the BCM is integrated into the rear fuse block, which is typically found under the rear seat on the driver’s side.
Is there a core charge for my old part?
No, there is no core charge. You can keep your original module without needing to send it back.
What if my airbag light is on after I install the new BCM?
This can happen occasionally. It means the new BCM needs to be electronically ‘introduced’ to the airbag system’s computer (SDM). This requires a ‘Setup SDM Primary Key’ procedure using a professional-grade scan tool.
