Restore Your Duramax Diesel’s Performance and Reliability

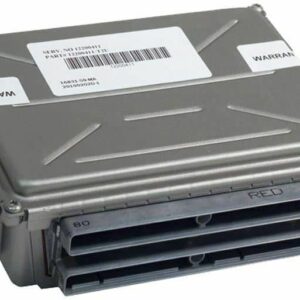

Is your 2002-2004 Silverado or Sierra workhorse acting up? Intermittent stalling, erratic transmission shifting, a persistent check engine light, or a frustrating no-start condition can often be traced back to a failing Powertrain Control Module (PCM). As a master technician with over two decades of experience diagnosing these exact trucks, I’ve seen firsthand how a faulty PCM can sideline an otherwise perfectly good vehicle. This isn’t just an inconvenience; it’s a hit to your productivity and peace of mind. This module, part number 12210729, is the definitive solution to get your truck back on the road, running as it should.
The Brain of Your Operation: Why a Healthy PCM is Crucial
Think of the PCM as the central computer for your truck’s engine and transmission. It manages everything from fuel injection timing and turbo boost to transmission shift points and emissions controls. When it begins to fail, the symptoms can be widespread and confusing. You might chase down sensor issues or mechanical problems for weeks, only to find the root cause was electronic. This replacement 2002-2004 Silverado 3500 PCM is meticulously tested and programmed to restore that critical command and control.
A Real-World Scenario from My Shop
“A customer’s 2003 Silverado 2500HD came in on a tow truck last month. It would crank but not start, and when it occasionally did, it would run rough for a minute and die. The owner had already replaced the fuel filter and FICM (Fuel Injection Control Module) with no luck. My diagnostic scan showed a slew of communication error codes. After verifying the wiring harness integrity, we honed in on the PCM. We swapped in one of our VIN-programmed modules, and the truck fired up on the first turn and idled perfectly. It was a classic case of internal PCM failure causing a cascade of confusing symptoms. This is a fix I’ve performed hundreds of times with consistent success.”
Common Symptoms of a Failing GM Diesel PCM:
- ✔ Persistent Check Engine Light (CEL) with various communication or sensor codes.
- ✔ Engine cranks but will not start.
- ✔ Harsh or erratic automatic transmission shifting.
- ✔ Noticeable loss of engine power or poor fuel economy.
- ✔ Communication errors with diagnostic scan tools.
- ✔ The vehicle randomly stalls while driving or idling.
Plug-and-Play Installation: A Straightforward Guide
One of the biggest benefits of this module is that it arrives programmed to your truck’s specific Vehicle Identification Number (VIN). This means you can avoid a costly trip to the dealership and the need for expensive programming tools. The installation is straightforward for a DIYer with basic tools.
- Safety First: Always disconnect the negative terminal from both batteries before beginning any electrical work.
- Locate the Module: On these trucks, the PCM (often called ECM) is located on the driver’s side of the engine bay, underneath the battery tray.
- Access the PCM: You will need to remove the driver’s side battery and the battery tray to gain clear access to the module.
- Disconnect and Remove: Carefully unplug the large electrical connectors. They have locking tabs that need to be released. Once disconnected, unbolt the module from its mounting bracket.
- Install the New Module: Bolt the new PCM into place and securely reconnect the electrical connectors. Ensure they click into place.
- Reassemble: Reinstall the battery tray and the battery. Reconnect the negative battery terminals.
- Security Relearn: You will need to perform a simple security relearn procedure. Turn the key to the ‘ON’ position for 10-15 minutes, then off for 10 seconds. Repeat this cycle three times. On the fourth try, the truck should start.
Guaranteed Fitment for Your GM HD Truck
This replacement 2002-2004 Silverado 3500 PCM is a direct-fit solution for a range of GM heavy-duty diesel trucks. Please verify your vehicle’s details against the list below to ensure compatibility. Providing your VIN during checkout is essential for us to load the correct GM-certified software for your specific vehicle configuration.
Compatible Vehicles:
Chevrolet Silverado 2500/3500 & GMC Sierra 2500/3500
- ✔ 2002-2003: Electronic Control Module; (LH front under battery), diesel
- ✔ 2004: Electronic Control Module; (LH front under battery), diesel, VIN 1 (8th digit)
Frequently Asked Questions
Do I need to get this PCM programmed by a dealer?
No. We flash the module with the latest GM software using the VIN you provide. It arrives ready to install, though a simple security relearn procedure is required, which you can do yourself.
Where is the PCM located on my 2003 Silverado 3500?
The PCM is located in the engine bay on the driver’s side, mounted to a bracket underneath the battery and battery tray.
What information do you need from me after I order?
We require your 17-digit Vehicle Identification Number (VIN) to ensure the module is programmed correctly for your truck’s specific options and emissions calibration.
Will this fix my check engine light?
If the check engine light is caused by an internal failure of the original PCM, this part will resolve the issue. It’s crucial to ensure other potential problems (like faulty sensors or wiring) have been ruled out.
Is this a difficult part to install for a DIY mechanic?
The installation is very manageable for someone with basic mechanical skills and tools. The most involved part is removing the battery and its tray to access the module. The electrical connectors are designed for easy removal and installation.
