Restore Your GM SUV’s Electrical System with a Plug-and-Play Solution
Are you chasing down frustrating electrical gremlins in your 2001 GMC Yukon XL 1500? Flickering interior lights, power windows with a mind of their own, or door locks that work intermittently are classic signs of a failing Body Control Module (BCM). As the central command center for your vehicle’s comfort and convenience features, a faulty BCM can make driving a daily headache. In my 20+ years of diagnostics, I’ve seen these modules cause some of the most baffling issues, often leading owners down a rabbit hole of replacing perfectly good switches and motors. This is the direct, reliable fix you’ve been looking for.
This replacement BCM arrives at your door fully programmed to your vehicle’s specific VIN. We handle the complex part by flashing it with the latest GM software updates, ensuring seamless communication with your truck’s other modules. This eliminates the need for an expensive trip to the dealership for programming. You get a component that’s ready for installation right out of the box, designed to restore factory functionality and get you back on the road with confidence.
Case Study: A Tricky Diagnosis
A customer brought in their ’01 Tahoe with a bizarre complaint: the radio would randomly turn off, the dome lights would flicker while driving, and the driver’s power window would only work after smacking the door panel. They had already replaced the window switch and checked the wiring. After hooking up the scan tool, I noticed intermittent communication loss codes pointing towards the BCM. The internal relays and logic board on the original BCM were failing, causing these ghost-like problems. Installing a properly programmed 2001 Yukon XL 1500 BCM like this one solved every single issue in one go. It’s a perfect example of how one central module can create a cascade of seemingly unrelated problems.
Is Your Truck Showing These Symptoms?
- ✔ Erratic or non-functional power windows, door locks, or mirrors.
- ✔ Interior or exterior lights that flicker, stay on, or don’t turn on at all.
- ✔ The security system light stays on or the vehicle won’t start due to a security fault.
- ✔ Inconsistent or non-working radio and climate control functions.
- ✔ False warnings on the driver information center (e.g., “Door Ajar”).
- ✔ Diagnostic Trouble Codes (DTCs) related to communication loss with peripheral modules (e.g., U-series codes).
A Straightforward Guide to Installation
- Safety First: Disconnect the negative terminal from your vehicle’s battery and wait at least 10 minutes to allow capacitors to discharge.
- Locate the BCM: On these GM SUVs, the BCM is typically found under the driver’s side of the dashboard, to the left of the steering column. You may need to remove a lower dash panel for access.
- Disconnect and Remove: Carefully unplug the electrical connectors from the old BCM. They have locking tabs that need to be depressed. Once disconnected, unbolt or unclip the module from its mounting bracket.
- Install the New Module: Mount your new, pre-programmed 2001 Yukon XL 1500 BCM in the same location. Securely plug in all the electrical connectors, ensuring they click into place.
- Reconnect Power: Re-attach the negative battery terminal. The installation is now complete, but you may need to perform a couple of final steps.
Important Post-Installation Procedures
While this module is programmed for your VIN, certain vehicle systems may require a final handshake to sync properly. These procedures require a professional-grade scan tool.
- Airbag System Sync: If your airbag warning light is illuminated after installation, a procedure called “Setup SDM Primary Key in BCM” must be performed. This syncs the new BCM with the airbag control module.
- Brake Pedal Position Relearn: In some cases, a brake pedal position sensor recalibration may be needed to ensure correct operation of the brake lights and stability control systems.
Will This Fit My Truck?

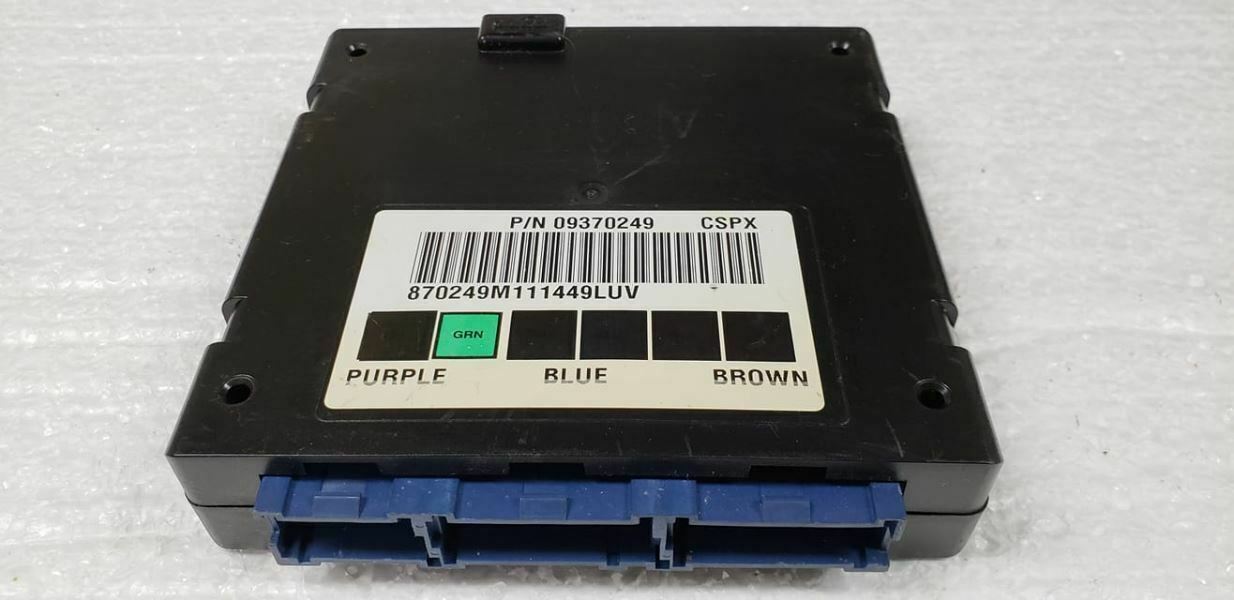

This Body Control Module is a direct replacement for part number 9370249 and is compatible with several other part numbers including 19208540, 9392994, 09370249, and 09392994. It is guaranteed to fit the following vehicles:
- 2001 GMC Yukon (with ID 9392994)
- 2001 GMC Yukon XL 1500 (with ID 9392994)
- 2001 GMC Yukon XL 2500 (with ID 9392994)
- 2001 Chevrolet Tahoe (with ID 9392994)
- 2001 Chevrolet Suburban 1500 (with ID 9392994)
- 2001 Chevrolet Suburban 2500 (with ID 9392994)
Do I need to send my old BCM back?
No, there is no core charge for this part. You can keep your original module, saving you the time and expense of return shipping.
What information do you need from me?
After you place your order, you must provide us with your vehicle’s 17-digit VIN. We use this to load the correct GM software and vehicle-specific options onto the BCM before shipping it to you.
Is this a difficult part to install myself?
The physical replacement is straightforward for a DIYer with basic tools. It involves removing a dash panel and swapping the module. However, please be aware that post-installation procedures like an airbag sync may be required, which necessitates a professional scan tool.
Will this fix my security light issue?
A failing BCM is a very common cause of security system faults (like the Passlock system) in these vehicles. This pre-programmed 2001 Yukon XL 1500 BCM is designed to resolve those communication issues and restore normal operation.
What happens if the airbag light comes on after I install it?
This is not a defect. It simply means the new BCM needs to be electronically introduced to the airbag module (SDM). A qualified mechanic with a bidirectional scan tool can perform the “Setup SDM Primary Key in BCM” procedure in a few minutes to turn off the light.
