Restore Full Electrical Control to Your GM SUV
Are you chasing down frustrating electrical gremlins in your 2001 Tahoe, Suburban, or Yukon? From flickering interior lights and erratic power windows to a security system that has a mind of its own, a failing Body Control Module (BCM) is often the root cause. As the central command center for your truck’s body electronics, its proper function is critical. This isn’t just about convenience; it’s about reliability. This direct-fit BCM is the definitive solution, arriving at your door pre-programmed with the latest GM software specifically for your vehicle’s VIN.
From the Diagnostic Bay: A Classic BCM Failure
Just last month, a 2001 Yukon XL was towed to my shop. The owner was at his wit’s end. The radio would turn on and off randomly, the driver’s side power lock wouldn’t work, and the security light was always on, sometimes preventing the truck from starting. He had already replaced the battery and checked all the fuses. After connecting my diagnostic scanner, I saw a slew of communication error codes pointing to the BCM. These scattered, unrelated electrical symptoms are a textbook case of an internal BCM failure. We installed one of these VIN-programmed modules, and within an hour, every single issue was resolved. It’s a fix I’ve performed hundreds of times on these GMT800 platform trucks.
Is Your Truck Showing These Telltale Signs?
- ✔ Intermittent or non-working power windows and door locks.
- ✔ Interior dome lights or dashboard lights flickering or staying on.
- ✔ The security or anti-theft light is illuminated, causing no-start conditions.
- ✔ Horn honking unexpectedly or not working at all.
- ✔ The radio or climate control display behaves erratically.
- ✔ False warning messages appearing on the driver information center.

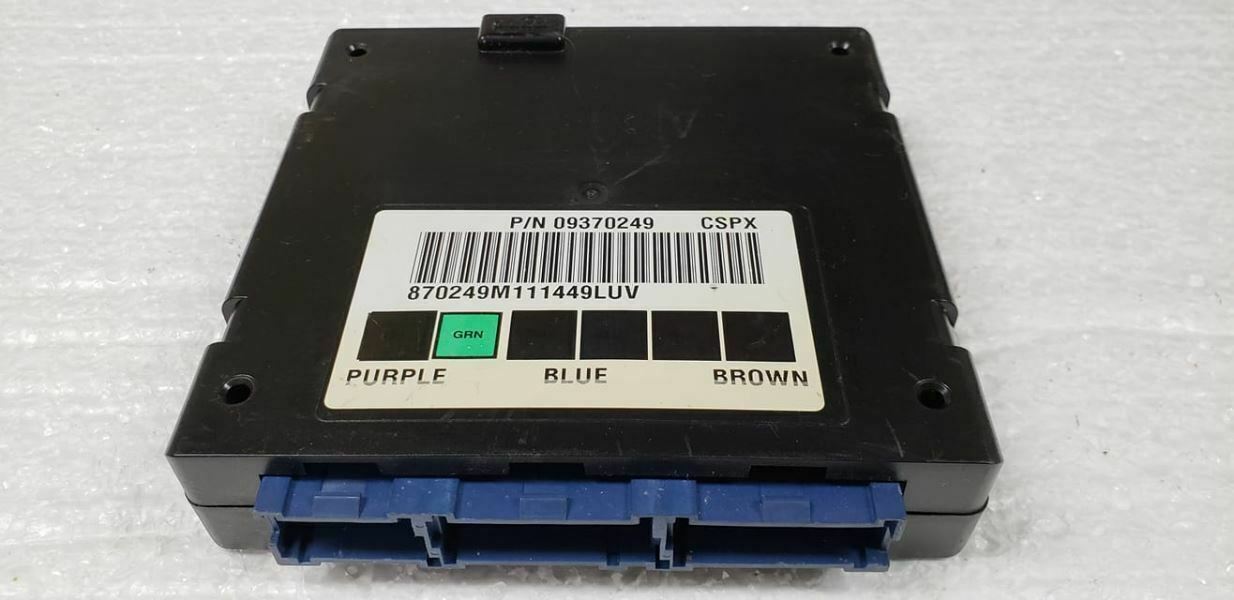

The Smart Solution: A Pre-Programmed 2001 Tahoe BCM
The biggest hurdle in replacing a BCM has always been the expensive programming required at a dealership. We eliminate that step entirely. Simply provide us with your vehicle’s VIN during checkout, and our technicians will flash this module with the correct, updated GM software. This ensures that when the part arrives, it’s ready for installation, saving you hundreds of dollars and significant downtime. You are getting a reliable part that communicates perfectly with your truck’s other systems right out of the box.
Your Straightforward Installation Guide
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before starting any electrical work.
- Locate the BCM: On these GM trucks, the BCM is located under the driver’s side of the dashboard, to the left of the steering column. You may need to remove a lower dash panel for access.
- Disconnect and Remove: Carefully unplug the electrical connectors from the old BCM. They have locking tabs that need to be depressed. Once disconnected, unbolt or unclip the module from its mounting bracket.
- Install the New Module: Mount your new, pre-programmed BCM in the same location. Securely plug in all the electrical connectors, making sure they click into place.
- Reconnect and Test: Reconnect the negative battery terminal. Turn the key to the ‘ON’ position and test all body functions—windows, locks, lights, radio, etc.—to confirm the repair.
Critical Post-Installation Procedures
Important: To finalize the installation and ensure all systems operate correctly, a couple of additional steps are required. These procedures ensure the new BCM communicates properly with other safety modules in your vehicle.
- Airbag System Reset: After installation, the airbag warning light will likely be on. You must perform the ‘Setup SDM Primary Key in BCM’ procedure using a compatible bi-directional scan tool. This re-establishes the security handshake between the BCM and the airbag module (SDM).
- Brake Pedal Position Sensor Relearn: Some vehicles may require the Brake Pedal Position (BPP) sensor to be recalibrated. This ensures the brake lights and stability control systems function correctly. This is also done with a professional-grade scan tool.
Verified Compatibility for Your Vehicle
This module is a direct replacement for part numbers 19208540, 9370249, 9392994, 09370249, and 09392994. It is guaranteed to fit the following models with matching options:
- 2001 Chevrolet Tahoe (with 4×4, ID 9392994)
- 2001 Chevrolet Suburban 1500 (with 4×4, ID 9392994)
- 2001 Chevrolet Suburban 2500 (ID 9392994)
- 2001 GMC Yukon (with 4×4, ID 9392994)
- 2001 GMC Yukon XL 1500 (ID 9392994)
- 2001 GMC Yukon XL 2500 (ID 9392994)
Frequently Asked Questions
Do I need to program this BCM?
No. We handle all the programming for you before shipment. Just provide your vehicle’s VIN at checkout, and the module will arrive ready to be installed, flashed with the latest GM software for your specific truck.
Where is the BCM located on my 2001 Tahoe?
The Body Control Module is typically found under the driver’s side dashboard, to the left of the steering column. It’s a black plastic box with several large electrical connectors.
What tools are needed for the final setup after installation?
To clear the airbag light and perform any necessary recalibrations, you will need a bi-directional diagnostic scan tool capable of performing GM-specific procedures like ‘Setup SDM Primary Key’ and ‘BPP Sensor Relearn’. Many professional repair shops have this equipment.
Will this fix the ‘Security’ light on my dashboard?
Yes, in most cases, a faulty BCM is the cause of a persistent security light and related no-start issues. Replacing it with this pre-programmed unit will resolve the problem by restoring proper communication with the vehicle’s anti-theft system.
What information do you need from me?
We only need your 17-digit Vehicle Identification Number (VIN). This allows us to program the module with the exact software and settings that your truck left the factory with, plus any subsequent updates from GM.
