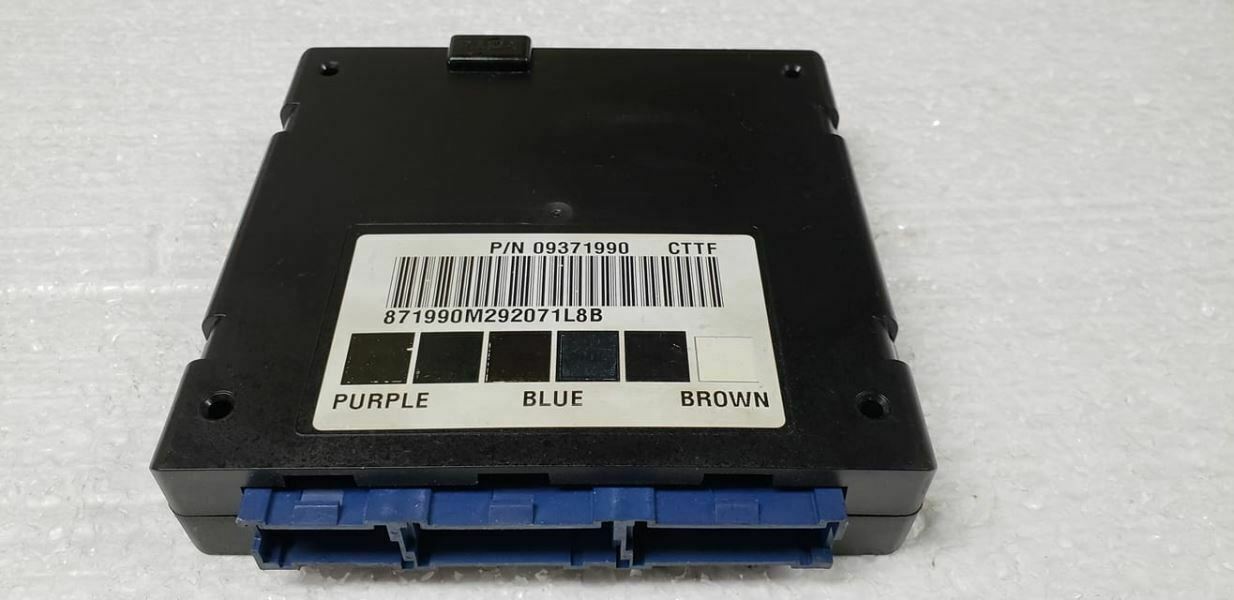

Restore Your GM Vehicle’s Electrical System with a Plug-and-Play BCM
Are you battling bizarre electrical issues in your 2001 Chevy Astro or other compatible GM vehicle? Flickering lights, dead power windows, a security light that won’t turn off, or a frustrating no-start condition are classic signs of a failing Body Control Module (BCM). As the central hub for your vehicle’s body electronics, a faulty BCM can cause a cascade of problems that are often misdiagnosed. This isn’t just an annoyance; it’s a reliability issue. We offer a dependable, straightforward solution: a replacement BCM, professionally programmed with the latest GM software specifically for your vehicle’s VIN.
Case Study: A Tricky Diagnosis
I remember a 2001 GMC Jimmy S15 that came into my shop. The owner had already replaced the battery and alternator, but the dash lights would still flicker randomly and the radio would cut out. A quick scan showed a dozen intermittent communication codes. Instead of chasing ghosts, we went straight to the BCM. These modules, especially from this era, are prone to internal solder joint failures. After swapping in a VIN-programmed BCM like this one, every single electrical gremlin vanished. It’s a fix I’ve performed hundreds of times, turning a frustrating electrical puzzle into a simple, effective repair.
Key Signs Your Body Control Module is Failing
A failing BCM can make you feel like your vehicle is haunted. If you’re experiencing any of these symptoms, your BCM is the likely culprit. This module directly addresses these common issues:
- ✔ Erratic or non-functional interior and exterior lights (headlights, dome lights, dash lights).
- ✔ Power windows, door locks, or mirrors working intermittently or not at all.
- ✔ The security or anti-theft system light stays on, preventing the engine from starting.
- ✔ Horn, wipers, or radio functioning unpredictably.
- ✔ False warning messages on the instrument cluster (e.g., “Service Vehicle Soon”).
- ✔ Communication error codes with other modules (U-codes) when scanned.
A Straightforward Guide to Your BCM Installation
Installing your new BCM is designed to be a simple process. On the 2001 Astro and Safari, the module is typically located under the driver’s side of the dashboard. For S10/Blazer models, it’s often behind the center dash. Always confirm the location for your specific vehicle.
- Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- Locate the Old BCM: Access the module under the dash. You may need to remove a lower dash panel for easier access.
- Disconnect and Remove: Carefully unplug the electrical connectors from the old BCM. They have locking tabs that need to be depressed. Once disconnected, unbolt or unclip the module from its mounting bracket.
- Install the New BCM: Mount your new, pre-programmed BCM in the same location and securely reconnect all electrical harnesses.
- Reconnect Power: Re-attach the negative battery terminal. Your vehicle is now ready to start with its new, fully functional BCM.
Important Post-Installation Information
Because this BCM is pre-programmed, most functions will work immediately. However, in some vehicles, additional synchronization steps may be required:
- Airbag System Sync: If the airbag warning light is on after installation, a professional scan tool is needed to perform the ‘Setup SDM Primary Key in BCM’ procedure. This syncs the new BCM with the airbag system.
- Brake Pedal Position Relearn: On certain models, a brake pedal position sensor recalibration might be necessary to ensure correct brake light and traction control operation.
- No Core Charge: You are not required to send your old module back. This saves you time and return shipping costs.
Disclaimer: Specific procedures can vary by vehicle. Always consult a factory service manual or a qualified technician for guidance.
Verified Vehicle Compatibility List
This Body Control Module is a direct replacement for part numbers 9385236, 19208539, and 9371990. It is guaranteed to fit the following vehicles and options:
- 2001 Chevrolet Astro (LH dash)
- 2001 GMC Safari (LH dash)
- 2001 Chevrolet S10 / GMC Sonoma (center dash)
- 2001 Chevrolet Blazer S10 / GMC Jimmy S15 (center dash, ID 9385236)
- 2001 Oldsmobile Bravada (center dash)
- 2000 Chevrolet Tahoe (LH dash, ID 9385236)
- 2000 GMC Yukon (exc. Denali, LH dash, ID 9385236)
- 2000 Chevrolet Suburban 1500 & 2500 (LH dash, ID 9385236)
- 2000 GMC Yukon XL 1500 & 2500 (LH dash, ID 9385236)
- 2000 Chevrolet Silverado 1500 & 2500 (LH dash, ID 9385236 or 9371990)
- 2000 GMC Sierra 1500 & 2500 (LH dash, ID 9385236 or 9371990)
Frequently Asked Questions
Frequently Asked Questions
Why do you need my VIN?
Your Vehicle Identification Number (VIN) allows us to program the BCM with the exact software and settings your vehicle had from the factory, plus any available GM updates. This ensures all your specific options (like power locks, keyless entry, etc.) work correctly right out of the box.
Is this BCM difficult to install myself?
For someone with basic DIY skills, this is a very manageable job. The main challenge is accessing the module under the dashboard. Since it comes pre-programmed, there’s no complex computer work required on your end, making it a true plug-and-play repair.
What happens if I don’t provide a VIN?
We cannot ship the module without a VIN. The programming is essential for the part to function in your vehicle. Your order will be held until we receive the VIN from you.
Will this fix my ‘Service Engine Soon’ light?
A BCM typically controls body functions, not engine performance. If your ‘Service Engine Soon’ light is on, you likely have a separate issue with the engine or emissions system. However, a failing BCM can cause a ‘Service Vehicle Soon’ or security light, which this part will correct.
Do I need to send my old BCM back?
No, there is no core charge for this part. You can keep your original module, saving you the hassle and cost of return shipping.
