Tired of Chasing Electrical Gremlins in Your Chevy?
If you’re dealing with bizarre and frustrating issues in your 2000-2004 Monte Carlo or Impala—like power windows with a mind of their own, flickering interior lights, a temperamental security system, or intermittent no-start conditions—the culprit is often a failing Body Control Module (BCM). As the central hub for your car’s body electronics, a faulty BCM can create a cascade of problems that are notoriously difficult to diagnose. This isn’t just an inconvenience; it can affect your vehicle’s security and safety systems.
From the Diagnostic Bay: The Monte Carlo That Wouldn’t Cooperate
I remember a 2002 Monte Carlo SS that came into my shop with a classic case of BCM failure. The owner was at his wit’s end. The radio would turn on and off randomly, the security light was always on, and sometimes the car just refused to start. He’d already replaced the battery and checked the fuses. After connecting my scan tool, I saw multiple communication error codes pointing to the BCM. We installed a VIN-programmed module just like this one, and it was like flipping a switch. All the strange electrical behavior vanished. It’s a common failure on these cars, but thankfully, it’s a straightforward fix with the right part.
Is Your Vehicle Showing These Symptoms?
- ✔ Intermittent or non-working power windows, door locks, or mirrors.
- ✔ The security or anti-theft light stays on, preventing the car from starting (a common Passlock issue).
- ✔ Erratic instrument cluster behavior, with gauges dropping out or warning lights appearing for no reason.
- ✔ Interior dome lights or exterior lights staying on or not working at all.
- ✔ Radio or climate control systems functioning incorrectly.
- ✔ Communication-related Diagnostic Trouble Codes (DTCs) stored in the system.

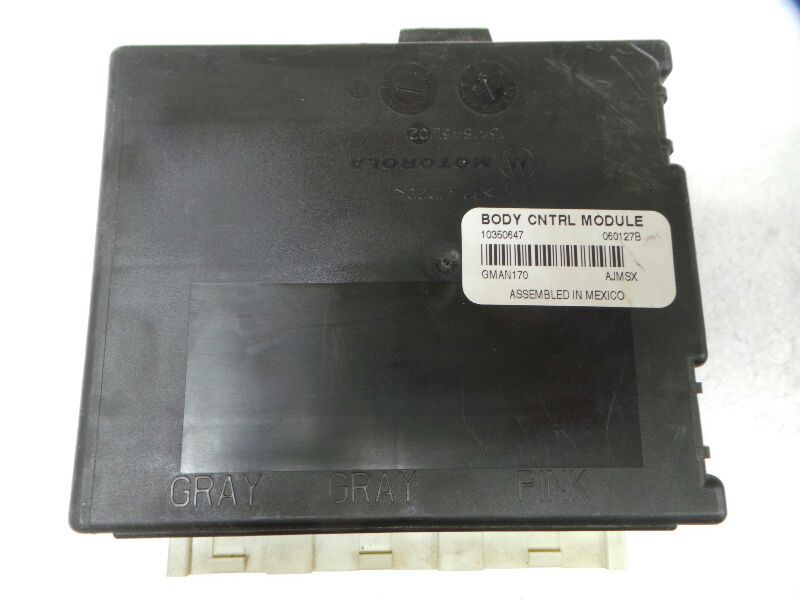

The Simple, Reliable Solution: A VIN-Programmed 2000-2004 Monte Carlo BCM
Forget expensive trips to the dealership for programming. We take the hassle out of the repair by pre-programming this Body Control Module specifically for your car. Simply provide us with your vehicle’s VIN during checkout, and our technicians will flash the unit with the latest GM software updates. This ensures perfect communication between the BCM and your car’s other electronic systems, restoring full functionality right out of the box. Plus, there is no core charge, so you can keep your old part without worrying about returns.
A Straightforward Guide to Installation
- ✔ Safety First: Disconnect the negative terminal from your car’s battery to prevent any electrical shorts.
- ✔ Locate the BCM: On most 2000-2004 Impalas and Monte Carlos, the BCM is located under the driver’s side dashboard, to the left of the steering column.
- ✔ Disconnect and Remove: Carefully unplug the electrical connectors from the old BCM. They have locking tabs that need to be pressed. Once disconnected, remove the screws or clips holding the module in place.
- ✔ Install the New BCM: Mount your new, pre-programmed BCM in the same location and securely reconnect all the electrical connectors.
- ✔ Reconnect Battery: Reattach the negative battery terminal.
- ✔ Perform Relearns (If Needed): Start the vehicle. Follow the post-installation procedures below if you experience any related warning lights.
Important Post-Installation Notes
While this module is programmed for your VIN, some vehicle systems may require a quick sync-up procedure after installation:
- Airbag System Sync: If the airbag warning light is illuminated after installation, a professional scan tool is needed to perform the ‘Setup SDM Primary Key in BCM’ procedure. This syncs the new BCM with the airbag system.
- Brake Pedal Position Relearn: On some models, a brake pedal position sensor recalibration might be necessary to ensure brake lights and traction control work correctly.
Disclaimer: Specific procedures can vary. Always consult a factory service manual or a qualified technician for guidance tailored to your vehicle.
Verified Vehicle Compatibility
This Body Control Module is a direct-fit replacement for the following vehicles and part numbers, ensuring a perfect match for your repair needs.
- Chevrolet Monte Carlo: 2000, 2001, 2002, 2003, 2004 (Body Control, LH steering column)
- Chevrolet Impala: 2000, 2001, 2002, 2003, 2004 (Body Control, LH steering column)
Compatible Service Numbers: 10323612, 10340320, 10350647, 10432318, 10432571, 10438145, 10445875
Frequently Asked Questions
Why do you need my VIN?
Your VIN (Vehicle Identification Number) allows us to program the BCM with the exact software and settings for your car’s specific options. This makes the installation process much smoother and avoids a costly trip to the dealer for programming.
Is this BCM difficult to install myself?
For someone with basic mechanical skills, the installation is very manageable. The BCM is typically located under the dash and held in by a few clips or screws. The main challenge is working in a tight space. Our pre-programming saves you the most difficult step.
What happens if the airbag light comes on after I install it?
This is a normal security measure. The new BCM needs to be electronically ‘introduced’ to the airbag module (SDM). This requires a bi-directional scan tool to perform the ‘Setup SDM Primary Key’ procedure. Many local repair shops can perform this service for you.
Is there a core charge for this part?
No, there is absolutely no core charge. You are not required to send your old, faulty BCM back to us, saving you time and shipping costs.
Will this fix my car’s security light and no-start problem?
A failing BCM is one of the most common causes of Passlock security system issues in these vehicles. Replacing it with our VIN-programmed module is a highly effective solution for these specific symptoms.
