If you’re dealing with baffling electrical issues, poor engine performance, or a no-start condition in your Cadillac, the Powertrain Control Module (PCM) is often the culprit. As a technician with over two decades of experience, I’ve seen firsthand how a failing engine computer can cause symptoms that mimic a dozen other problems. This isn’t just a replacement part; it’s a direct solution to restore your vehicle’s reliability and performance, delivered ready for installation.

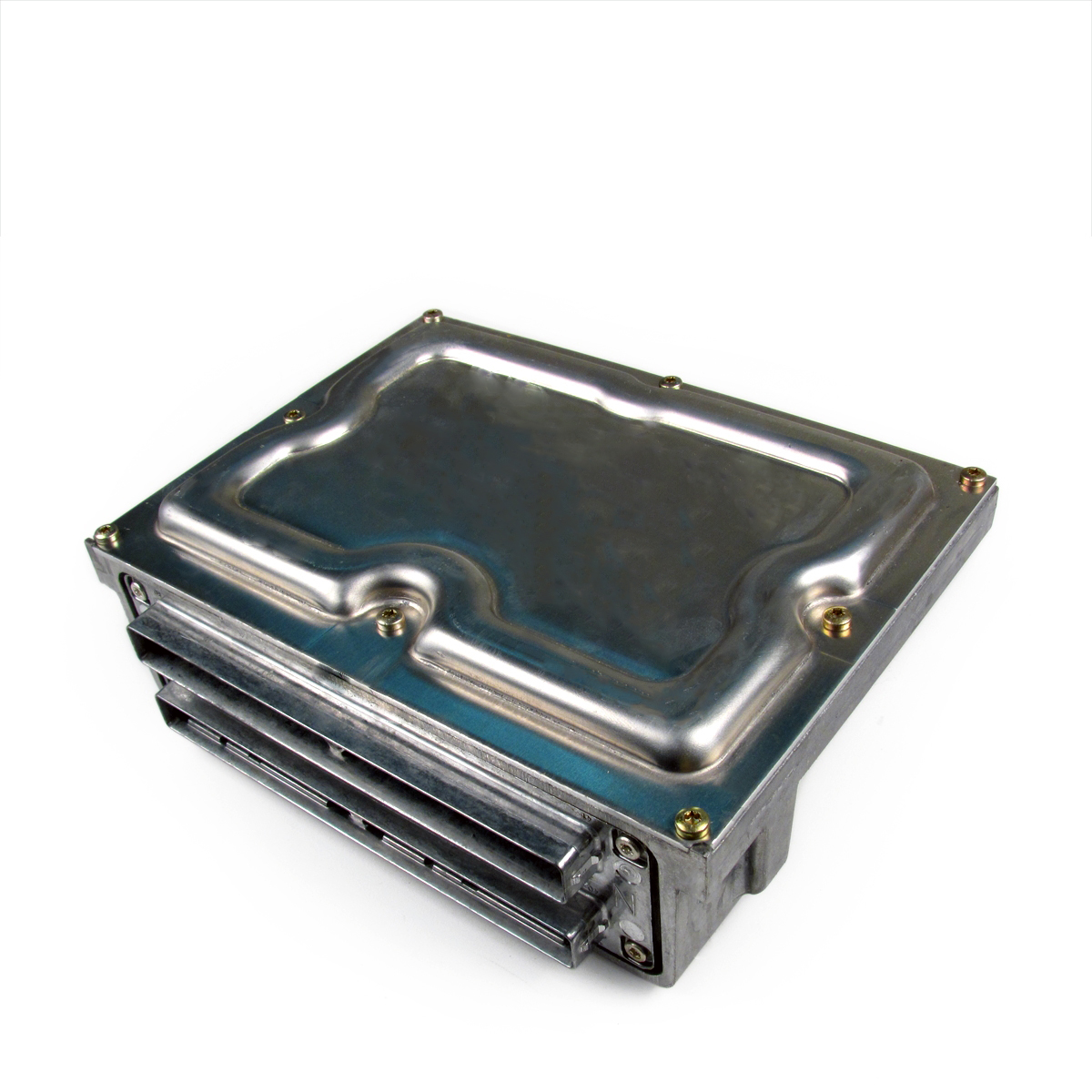

This is a genuine GM-spec PCM, service number 12573503, that arrives at your door pre-programmed with the latest factory software updates. All we need is your vehicle’s 17-digit VIN during checkout. This critical step ensures that the module communicates perfectly with your car’s specific systems—from the transmission to the anti-theft security. By handling the programming for you, we eliminate the need for an expensive trip to the dealership, saving you time and hundreds of dollars in labor. This is the smart, efficient way to get your Eldorado, DeVille, or Seville running right again.
From the Diagnostic Bay: The Ghost in the Machine
I remember a 2001 Cadillac DeVille that came into my shop with a complaint of random stalling at traffic lights and a transmission that shifted harshly. The owner had already replaced the throttle position sensor and the mass airflow sensor with no luck. A quick scan showed no hard codes, just a few intermittent communication faults. This is a classic sign. The original PCM was failing internally, corrupting data just enough to cause chaos without setting a specific code. We installed a VIN-programmed module just like this one, and the car ran perfectly. It’s a reminder that sometimes the ‘brain’ is the problem, not the ‘body’.
Is Your Cadillac Showing These Symptoms?
A faulty PCM can manifest in numerous ways. If you’re experiencing any of the following, this module is the likely solution:
- ✔ Unexplained Check Engine Light (CEL)
- ✔ Engine stalling, stumbling, or hesitating
- ✔ Harsh or erratic automatic transmission shifting
- ✔ Complete no-start condition where the engine cranks but won’t fire
- ✔ Poor fuel economy
- ✔ Failed emissions test
- ✔ Diagnostic Trouble Codes (DTCs) such as P0601 (Internal Control Module Memory Check Sum Error) or other U-series communication codes.
A Straightforward Guide to Installation
Replacing the PCM on these vehicles is a job most DIYers can handle with basic tools. Our pre-programming makes it even simpler. After installation, you may need to perform a security relearn procedure, which is a simple process that can be done without special tools.
- Safety First: Disconnect the negative terminal from your vehicle’s battery and wait at least 10 minutes to allow all capacitors to discharge.
- Locate the Module: On most of these Cadillac models, the PCM is located in the engine bay on the driver’s side (LH), often near the air filter housing or firewall.
- Disconnect Connectors: Carefully release the locking tabs and unplug the main wiring harness connectors from the old PCM. Inspect them for any corrosion or damage.
- Remove the Old PCM: Unbolt the mounting hardware holding the old module in place and remove it from the vehicle.
- Install the New PCM: Mount your new, pre-programmed PCM in the same location and secure it with the original hardware.
- Reconnect Everything: Plug the wiring harnesses firmly into the new module until they click into place. Reconnect the negative battery terminal.
- Perform Security Relearn: Turn the key to the ‘ON’ position (without starting) for 10-15 minutes. The security light should turn off. Turn the key off for 10 seconds, then start the vehicle. It’s now ready to drive.
Verified Vehicle Compatibility
This module is a direct-fit replacement for several GM vehicles and is compatible with service numbers 12573503, 12562481, 12571591, and 12573650. Please verify your application below:
- ✔ 2000-2002 Cadillac Eldorado (LH engine compartment)
- ✔ 2000-2003 Cadillac DeVille (LH engine compartment)
- ✔ 2000-2003 Cadillac Seville (LH engine compartment)
- ✔ 2001-2002 Oldsmobile Aurora (4.0L, LH engine compartment)
- ✔ 2003 Oldsmobile Aurora
- ✔ 2006 Chevrolet SSR (Next to air box, ID 12573503)
Frequently Asked Questions
How do I provide my VIN?
After completing your purchase, you can send us a message with your 17-digit Vehicle Identification Number (VIN). We cannot program and ship your module without it.
Is any additional programming needed after installation?
No. We flash the module with the latest GM updates matched to your VIN, so it’s ready to install. You will only need to perform the simple, tool-free security relearn procedure detailed in the installation guide.
What if my original part number is different?
This module, service number 12573503, replaces several older part numbers, including 12562481 and 12571591. As long as your vehicle is on the compatibility list, this part will function correctly.
Where is the PCM located on my 2001 Eldorado?
On the 2000-2002 Cadillac Eldorado, the PCM (or ECM) is found in the engine compartment on the driver’s side (left-hand side), typically mounted near the firewall or strut tower.
Will this fix my transmission shifting problems?
In many cases, yes. The PCM controls both engine and transmission functions. If the module itself is faulty, it can cause poor shift quality, hesitation, or incorrect gear selection. Replacing it often resolves these issues.
