Is Your 1998 Dodge Ram Running Rough?
There’s nothing more frustrating than when your dependable Dodge truck starts acting up. Whether it’s stalling at intersections, struggling to start, or throwing a confusing array of check engine lights, these problems often point to a single, critical component: the Engine Control Module (ECM). The ECM is the brain of your truck’s 5.9L V8 engine, managing everything from fuel injection and ignition timing to transmission shifting. When it fails, the symptoms can be unpredictable and difficult to diagnose, leaving you stranded and searching for a reliable solution.
From the Diagnostic Bay
I remember a 1998 Dodge Ram 2500 that came into the shop a few years back. The owner had spent a small fortune replacing the throttle position sensor, crank sensor, and even the fuel pump. The truck would start and run, but it shifted erratically and had a persistent check engine light for a transmission solenoid circuit. After hours of chasing wires, we finally tested the ECM’s output drivers. It turned out the ECM itself was failing, sending faulty signals that made other components appear defective. We installed a correctly programmed module, and the truck ran perfectly. This is a classic case where the root cause is the computer, not the parts it controls.
Symptoms of a Failing 1998 Dodge 2500 ECM
- âś” Check Engine Light is on with various, seemingly unrelated codes.
- âś” Engine cranks but refuses to start.
- âś” Rough or inconsistent idling.
- âś” Stalling or hesitation during acceleration.
- âś” Poor fuel economy.
- âś” Harsh or erratic automatic transmission shifting.
- âś” Misfire codes (P0300-P0308) even after replacing plugs, wires, and coils.
- âś” Complete loss of communication with diagnostic scan tools.
The Direct-Fit, Programmed Solution: Part 56046347AD
Don’t let a faulty computer keep your truck off the road. This Engine Control Module is a direct-fit replacement for your 1998 Dodge Ram 1500, 2500, or 3500 equipped with the 5.9L (360ci) V8 engine and an automatic transmission. The biggest advantage is our professional programming service. We flash the module with your truck’s specific Vehicle Identification Number (VIN) and current mileage before it ships. This means the unit arrives at your door completely ready for installation. It’s a true Plug-and-Play solution, eliminating the need for an expensive trip to the dealership for programming.
This module is located on the right-hand (passenger side) firewall in the engine bay. Installation is straightforward and can be performed by a competent DIY mechanic with basic hand tools. Simply disconnect the battery, unplug the electrical connectors from your old ECM, unbolt it from the firewall, and install the new one in its place. Reconnect everything, and you’re ready to start your truck.
Compatibility and Part Numbers
This ECM is a direct replacement for a wide range of original part numbers, ensuring broad compatibility. If your original module has any of the following numbers, this unit will work for your vehicle:
- 05014152AA
- 56040564AA
- 56046347AA
- 56046347AB
- 56046347AC
- 56046347AD
- 56046347AE
- 56046347AF
- 56046347AG
Frequently Asked Questions
What does “Plug & Play” actually mean?
Plug & Play means the engine computer we send you is pre-programmed with your vehicle’s specific VIN and mileage. Once you receive it, you can install it directly into your truck without needing any additional programming from a dealership or specialized mechanic. It’s ready to function immediately.
Where is the ECM located on my 1998 Dodge truck?

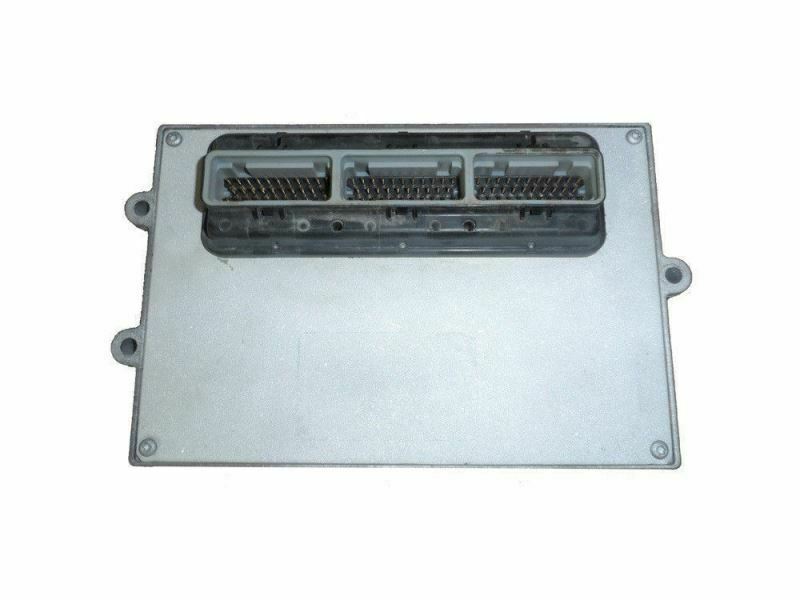

The ECM is mounted in the engine compartment on the passenger-side firewall. It is a silver metal box with three large electrical connectors. You’ll need to remove the air filter housing on some models for easier access.
Do I need to send my old computer back?
Please check the purchasing options for information on a core deposit. In many cases, we require the old unit (the “core”) to be returned so its components can be properly processed. A return shipping label is often included to make this process simple.
Will this fix my transmission shifting problems?
In many 1998 Dodge trucks, the ECM also controls the automatic transmission. If your shifting problems are caused by faulty signals from the computer, then yes, replacing the ECM can resolve them. However, it will not fix mechanical issues within the transmission itself.
How do I provide my VIN and mileage for programming?
After you place your order, you will be prompted to provide your vehicle’s VIN and mileage. Please ensure this information is accurate, as it is critical for the programming process. The VIN can be found on your vehicle’s dashboard (visible through the windshield) or on the driver’s side door jamb sticker.
