If you’re dealing with bizarre electrical problems in your 1998-2000 GM truck or SUV, you’ve likely met the culprit: a failing Body Control Module (BCM). As a technician with over two decades of experience, I’ve seen firsthand how a bad BCM can turn a reliable vehicle into a source of constant frustration. One day the power locks don’t work, the next the interior lights are having a party of their own. This isn’t just an annoyance; it can be a real safety issue when it affects exterior lighting or security systems.
This is your direct, no-hassle solution. We provide a high-quality replacement BCM that is professionally programmed to your vehicle’s specific VIN before it ever leaves our facility. This means you can skip the expensive trip to the dealership and the high cost of their programming services. Simply provide your VIN during checkout, and we’ll handle the rest, loading the latest GM software to ensure optimal performance and compatibility. This is the most effective way to restore the complex body functions of your vehicle and get back on the road with confidence.
A Technician’s Notebook
I remember a 1999 Chevy S10 that came into the shop with a classic “haunted truck” complaint. The owner said the dome light would randomly come on while driving, the radio would shut off, and the security light was flashing intermittently, sometimes preventing the truck from starting. He’d already replaced the battery and checked all the fuses. After connecting my scan tool, I saw a handful of communication error codes pointing toward the BCM. Instead of a lengthy diagnostic and a trip to the dealer for a new, un-programmed module, a pre-programmed unit like this one would have been the perfect fix. It would have saved the customer hundreds in labor and programming fees and had him back on the road the same day.
Is Your Truck Exhibiting These BCM Failure Signs?
A failing BCM can manifest in numerous ways. If you’re noticing any of the following, it’s a strong indicator that your module needs replacement:
- ✔ Erratic or non-functional power windows, door locks, or mirrors.
- ✔ Interior or exterior lights that flicker, stay on, or don’t work at all.
- ✔ The security system light is on or flashing, potentially causing a no-start condition.
- ✔ Intermittent operation of the radio or instrument cluster gauges.
- ✔ False door ajar warnings on the dashboard.
- ✔ Communication error codes (U-codes) when scanned with a diagnostic tool.
Your Straightforward BCM Installation Guide
Replacing the BCM is a manageable job for a DIY enthusiast. The module is typically located behind the dashboard. While specific locations vary slightly, the general process is as follows:
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait at least 15 minutes before beginning work.
- Locate the BCM: On S10/Sonoma/Blazer/Jimmy models, it’s usually in the center dash area, often near the radio. On full-size trucks and vans, it’s typically on the driver’s side, behind the lower dash panel.
- Remove Trim Panels: Carefully remove any plastic trim or dash components necessary to access the module.
- Unplug and Unbolt: Disconnect the electrical connectors from the old BCM. They have locking tabs that need to be depressed. Then, remove the bolts or nuts holding the module in its bracket.
- Install the New BCM: Seat the new, pre-programmed BCM into the bracket and secure it. Reconnect all electrical connectors firmly until they click.
- Reassemble and Reconnect: Reinstall the dash panels and trim. Finally, reconnect the negative battery terminal.
Important Post-Installation Steps
Because this 1998-2000 S10 BCM is pre-programmed, your vehicle should start and run. However, depending on your exact model and options, a couple of system syncs may be required:
- Airbag System Sync: If your airbag warning light is on after installation, a procedure called “Setup SDM Primary Key in BCM” must be performed. This requires a professional-grade scan tool to sync the BCM with the airbag module (SDM).
- Brake Pedal Position Relearn: On some models, a brake pedal position sensor relearn may be needed to ensure your brake lights and any associated stability systems function correctly. This can also be done with a capable scan tool.
Verified Fitment For These GM Models

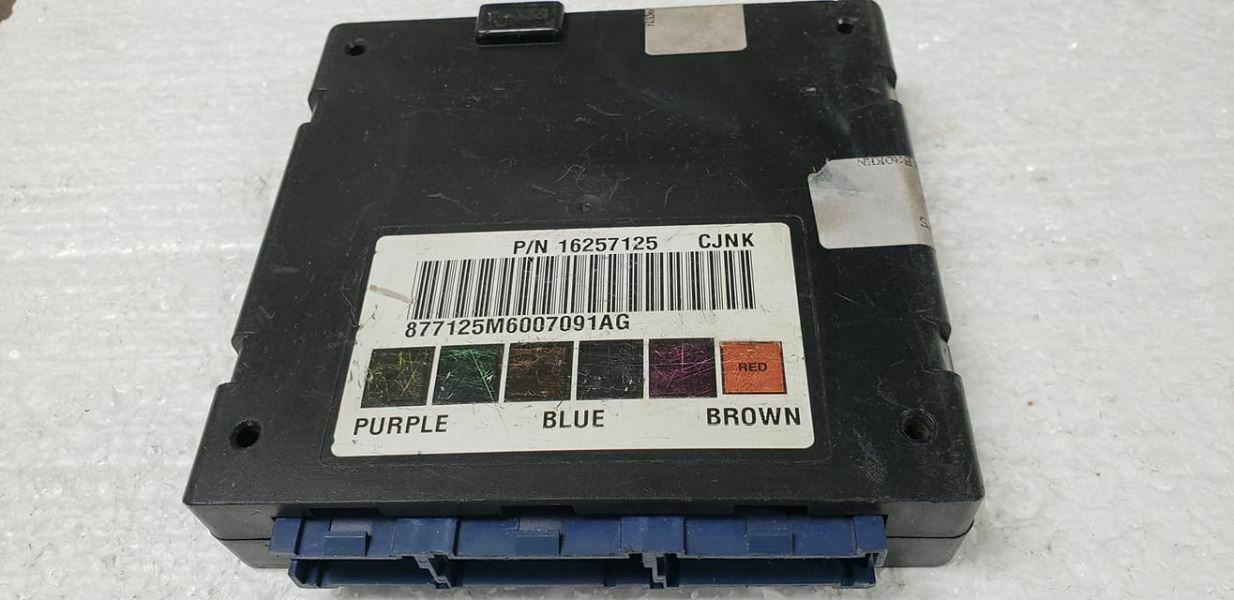

This module is a direct replacement for part numbers 16257125, 09366801, 19153625 and others listed in the fitment data. It is guaranteed to fit the following vehicles:
- ✔ 1998-2000 S10/S15/SONOMA (Body Control, center dash, ID 16257125)
- ✔ 1998-2000 BLAZER S10/JIMMY S15 (Body Control, center dash, ID 16257125)
- ✔ 1999-2000 SIERRA 1500/2500 PICKUP (Body Control, LH dash)
- ✔ 1999-2000 SILVERADO 1500/2500 PICKUP (Body Control, LH dash)
- ✔ 2000 ASTRO / SAFARI (GMC) (Body Control, LH dash)
- ✔ 1999-2000 ISUZU HOMBRE (Body Control, LH dash)
- ✔ 1998 BRAVADA (Body Control, center dash, w/ extended build date opt ZN4)
Frequently Asked Questions
Do I need to send my old BCM back?
No. There is no core charge for this part. You can keep your original module.
What information do you need to program the BCM?
We need your vehicle’s 17-digit Vehicle Identification Number (VIN). Please provide it during or after checkout so we can program the module before shipping.
Is this a plug-and-play part?
Mostly, yes. We program it to your VIN, so your vehicle will start and run. However, as noted above, some vehicles may require an Airbag System Sync or Brake Pedal Position Relearn with a professional scan tool to clear warning lights or restore full function.
Will this 1998-2000 S10 BCM fix my no-start problem?
It can, especially if the no-start is related to the security system (Passlock). A flashing security light is a strong clue that the BCM is the cause. However, a no-start can have many causes, so proper diagnosis is always recommended.
Where is the BCM located on my 2000 Silverado?
On the 1999-2000 Silverado and Sierra models, the Body Control Module is typically located on the driver’s side, up under the dashboard to the left of the steering column.
