Restore Peak Performance to Your GM Vehicle
If you’re dealing with frustrating engine problems in your 1997 GM vehicle—like erratic shifting, a persistent check engine light, or poor fuel mileage—the root cause is often a failing Powertrain Control Module (PCM). As a technician with over two decades of experience, I’ve seen firsthand how a faulty PCM can mimic a dozen other issues, leading to wasted time and money on incorrect repairs. This module, part number 19109047, is the vehicle’s central computer, and when it falters, the entire powertrain suffers. This isn’t just a part; it’s the solution to get your car running smoothly and reliably again.
We take the guesswork and extra cost out of the equation. Unlike a generic module from a salvage yard, each unit we ship is meticulously programmed with the latest GM software updates specifically for your car. All we need is your vehicle’s 17-digit VIN at checkout. This ensures that when you receive your 1997 Monte Carlo PCM, it’s a true plug-and-play solution, restoring factory communication between your engine and transmission for optimal performance and efficiency.
From the Diagnostic Bay: The Ghost Misfire
I remember a 1997 Pontiac Grand Prix GTP with the supercharged 3.8L that came into my shop. The owner had already replaced plugs, wires, and even the ignition coil pack chasing a random misfire (P0300) and an intermittent stalling condition. The car would run fine for days, then suddenly act up. After confirming the fuel and ignition systems were healthy, we hooked up an advanced scanner and monitored the PCM data streams. We noticed the injector pulse width commands were becoming erratic just before a stall. We swapped in a VIN-programmed PCM, and the problem vanished instantly. The original module had failing internal drivers, a common issue on these older units that a simple code reader won’t always pinpoint.
Common Signs of a Failing PCM
A failing computer can cause a wide range of symptoms. If your vehicle is experiencing any of the following, a faulty PCM could be the culprit:
- ✔ Check Engine Light is on with codes like P0601 (Internal Control Module Memory Check Sum Error) or P0605 (Read Only Memory Error).
- ✔ The engine cranks but refuses to start.
- ✔ Unexplained drops in fuel economy.
- ✔ Harsh or erratic automatic transmission shifting.
- ✔ The engine stalls intermittently, especially when warm.
- ✔ Failure to pass an emissions test.
- ✔ Communication errors with diagnostic scan tools.
A Straightforward Guide to Installation
Replacing the PCM in these GM vehicles is a manageable job for a DIYer with basic tools. Follow these steps for a successful installation:
- Safety First: Disconnect the negative terminal from your vehicle’s battery and secure it away from the post to prevent accidental reconnection.

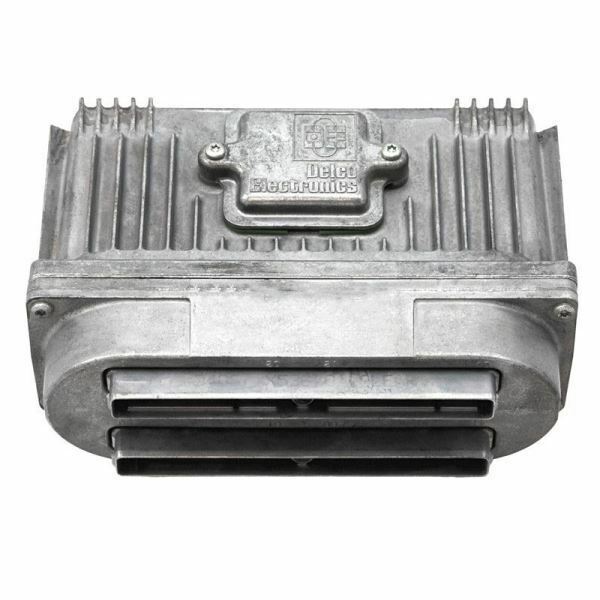

- Locate the PCM: On most of these models, the PCM is located inside the engine bay, often attached to or near the air filter housing. It’s a silver metal box with multiple large wiring harness connectors.
- Disconnect the Harnesses: Carefully release the locking tabs on each electrical connector and pull them straight out from the module. Avoid pulling on the wires themselves. Some connectors have a lever or bolt to assist in removal.
- Remove the Old Module: Unbolt the mounting hardware that secures the old PCM to its bracket or the vehicle body. Remove the old module.
- Install the New Module: Mount your new, VIN-programmed 1997 Monte Carlo PCM in place and secure it with the original hardware.
- Reconnect Everything: Firmly plug the wiring harnesses back into the new PCM, ensuring all locking tabs click into place. Reconnect the negative battery terminal.
- Final Step: Some vehicles may require a security relearn procedure, which typically involves cycling the key in the ignition. Consult a service manual for your specific model’s procedure if the vehicle does not start immediately.
Verified Vehicle Compatibility
This module is a direct-fit replacement for the original parts 19109047 and 16227797 on the following 1997 models:
- Buick Park Avenue: with 3.8L (6-231) Engine
- Buick Regal: with Supercharged 3.8L (6-231) Engine
- Buick Riviera: with 3.8L (6-231) Engine
- Chevrolet Camaro: with 3.8L (6-231) Engine
- Chevrolet Lumina Car: with 3.4L (6-207) Engine
- Chevrolet Monte Carlo: with 3.4L (6-207) Engine
- Oldsmobile Eighty Eight: with Supercharged 3.8L (6-231) Engine
- Pontiac Bonneville: with Supercharged 3.8L (6-231) Engine
- Pontiac Firebird: with 3.8L (6-231) Engine
- Pontiac Grand Prix: with Supercharged 3.8L (6-231) Engine
Frequently Asked Questions
Frequently Asked Questions
Do I need to get this module programmed?
No. We handle all the programming for you before shipment. Simply provide your vehicle’s VIN during checkout, and it will arrive ready to install.
What is a VIN and where do I find it?
The VIN is your car’s 17-digit Vehicle Identification Number. You can find it on the driver’s side of the dashboard (visible through the windshield), on your vehicle’s registration, or on the driver’s side door jamb sticker.
Is this a difficult part to replace myself?
For most DIY enthusiasts with basic hand tools, this is a straightforward replacement. The most important part is ensuring the battery is disconnected and the harness connectors are handled carefully.
Will this fix my check engine light?
If the check engine light is caused by an internal failure of the PCM (like code P0601), then yes, this part is the correct fix. It’s always best to have the codes read with a scanner to confirm the diagnosis before ordering.
Is this compatible with other part numbers?
Yes, this module is a direct replacement for both part numbers 19109047 and 16227797.
