Restore Peak Performance to Your 1997 GM Vehicle

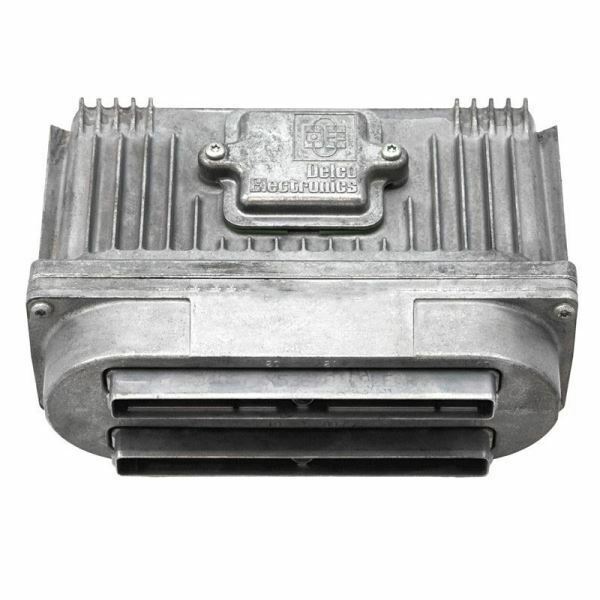

Is your vehicle suffering from a persistent check engine light, erratic shifting, or a frustrating no-start condition? As a technician with over two decades of experience, I’ve seen countless drivers replace expensive sensors only to find the root cause was a failing Powertrain Control Module (PCM). This module is the central computer for your engine and transmission, and when it falters, the entire vehicle’s performance suffers. This replacement PCM, part number 16218070, is the definitive solution to get your car running reliably again.
The biggest hurdle with PCM replacement has always been the expensive and time-consuming programming required at a dealership. We eliminate that step entirely. Before we ship your part, our experts will flash this module with the latest factory software from GM, specifically matched to your vehicle’s unique Vehicle Identification Number (VIN). This ensures that once it arrives, it’s a true plug-and-play solution, restoring factory-spec fuel economy, emissions, and engine performance. This is the most direct path to fixing complex electronic issues and getting back on the road with confidence.
From the Diagnostic Bay: The Case of the Ghostly Sensor Code
A customer brought in a ’97 Grand Prix with the 3.8L V6, a vehicle that uses this exact PCM. The complaint was poor acceleration and a check engine light for a throttle position sensor (TPS) code. They had already replaced the TPS twice with no change. After confirming the new sensor was working correctly, my diagnostic process led me to the PCM. The module’s internal circuits were failing, sending faulty voltage readings that mimicked a bad sensor. We installed a VIN-programmed 1997 Achieva Powertrain Control Module, and the problem was solved instantly. It’s a classic example of how a faulty PCM can send you on a wild goose chase, making this direct replacement a huge time and money saver.
Common Signs of a Failing PCM
- ✔ Persistent Check Engine Light (CEL) that won’t clear.
- ✔ Diagnostic Trouble Codes (DTCs) related to internal module failure, such as P0601 or P0605.
- ✔ Engine stalling, misfiring, or refusing to start.
- ✔ Poor fuel economy and decreased engine power.
- ✔ Harsh or erratic automatic transmission shifting.
- ✔ Communication errors with diagnostic scan tools.
A Straightforward Guide to Installation
- ✔ Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- ✔ Locate the Module: On most of these 1997 GM models, the PCM is located in the engine bay, often inside the air filter box assembly for protection.
- ✔ Disconnect Connectors: Carefully unclip the wiring harness connectors from the old PCM. These connectors have locking tabs that may need to be gently pried up.
- ✔ Remove the Old Unit: Unbolt the old PCM from its mounting bracket and remove it from the vehicle.
- ✔ Install the New PCM: Mount your new, pre-programmed PCM onto the bracket and securely tighten the bolts.
- ✔ Reconnect Everything: Plug the wiring harnesses back into the new module until they click securely in place. Reconnect the negative battery terminal.
- ✔ Final Check: Start the vehicle. It may take a moment to idle smoothly as it completes its initial self-checks. The check engine light should be off, and the vehicle should run smoothly.
Will This Fit My Vehicle?
This module is a direct replacement for part numbers 16218070 and 16217058. It is guaranteed to fit the following 1997 models with the specified options. We use your VIN to ensure the programming is a perfect match for your vehicle’s engine and transmission configuration.
- ✔ 1997 Buick Century (3.1L)
- ✔ 1997 Buick LeSabre (3.8L, w/o supercharger)
- ✔ 1997 Buick Regal (3.8L, w/o supercharger)
- ✔ 1997 Buick Skylark (3.1L)
- ✔ 1997 Chevrolet Lumina (3.1L)
- ✔ 1997 Chevrolet Monte Carlo (3.1L)
- ✔ 1997 Chevrolet Venture (3.4L)
- ✔ 1997 Oldsmobile Achieva (3.1L)
- ✔ 1997 Oldsmobile Cutlass Supreme
- ✔ 1997 Oldsmobile Eighty Eight (3.8L, w/o supercharger)
- ✔ 1997 Oldsmobile Silhouette (3.4L)
- ✔ 1997 Pontiac Bonneville (3.8L, w/o supercharger)
- ✔ 1997 Pontiac Grand Am (3.1L)
- ✔ 1997 Pontiac Grand Prix (3.1L or 3.8L w/o supercharger)
- ✔ 1997 Pontiac Trans Sport (3.4L)
By purchasing this pre-programmed 1997 Achieva Powertrain Control Module, you are choosing a reliable, cost-effective repair that restores your vehicle’s core functionality. Don’t let a faulty computer keep you off the road.
Frequently Asked Questions
Why do you need my VIN?
Your Vehicle Identification Number (VIN) contains critical information about your car’s engine, transmission, and factory options. We use the VIN to load the exact GM-specified software for your vehicle, ensuring perfect compatibility and performance without any additional programming needed.
Is any other programming required after installation?
No. This module arrives ready for installation. In some rare cases on vehicles with advanced anti-theft systems (Passlock/VATS), a simple key relearn procedure may be necessary. This procedure can be done without special tools and instructions can be easily found online or provided by us.
How can I be sure my old PCM is the problem?
Common symptoms include a no-start condition where the engine cranks but won’t fire, multiple unrelated sensor codes, or a specific internal module fault code (like P0601). If you’ve replaced sensors and the problem persists, the PCM is a very likely culprit.
What is the difference between a PCM and an ECM?
The terms are often used interchangeably. ECM (Engine Control Module) typically just controls engine functions. A PCM (Powertrain Control Module) is more integrated and controls both the engine and the automatic transmission, which is standard on these 1997 GM vehicles.
