Is Your Dodge Van Running Rough? The ECM Might Be the Culprit.
If you’re driving a 1996 or 1997 Dodge 1500, 2500, or 3500 Van with the dependable 5.2L (318) V8 engine, you know it’s a workhorse. But when performance starts to suffer, it can be frustrating and difficult to diagnose. Issues like stalling at stoplights, erratic idling, poor fuel economy, or a persistent Check Engine Light often point to a single, critical component: the Engine Control Module (ECM). This module is the brain of your vehicle’s engine, and when it fails, it can cause a cascade of problems that are often misdiagnosed, leading to wasted time and money on unnecessary repairs.

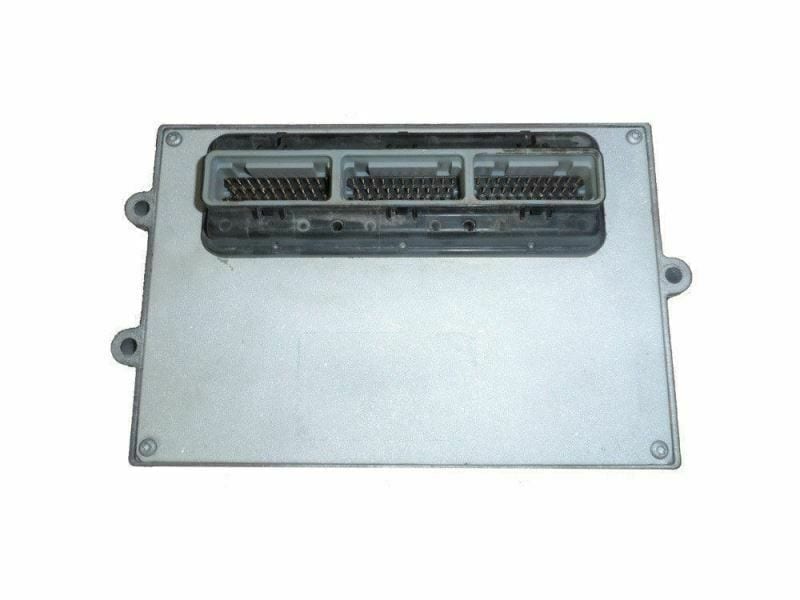

This replacement Engine Control Module, part number 05278326AB, is the definitive solution to restore your van’s reliability and performance. Unlike generic modules that require expensive and complicated programming at a dealership, this unit arrives at your door fully programmed to your vehicle’s specific Vehicle Identification Number (VIN) and mileage. This means it’s a true plug-and-play solution. Simply disconnect the battery, swap the old module with this one, reconnect the battery, and you’re ready to get back on the road. It’s designed to seamlessly integrate with your van’s systems, restoring the precise fuel delivery, ignition timing, and transmission control your engine needs to run at its best.
From the Diagnostic Bay
I remember a customer bringing in his ’97 Dodge 2500 conversion van. He was a contractor and relied on it daily. The problem was an intermittent stall that only happened after it was fully warmed up. He’d already replaced the fuel pump, spark plugs, and idle air control valve with no luck. The van threw a few generic communication codes, but nothing pointed definitively to one sensor. After checking the wiring harness for breaks and testing sensor inputs, we hooked up a scope to the ECM’s main connectors. We found that the 5-volt reference signal would intermittently drop out as the module heated up, causing the engine to shut down. We installed a pre-programmed ECM, and the problem was solved instantly. It saved him from chasing phantom issues and got his business back on the road.
Common Symptoms of a Failing 1996-1997 Dodge Van ECM
A failing engine computer can manifest in numerous ways. If your van is experiencing any of the following issues, a faulty ECM is a likely cause:
- ✔ Check Engine Light: The light may be on constantly or intermittently, often with communication-related trouble codes (U-codes) or multiple, seemingly unrelated sensor codes.
- ✔ Engine Stalling: The engine may stall unexpectedly, either while driving or when coming to a stop. This can be intermittent and often worsens as the engine warms up.
- ✔ No-Start Condition: The engine cranks but refuses to start. This can be caused by the ECM failing to command spark or fuel injector operation.
- ✔ Poor Fuel Economy: A faulty module can’t properly calculate the air-fuel mixture, leading to a noticeable drop in MPG.
- ✔ Rough or Erratic Idle: The van may idle too high, too low, or surge unpredictably.
- ✔ Harsh or Incorrect Shifting: The ECM works with the transmission controller. A failing module can cause delayed shifting, harsh engagement, or getting stuck in a single gear (limp mode).
- ✔ Misfires and Poor Performance: You may experience hesitation during acceleration, a general lack of power, or engine misfires that aren’t resolved by replacing plugs and wires.
The Plug-and-Play Advantage
The primary benefit of this module is its simplicity. For vehicles of this era, finding a new module and then getting it programmed can be a challenge. Dealerships may no longer support the software, and repair shops may not have the correct tools. Our process eliminates this entire headache. We handle all the programming on our end using your VIN. When the part arrives, it has the correct software and security information loaded, allowing it to communicate perfectly with your van’s other systems right out of the box. No extra steps, no additional costs, and no towing your van to a shop for programming.
Installation Guide
Replacing the ECM on your 1996-1997 Dodge Van is a straightforward process. The module is located on the center of the firewall in the engine bay.
- Safety First: Always disconnect the negative terminal of your vehicle’s battery before starting any electrical work.
- Locate the ECM: Open the hood and find the ECM mounted on the firewall, typically behind the engine.
- Disconnect Connectors: Carefully unplug the large electrical connectors from the module. There may be locking tabs that need to be released.
- Remove Mounting Hardware: Unbolt the module from the firewall.
- Install the New Module: Mount your new, pre-programmed ECM in the same location.
- Reconnect Everything: Securely plug in the electrical connectors until they click into place and re-attach the negative battery terminal.
Your installation is complete. The vehicle may take a few drive cycles to fully relearn its operating parameters, but the major issues should be resolved immediately.
Guaranteed Compatibility
This engine computer is a direct replacement for a wide range of original part numbers, ensuring a perfect match for your vehicle. It is compatible with the following models and part numbers:
- Fits: 1996-1997 Dodge 1500, 2500, & 3500 Vans with the 5.2L (8-318) V8 engine and 4-speed automatic transmission.
- Replaces Part Numbers: 4886783, 4886916, 56040732, 56040771, 56040812, 56040883, 05014152AA, 05278326AA, 56040372AA, 56040372AB, 56040372AC, 56040372AD, 05278326AB
What is an ECM and what does it do?
The Engine Control Module (ECM) is a computer that acts as the ‘brain’ of your vehicle’s engine. It takes data from sensors all over the engine (like oxygen sensors, crank/cam sensors, and temperature sensors) to control critical functions like fuel injection, ignition timing, and idle speed to ensure optimal performance, fuel efficiency, and emissions.
Does this ECM require any additional programming?
No. This module is sold as a plug-and-play solution. We flash it with your vehicle’s specific VIN and mileage before it ships, so it arrives ready to be installed without any need for a trip to the dealership or a specialized mechanic for programming.
Where is the ECM located on my 1996-1997 Dodge Van?
The ECM is located in the engine bay, mounted to the center of the firewall, which is the metal wall separating the engine compartment from the passenger cabin.
Will this fix my van’s transmission shifting problems?
In many cases, yes. The ECM plays a crucial role in controlling transmission functions on these vans. If the ECM is failing, it can send incorrect signals, leading to harsh shifting, hunting for gears, or being stuck in ‘limp mode’. Replacing a faulty ECM often resolves these transmission-related symptoms.
How do I provide my VIN for programming?
After you place your order, you will be prompted to provide your vehicle’s 17-digit VIN. This is crucial for us to program the module correctly for your specific van. Please double-check the VIN for accuracy before submitting.
