Restore Your SUV’s Electrical Functions and End the Frustration

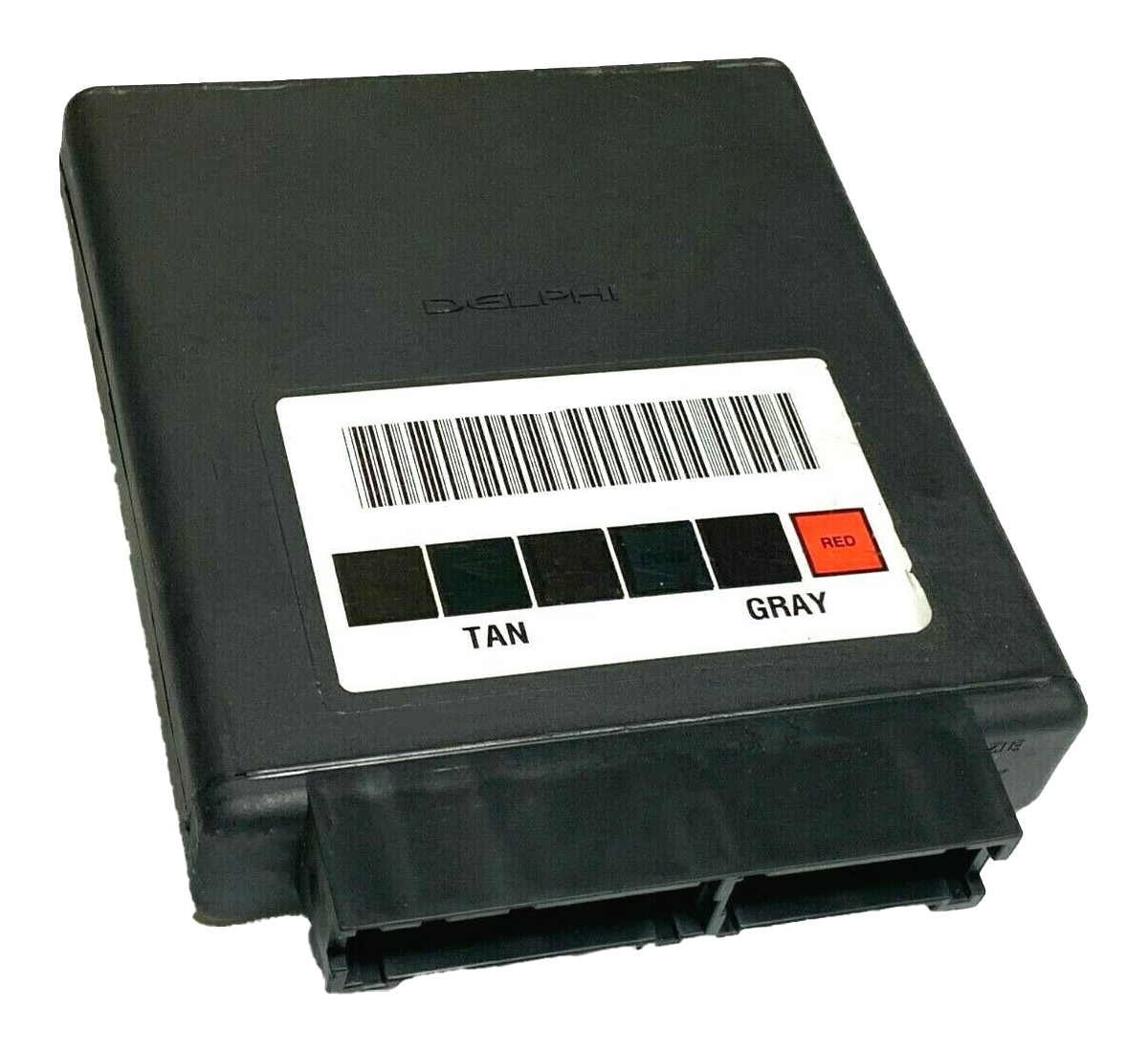

Are you dealing with bizarre electrical issues in your Trailblazer, Envoy, or other GM SUV? Power windows with a mind of their own, dashboard lights flickering, or accessories that just won’t work? It’s a frustrating experience that points directly to a failing Body Control Module (BCM). As the central command center for your vehicle’s body electronics, a faulty BCM can make your daily drive a nightmare. This isn’t just an inconvenience; it can affect vehicle security and safety systems. We offer a reliable, direct-fit solution with this 2002-2005 Trailblazer BCM, programmed specifically for your vehicle.
Case Study: A Tricky Diagnosis
I remember a 2004 Envoy that came into my shop last winter. The owner was at his wit’s end. The radio would cut out, the driver’s side window wouldn’t roll down, and the interior dome lights stayed on intermittently, draining the battery. He had already replaced the window switch and checked all the fuses. After connecting my scan tool, I saw a slew of ‘U’ series communication codes, indicating a network problem. This is a classic sign. The BCM acts as a gateway for these systems. After confirming power and ground to the module, it was clear the BCM itself was failing internally. We installed a VIN-programmed module, and all the strange symptoms vanished instantly. This is a common failure on these GMT360 platform vehicles, often due to age or voltage irregularities.
What are the Signs of a Failing BCM?
A failing BCM can cause a wide range of confusing symptoms. If your vehicle is experiencing any of the following, it’s a strong indicator that your Body Control Module needs replacement:
- ✔ Erratic or non-functional power windows, door locks, and mirrors.
- ✔ Interior or exterior lights that don’t work correctly or stay on.
- ✔ Malfunctioning security system or keyless entry.
- ✔ Inaccurate or dead gauges on the instrument cluster.
- ✔ Radio or climate control systems behaving unpredictably.
- ✔ Diagnostic Trouble Codes (DTCs) related to communication errors, such as U0140, U0155, or U0164.
A Straightforward Guide to Installation
Replacing the BCM on these vehicles is a job most DIYers can handle with basic tools. Our VIN-programming service makes it much simpler than a trip to the dealership.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait a few minutes to ensure all systems are powered down.
- Locate the BCM: On most of these models (like the Trailblazer and Envoy), the BCM is located under the rear seat on the driver’s side, often integrated with the fuse box. In the Envoy XUV, it’s under the rear floor panel.
- Disconnect and Remove: Carefully unplug the electrical connectors from the old BCM. They have locking tabs, so be gentle. Once disconnected, unbolt or unclip the module from its mounting bracket.
- Install the New BCM: Mount your new, pre-programmed BCM in the same location. Securely reconnect all electrical connectors, ensuring they click into place.
- Reconnect and Test: Reconnect the negative battery terminal. Turn the key to the ‘On’ position and test all body functions—windows, locks, lights, radio, etc.—to confirm the repair.
Important Post-Installation Information
While our VIN programming handles the majority of the setup, some vehicles may require additional steps to ensure all systems communicate correctly. Please be aware of the following possibilities:
- Airbag System Sync: If your airbag warning light is on after installation, a professional scan tool is needed to perform the “Setup SDM Primary Key in BCM” procedure. This syncs the new BCM with the airbag system. This is only necessary if the light appears.
- Brake Pedal Position Relearn: On some models, a brake pedal position sensor recalibration might be required to ensure proper operation of the brake lights and traction control system.
Disclaimer: Vehicle systems can vary. We always recommend consulting a factory service manual or a certified technician if you are unsure about any procedure.
Verified Vehicle Compatibility
This BCM is a direct replacement for part numbers 15122670, 15065293, 15114669, 15191621, and 9352135. It is guaranteed to fit the following models (without security system unless noted):
- 2002-2005 Chevrolet Trailblazer & Trailblazer EXT
- 2002-2005 GMC Envoy, Envoy XL, & Envoy XUV
- 2002-2004 Oldsmobile Bravada
- 2004-2005 Buick Rainier
- 2003-2005 Isuzu Ascender
- 2005 Saab 9-7X
Frequently Asked Questions
How does the VIN programming work?
After you place your order, you’ll need to provide us with your vehicle’s 17-digit VIN. Our technicians use this to load the latest GM-certified software onto the BCM, ensuring it matches your vehicle’s specific options and configuration before we ship it.
Do I need to send my old BCM back?
No, there is no core charge for this part. You can keep your original module, which simplifies the process and saves you money on return shipping.
Is this a difficult part to install myself?
For someone with basic mechanical skills, this is a very manageable job. The BCM is typically easy to access, and since we program it beforehand, there are no complex computer procedures required for the basic installation.
What tools are needed for the post-installation procedures?
If the airbag light comes on or a brake sensor relearn is needed, these procedures require a high-level, bi-directional diagnostic scan tool, like a Snap-on Solus, Autel MaxiSYS, or a GM Tech 2. Most basic code readers cannot perform these functions.
Will this fix my specific electrical problem?
This module is the solution for the vast majority of the strange electrical issues these SUVs experience. If your symptoms match the list provided (erratic windows, lights, locks, etc.), a failing BCM is the most probable cause.
