Restore Your Vehicle’s Performance and Reliability

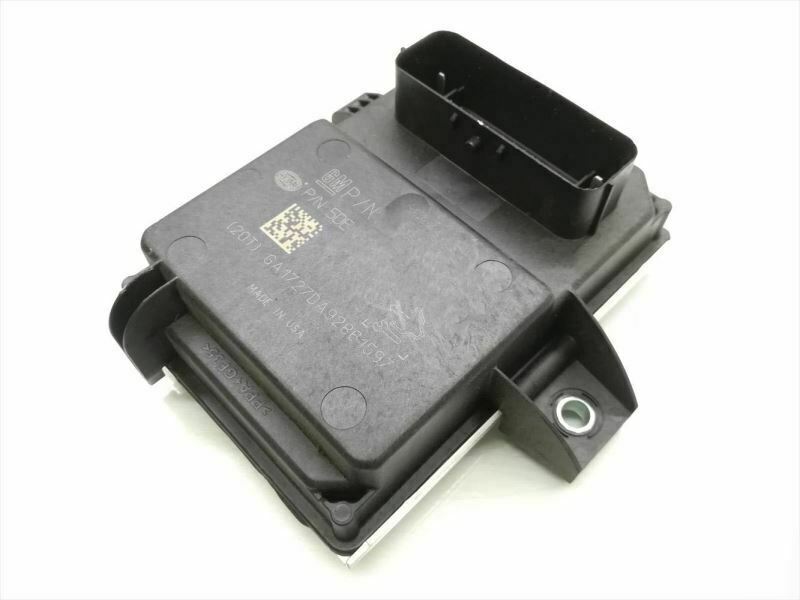

Is your 2010 Chevrolet Equinox, Camaro, or GMC Terrain suffering from frustrating and unpredictable engine problems? Symptoms like stalling at intersections, extended cranking before the engine starts, or a sudden loss of power can be more than just an annoyance—they can be a serious safety concern. Often, the root cause isn’t the fuel pump itself, but its electronic brain: the Fuel Pump Control Module (FPCM), also known as a Fuel System Control Module (FSCM).
As a technician with over two decades of experience, I’ve seen countless drivers replace their fuel pumps only to find the problem persists. The issue frequently lies with a failed FPCM. This module is critical for regulating the voltage sent to the fuel pump, ensuring your engine receives the precise amount of fuel it needs under all driving conditions. When it fails, fuel delivery becomes erratic, leading to the performance issues you’re experiencing. This is the definitive solution to get your vehicle running smoothly and reliably again.
Case Study: A Tricky Diagnosis
A customer brought in their 2010 Equinox with a complaint that stumped two other shops: intermittent stalling in stop-and-go traffic. They had already replaced the fuel pump, but the issue remained. Hooking up my diagnostic scanner, I monitored the fuel pump command data and saw the requested pressure was correct, but the actual pressure would suddenly drop off, causing the stall. There were no hard codes, just a pending P069E (Fuel Pump Control Module Requested MIL Illumination). This pointed directly to the FPCM failing under load. We installed a VIN-programmed 2010 Equinox Fuel Module, and the problem was solved instantly. This saved the customer from further guesswork and unnecessary expenses.
Key Benefits of This Pre-Programmed Module
- ✔ Eliminates Guesswork: This module is a direct-fit replacement for part numbers 20831727, 20831728, and 20875846.
- ✔ Plug-and-Play Installation: We flash the module with the latest GM software using your vehicle’s VIN. This means no expensive trip to the dealership for programming is required.
- ✔ Restores Proper Fuel Delivery: Corrects common symptoms like engine hesitation, stalling, long crank times, and poor acceleration.
- ✔ Solves Common DTCs: A new FPCM is often the solution for diagnostic trouble codes like P069E, P2635, and other fuel system communication errors.
- ✔ Cost-Effective Repair: Save hundreds of dollars in dealership labor and programming fees by installing this ready-to-go part yourself.
A Straightforward Guide to Installation
- ✔ Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- ✔ Locate the Module: On the 2010 Equinox and Terrain, the FPCM is typically found in the left-hand rear compartment area inside the vehicle. On the Camaro, its location may vary slightly but is generally in the trunk area.
- ✔ Disconnect and Remove: Carefully unplug the electrical connectors from the old module. Then, unbolt the module from its mounting bracket.
- ✔ Install the New Module: Bolt the new, pre-programmed FPCM into place. Ensure it is securely mounted.
- ✔ Reconnect and Finalize: Plug the electrical connectors firmly into the new module. Reconnect the negative battery terminal. The vehicle is now ready to start with no further programming needed.
Verified Vehicle Compatibility
This module is guaranteed to be a correct fit for the following vehicles. After purchase, please provide your VIN so we can ensure perfect programming before shipment.
- 2010 Chevrolet Equinox (Fuel Pump; located in LH rear compartment)
- 2010 Chevrolet Camaro (Fuel Pump)
- 2010 GMC Terrain (Fuel Pump; located in LH rear compartment)
