Restore Your Camaro’s Performance and Reliability
Is your 2010 Chevrolet Camaro suffering from frustrating and unpredictable drivability issues? Symptoms like long crank times, sudden stalling, hesitation under acceleration, or a persistent Check Engine Light can often be traced back to a single, critical component: the Fuel Pump Control Module (FPCM). As a technician with over two decades of experience, I’ve seen firsthand how a failing FPCM can mimic a bad fuel pump, leading to incorrect diagnoses and wasted money. This module is the brain behind your fuel delivery system, and when it falters, your engine’s performance suffers.

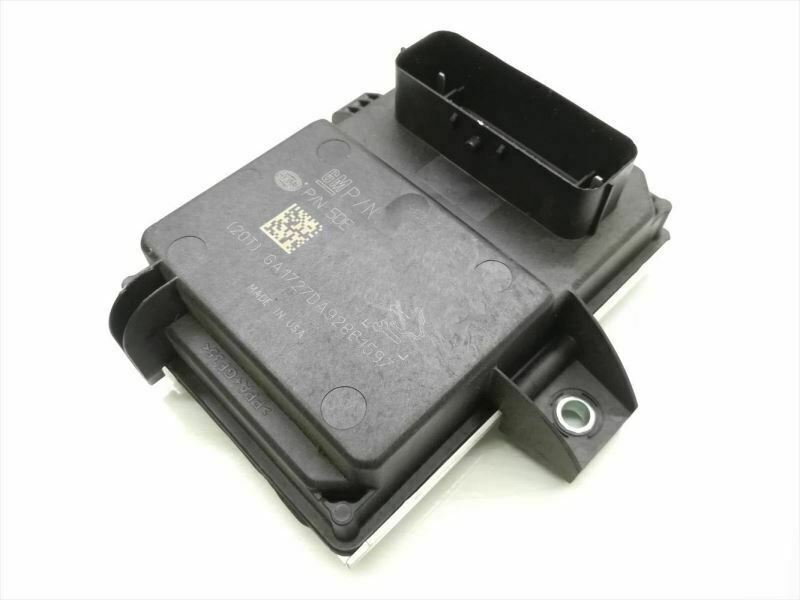

We offer a dependable and straightforward solution. This genuine GM Fuel Pump Control Module, part number 20831728, is the exact component you need to get your vehicle running correctly again. The best part? We eliminate the most significant hassle of this repair. Before we ship the part, we will program it with the latest official GM software, specifically matched to your vehicle using your VIN. This means no expensive trip to the dealership for programming is required. It arrives at your door ready for installation, making this a true plug-and-play fix for both professional mechanics and dedicated DIY enthusiasts.
From the Diagnostic Bay: The Intermittent Stall Case
I remember a 2010 Camaro that came into the shop with a classic complaint: it would randomly stall at red lights and sometimes hesitate badly when pulling away from a stop. The owner had already replaced the fuel pump, assuming it was the culprit, but the problem persisted. When I hooked up my scanner, I saw no hard codes, just a history of low fuel pressure warnings (P0087) that were intermittent. Instead of just looking at the pump, I monitored the FPCM command signal. I noticed the module would erratically drop the voltage to the pump, causing the pressure to plummet and the engine to stall. A new, correctly programmed 2010 Camaro Fuel Pump Control Module solved the problem instantly. It’s a powerful reminder that diagnosing the entire system, not just the most obvious part, is key to an effective repair.
Common Signs of a Failing FPCM
If your vehicle is experiencing any of the following, a faulty Fuel Pump Control Module could be the cause. Look out for these common indicators and associated Diagnostic Trouble Codes (DTCs):
- ✔ Engine cranks but will not start
- ✔ Stalling, especially when warm or under load
- ✔ Severe hesitation or loss of power during acceleration
- ✔ Rough or unstable idle
- ✔ Check Engine Light (CEL) illuminated
- ✔ Common DTCs: P069E, P0230, P025A, U0109 (Lost Communication with FPCM)
A Straightforward Guide to Installation
Installing your new 2010 Camaro Fuel Pump Control Module is a manageable job for someone with basic mechanical skills. For the 2010 Camaro, the module is typically located in the trunk on the driver’s side, behind the trim panel.
- Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- Access the Module: Open the trunk and remove the driver’s side trim panel or carpet to expose the FPCM. It’s a small black box with electrical connectors.
- Disconnect and Remove: Carefully unplug the electrical connectors from the old module. Then, unbolt the module from its mounting bracket.
- Install the New Module: Bolt the new, pre-programmed module into place. Reconnect the electrical connectors, ensuring they click securely into position.
- Final Steps: Reinstall the trunk trim panel. Reconnect the negative battery terminal. The vehicle is now ready to start with no further programming needed.
Verified Vehicle Compatibility
This module is a direct-fit replacement for several GM models. It is fully compatible with the original part numbers 20831727, 20831728, and 20875846. Please provide your VIN upon purchase to ensure we send a perfectly matched and programmed part for your specific vehicle.
- 2010 Chevrolet Camaro (Fuel Pump Control Module)
- 2010 Chevrolet Equinox (Fuel Pump Control Module, located in LH rear compartment)
- 2010 GMC Terrain (Fuel Pump Control Module, located in LH rear compartment)
By choosing this pre-programmed 2010 Camaro Fuel Pump Control Module, you are not just buying a part; you are buying a complete, hassle-free solution that restores your vehicle’s fuel delivery system to its factory specifications.
Frequently Asked Questions
Why do I need to provide my VIN?
Your VIN is essential for us to program the module with the correct, vehicle-specific software and calibrations from GM. This ensures perfect compatibility and function without requiring a trip to the dealer, saving you time and money.
Is this part difficult to install?
For most individuals with basic tools and mechanical knowledge, this is a straightforward installation. Since the module comes pre-programmed, the process involves simply locating the old module, swapping it with the new one, and reconnecting the battery.
What happens if I install it without programming?
An unprogrammed FPCM will not operate your fuel pump correctly, and your vehicle will likely not start or run properly. Our pre-programming service makes the part ready for installation right out of the box.
Where is the FPCM located on a 2010 Camaro?
On the 2010 Chevrolet Camaro, the Fuel Pump Control Module is typically found in the trunk, mounted behind the trim panel on the driver’s (LH) side.
Will this fix a P069E trouble code?
Yes, the DTC P069E (Fuel Pump Control Module Requested MIL Illumination) is a very common code indicating a fault within the FPCM itself. Replacing the module is the standard and effective repair for this code.
