Restore Control and End Electrical Frustration in Your GM SUV

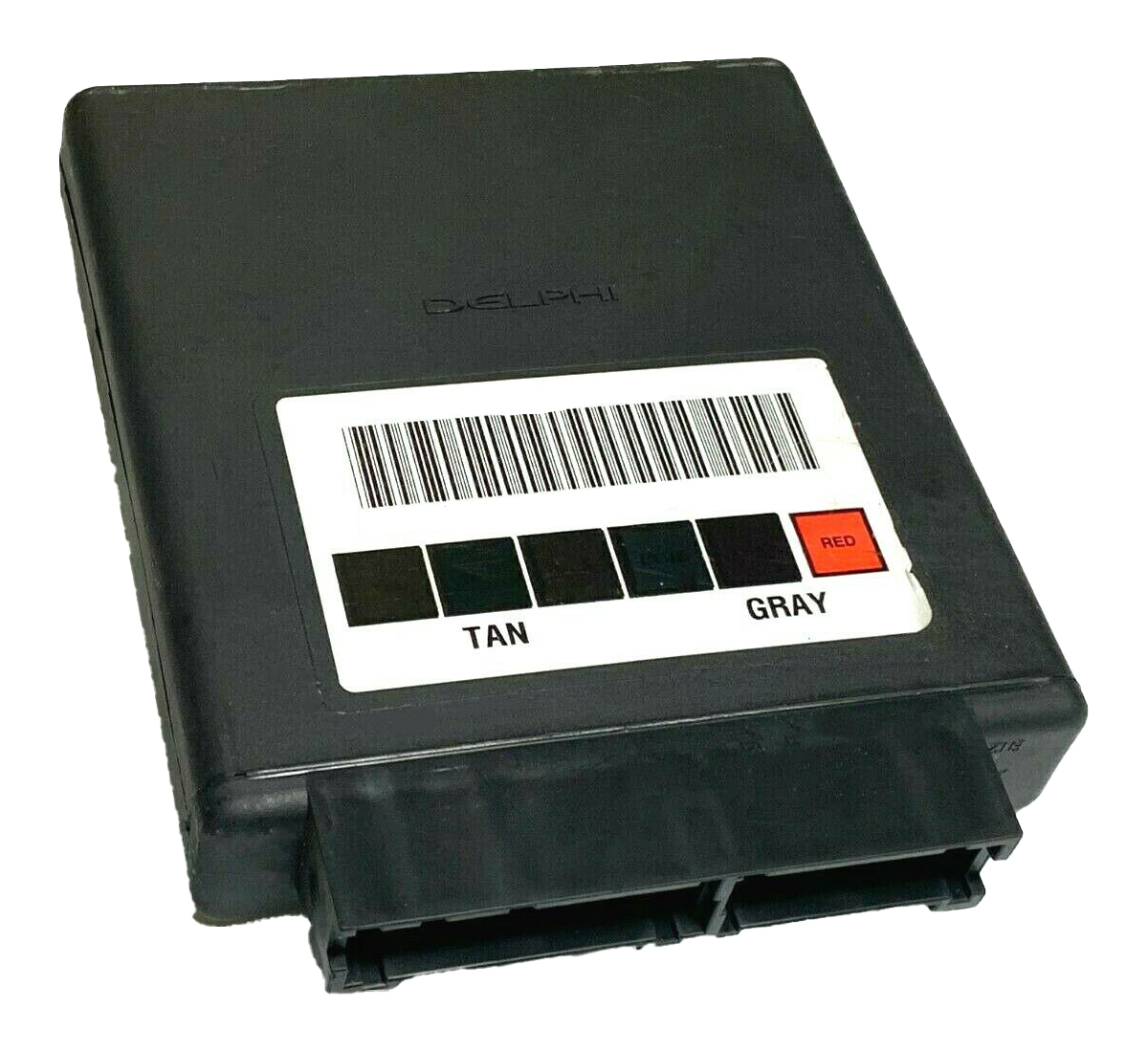

Are you dealing with baffling electrical issues in your Trailblazer, Envoy, or other GM SUV? One moment the power windows work, the next they don’t. Maybe your dash lights are flickering, the radio cuts out, or the door locks have a mind of their own. These aren’t just annoyances; they’re classic signs of a failing Body Control Module (BCM). As the central command for your vehicle’s body electronics, a faulty BCM can wreak havoc. This replacement 2002-2005 GM SUV BCM is the definitive solution, arriving pre-programmed to your vehicle’s VIN for a straightforward installation.
Common Signs of a Failing BCM
- ✔ Intermittent or non-functional power windows, door locks, or mirrors.
- ✔ Erratic instrument cluster behavior, including dead gauges or flickering warning lights.
- ✔ Interior or exterior lights that stay on or won’t turn on at all.
- ✔ The security system acting up or preventing the vehicle from starting.
- ✔ Communication errors with other modules, often triggering codes like U0140 (Lost Communication With Body Control Module).
- ✔ A/C and climate control systems not responding to commands.
A Technician’s Notebook: The Case of the Haunted Trailblazer
I remember a 2004 Trailblazer that came into my shop with a list of symptoms that sounded like a poltergeist had taken up residence. The horn would honk randomly, the interior lights would flicker while driving, and the driver’s window was stuck down. The owner had replaced the battery and checked all the fuses. After connecting my scan tool, I found a dozen communication codes all pointing back to one culprit. The BCM, located right by the fuse box under the rear seat, had clear signs of water damage from a leaky seal. This is a common failure point I’ve seen on over 100 of these GMT360 platform vehicles. We installed a VIN-programmed BCM just like this one, and every single electrical gremlin vanished. It’s a testament to how critical this single component is to the vehicle’s entire operation.
Your Straightforward Guide to Installation
- ✔ Safety First: Always disconnect the negative terminal from your vehicle’s battery before starting any electrical work.
- ✔ Locate the BCM: On most of these SUVs (Trailblazer, Envoy, etc.), the BCM is part of the rear fuse block assembly, typically located under the rear driver’s-side seat. For the Envoy XUV, it’s near the rear floor panel.
- ✔ Access the Module: You may need to remove a seat cushion or trim panels to get clear access to the fuse block/BCM assembly.
- ✔ Disconnect and Remove: Carefully unplug all the electrical connectors from the BCM. They have locking tabs, so be gentle. Once disconnected, unbolt or unclip the old module from its mounting position.
- ✔ Install the New BCM: Mount your new, pre-programmed BCM in the same location. Reconnect all electrical connectors, making sure they click securely into place.
- ✔ Final Steps: Reinstall any panels or seats you removed. Reconnect the negative battery terminal. Turn the key to the ‘ON’ position for 30 seconds before starting the engine to allow the systems to initialize.
Important Post-Installation Information: While this module is programmed for your vehicle, some systems may require a ‘handshake’ after installation. If your airbag light is on, a professional scan tool is needed to perform the ‘Setup SDM Primary Key in BCM’ procedure. Additionally, some models may require a Brake Pedal Position Relearn for proper brake light and traction control function. Always consult a factory service manual for vehicle-specific details.
Verified Vehicle Compatibility
This BCM is a direct replacement for part numbers 15065293, 15122670, 15114669, 15191621, and 9352135. It is guaranteed to fit the following models (without factory security system unless specified):
- Buick Rainier: 2004-2005
- Chevrolet Trailblazer & Trailblazer EXT: 2002-2005
- GMC Envoy, Envoy XL, Envoy XUV: 2002-2005
- Isuzu Ascender: 2003-2005
- Oldsmobile Bravada: 2002-2004
- Saab 9-7X: 2005
Frequently Asked Questions
Why do you need my VIN?
Your Vehicle Identification Number (VIN) allows us to program the BCM with the exact software and settings your vehicle had from the factory. This ensures all your vehicle’s specific options (like power seats, sunroof, etc.) work correctly and makes installation a simple plug-and-play process without a trip to the dealer.
Is this a difficult part to install myself?
For someone with basic mechanical skills, this is a very manageable job. The main challenge is accessing the module’s location. Since we handle all the programming, you won’t need any special electronic tools for the core installation. Just follow our guide and take your time.
What if my airbag light comes on after installation?
This is a known possibility. The new BCM needs to be electronically introduced to the airbag system’s computer (SDM). This requires a ‘Setup SDM Primary Key in BCM’ procedure, which can be done by any professional mechanic with a capable bi-directional scan tool.
Do I need to return my old BCM?
No, there is no core charge for this part. You can keep your original module, which saves you the time and expense of shipping it back.
Will this fix my specific problem?
This 2002-2005 GM SUV BCM is the solution for a wide range of electrical issues. If your vehicle’s symptoms match the common failure signs we’ve listed, there is a very high probability that this module will resolve them. Proper diagnosis is always key to a successful repair.
